In the world of batch fermentation, adding all the nutrients at once is like asking microorganisms to run a marathon without any additional supplies. The result is often the same: they sprint too hard in the early stage and run out of energy later on. Fed-batch fermentation was developed precisely to address this challenge. By intermittently or continuously adding fresh culture medium during the fermentation process, it provides microorganisms with a form of “smart energy replenishment” to sustain high productivity over an extended period.
Feeding Strategies: An Evolution from Simple to Sophisticated
In the early days, feeding was largely based on the experience of skilled operators, with nutrients added at predetermined times and quantities. While simple, this approach offered limited control over the fermentation process. In modern industrial fermentation, feeding has evolved into a sophisticated process-control system:
By feeding mode: continuous feeding, intermittent feeding, and multi-cycle feeding.
By the components added: complete feeding, in which the full culture medium is replenished, and semi-batch feeding, in which only key nutrients are supplied
By control logic: open-loop control based on predefined programs and closed-loop feedback control based on real-time process information. The latter can be further divided into direct control based on concentration measurements and indirect control based on parameters such as pH and DO.
By reactor configuration: single-stage feeding and multi-stage feeding.
By volume change: variable-volume feeding and constant-volume feeding.
What Should Be Fed? — Five Major Categories of Nutritional “Fuel”
Feeding is not simply about adding nutrients randomly. During critical stages of product formation, specific nutrients are supplied according to the metabolic requirements of the microorganism.
Energy and carbon sources: such as glucose and starch, which provide the energy required for cellular metabolism and product synthesis.
Nitrogen sources: such as peptone, yeast extract, and ammonia, which provide nitrogen for protein and product synthesis.
Trace elements and inorganic salts: such as phosphates and magnesium sulfate, which serve as cofactors for metabolic enzymes.
Enzyme-inducing substrates: used in enzyme-producing fermentation. Adding specific substrates can significantly increase enzyme production.
Precursors: such as phenylacetic acid in penicillin fermentation, which can directly serve as a building block for product synthesis.
Why Is Feeding Necessary? — Four Key Advantages
1. Achieving high-cell-density cultivation
Target biomass concentrations can reach 60–150 g/L, while the nutrients required may be 2–5 times the biomass level. Adding all nutrients at once can inhibit cell growth, whereas controlled feeding maintains nutrients at optimal concentrations and supports the continuous expansion of the microbial population.
2. Mitigating inhibition caused by toxic substances
Some essential precursors, such as methanol and phenylacetic acid, can also be toxic to cells. By adding them continuously at a controlled low rate, their concentrations can be maintained within a safe range, satisfying the requirements for product synthesis without damaging the cells.
3. Relieving metabolic repression
Excessive glucose can repress the synthesis of various enzymes, such as cellulases and proteases. By controlling the glucose concentration through feeding, catabolite repression can be relieved, allowing cellular metabolism to proceed more efficiently.
4. Automatically maintaining optimal process conditions
Adding carbon or nitrogen sources can help regulate fermentation pH in a gradual and stable manner. Controlling the feeding rate can also prevent oxygen-transfer limitations caused by excessively rapid cell growth and can improve the rheological properties of the fermentation broth.

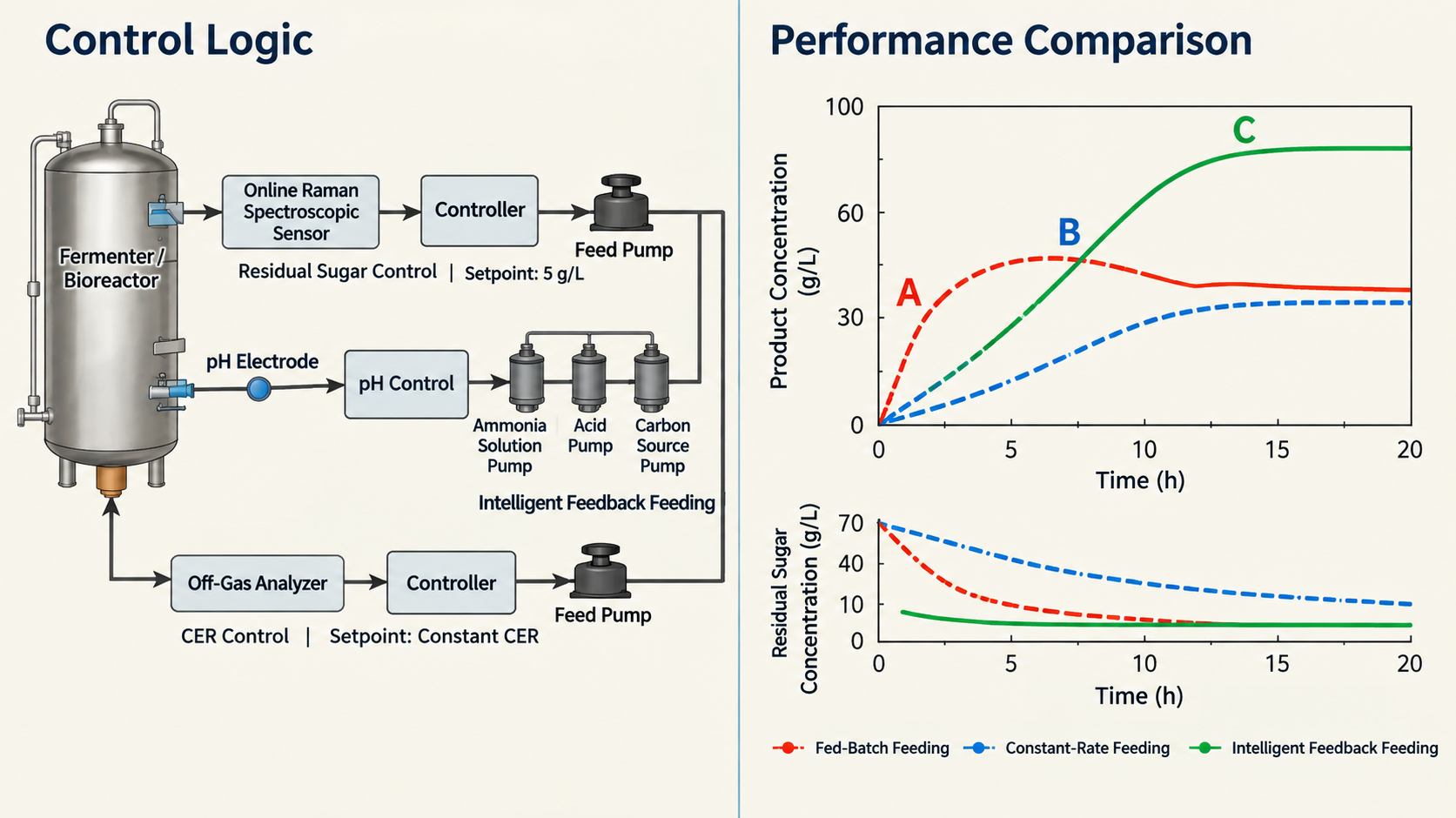

How Can Feeding Be Precisely Controlled? — Two Major Strategies
The core of feeding control lies in two questions: what to feed and how to feed it. The control strategy determines the level of intelligence and precision that can be achieved.
A. Open-Loop Control — Following a Predefined Plan
Constant-rate feeding: The simplest approach, but nutrient concentration and the specific growth rate of the biomass will continuously decline.
Variable-rate feeding: The feeding rate is increased stepwise to better match the changing requirements of the microorganisms.
Exponential feeding: The feeding rate increases exponentially to maintain a constant specific growth rate (μ), allowing the biomass to grow exponentially. It is widely regarded as an effective predefined feeding strategy.

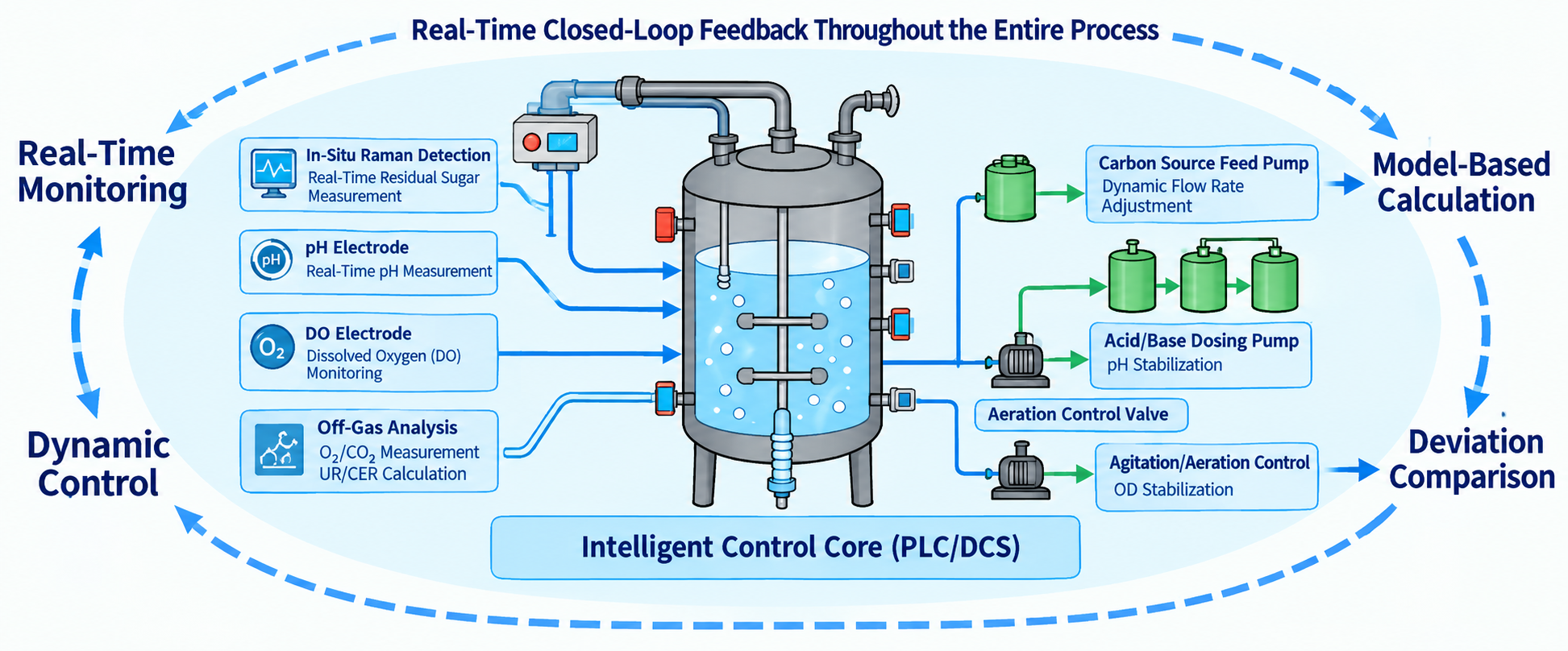

B. Feedback Control (Closed Loop) — Adapting in Real Time
This is the core of advanced feeding control. Online measurements are used to adjust the feeding strategy in real time.
Based on directly measured process parameters: For example, sudden changes in pH or dissolved oxygen (DO) can automatically trigger feeding.
Based on substrate concentration: Online monitoring of nutrient concentrations such as glucose allows them to be maintained within a defined target range.
Based on specific growth rate (μ): Data such as the oxygen uptake rate (OUR) can be used to estimate μ, which is then used to control the feeding rate.
Based on off-gas analysis: Monitoring the carbon dioxide evolution rate (CER) provides an indicator of metabolic activity that can be used to regulate feeding.
Based on cell morphology: Imaging sensors can identify changes in mycelial morphology and use them as signals to trigger feeding adjustments.
Intelligent algorithm-based control: Technologies such as fuzzy control and artificial neural networks (ANNs) can be applied to process complex nonlinear relationships in fermentation, enabling more advanced prediction and control.
Conclusion and Outlook
Feeding strategies are a key tool for controlling microbial metabolism and unlocking the production potential of microorganisms. Selecting the appropriate feeding components, timing, and feeding strategy can have a decisive impact on fermentation performance.
At present, feedback-controlled feeding is emerging as an important direction for advanced fermentation because of its precision and reproducibility. However, its widespread adoption is still constrained by the limited availability of reliable and robust online sensors. As our understanding of microbial physiology continues to deepen, sensing technologies advance, and artificial intelligence becomes increasingly integrated with process-control theory, fed-batch fermentation is expected to become smarter, more efficient, and more widely adopted, continuously supporting the transformation and upgrading of the biomanufacturing industry.table and reliable spectral
