RS3200 Dual-Wavelength Raman Spectrometer
Low-fluorescence performance: Near-infrared dual-wavelength excitation effectively suppresses fluorescence interference.
Wide spectral range with high resolution: 100-3900 cm-1，, resolution up to 6 cm-1.

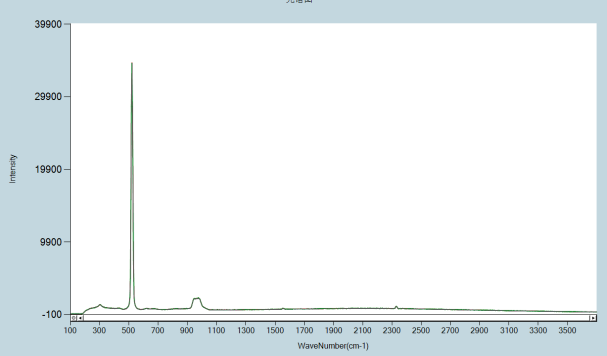

High throughput & high signal-to-noise ratio: Transmission-mode spectrometer (VPH volume-phase holographic transmission grating) paired with -70 °C scientific deep-cooled camera for ultimate sensitivity and SNR. Silicon wafer signal >20000 within 1 s acquisition (30 mW excitation power).
High stability: Built-in compact anti-vibration platform to protect internal optical path.

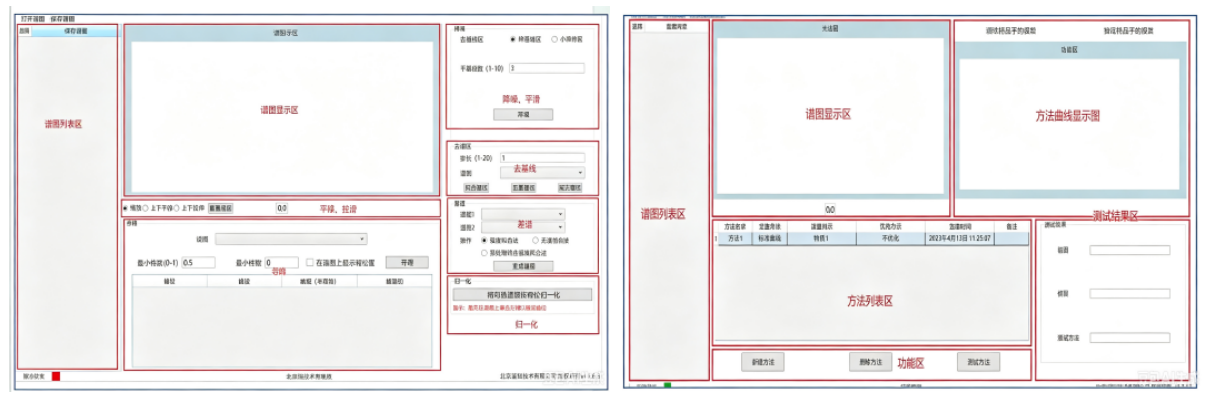

Powerful software toolkit: Rich functions including data acquisition, spectral smoothing, noise reduction, spectral subtraction, spectrum comparison, and quantitative-analysis method development.
Versatile sampling accessories: Solid-sample sleeve, liquid-sample sleeve and closed measurement chamber are supplied for testing solids, powders, liquids and other sample forms.
1. Materials analysis
2. Polymorph / crystal-form investigation
3. Fundamental scientific research
|
Item |
Parameter |
|
Excitation Wavelength |
Dual-wavelength: 730 nm & 830 nm |
|
Output Optical Power |
< 500 mW |
|
Spectral Range |
100-3900 cm-1 |
|
Spectral Resolution |
Better than 6 cm-1 (50 μm slit) |
|
Main Unit Weight |
< 20 kg |
|
Wavelength Stability |
Better than 0.01 nm |
|
Detector |
Scientific-grade deep-cooled camera |
|
Spectrometer |
Transmission-type high-throughput spectrometer |
|
Standard Accessories |
Solid-sample sleeve, liquid-sample sleeve, light-tight sample cell |
|
Optional Accessories |
Microscope, motor-adjustable sample stage |
|
Software Functions |
Spectrum acquisition, spectral data processing, spectrum comparison, instrument calibration |
|
Operating Environment |
Operating temperature: 0-40 ℃; Storage temperature: -20-55 ℃ |
|
Export Data Format |
Selectable: SPC, TXT, PRN and other formats |
|
Power Supply |
100-240 VAC, 50-60 Hz |
