Have you ever wondered whether light—something we see every day yet can never grasp—might possess a unique "fingerprint," much like each of us? That fingerprint is the spectrum. It is not only proof of light's identity but also the "codebook" that scientists use to explore the material world. Today, let's demystify the spectrum.
01 What Is a Spectrum? Light's "ID Card"

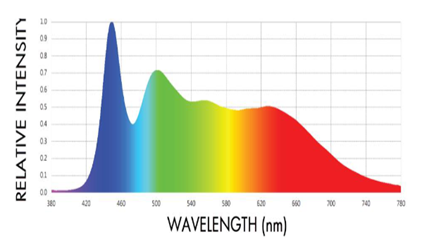

Simply put, a spectrum is a "composition report" of light. It tells us which colors of light (i.e., which wavelengths) are contained in a beam of light, and how intense each color is.
Horizontal axis (X-axis): Represents wavelength, with the unit being nanometers (nm). This is akin to "verifying the identity" of light—telling us what it is. From high-energy ultraviolet light, to the seven colors of visible light we can see, to low-energy infrared radiation—all are plotted on this axis.
Vertical axis (Y-axis): Represents intensity. This is analogous to "weighing" the light—telling us how much of it is present.
For any light source—whether the sun, a light bulb, a laser, or light emitted by excited matter—the curve of light intensity versus wavelength is its spectrum. Just as a fingerprint identifies a person, a spectrum allows us to identify the type of light source and even analyze the composition of the emitting substance.
02 How Is a Spectrum Produced? From "Mixed Pigments" to a "Dispersing Prism"
Imagine a beam of white light, like a tube of squeezed-out white paint. In reality, it is a mixture of many colors—red, orange, yellow, green, blue, indigo, and violet. How do we separate them? This requires dispersion technology.
Dispersion of light: This is the core principle of a spectrometer. When polychromatic light (such as white light) passes through a special optical element called a grating (or prism), different wavelengths are refracted at different angles and thus travel in different directions. They are spatially "spread out" like a rainbow, forming a color band from violet to red.

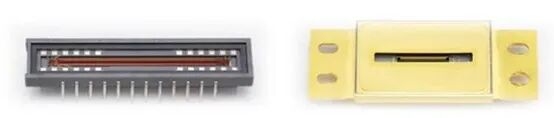

Detection and recording: This separated light band illuminates a component called a detector (commonly CCD or CMOS). Each pixel of the detector is responsible for receiving light of a specific wavelength and converting its intensity into an electrical signal. Finally, a computer processes these signals into the "intensity vs. wavelength" curve we see—the spectrogram.
03 The Spectrum "Family": More Than One Type of "Fingerprint"
Different modes of interaction between light and matter produce different types of spectra, much like fingerprints have different patterns:
Emission spectrum: Produced when a substance emits light itself. For example, the hot sun, LED lamps, and lasers all have their own unique emission spectra—like their "birth certificates."
Absorption spectrum: When light passes through a substance (such as a solution or gas), specific wavelengths are "absorbed" (eaten) by the substance, leaving dark lines on what would otherwise be a continuous spectrum. This is like the substance stamping its own exclusive seal on light's "ID card." In water quality testing, measuring COD and total nitrogen uses the characteristic absorption of water samples in the ultraviolet region to calculate concentrations.
Scattering spectrum: When light collides with matter and changes direction, spectra such as Raman spectra and fluorescence spectra are produced. These provide finer structural information about molecular vibrations, rotations, and more—like reading a substance's "molecular ID card." They are widely used in chemistry, biomedicine, and materials science.
04 How Is a Spectrum "Read"? The "Alchemy" of a Spectrometer
The instrument that reads spectra is a spectrometer. It acts like a silent "alchemist," transmuting invisible photons into tangible data. This process consists of four main steps:
Mining "ore of light": The pixels on the detector act like tiny "crucibles," responsible for receiving photons and converting them into electrons (charge). Different detectors (such as silicon-based CCD and InGaAs) are good at mining different "veins" (spectral ranges), from ultraviolet to near-infrared and even longer wavelengths.
Quenching and accumulation: By controlling the exposure time, charge accumulates within the pixels. The longer the time, the stronger the signal—but overexposure (the "crucible" overflowing) must be avoided.
Refining and purification: The accumulated charge is read out in an orderly manner and converted into a voltage signal. Different detector technologies (such as CCD's pipelined readout and CMOS's distributed readout) each have their own strengths at this stage.
Measurement and calibration: The voltage signal is amplified and finally "transmuted" by an analog-to-digital converter (ADC) into digital values (e.g., grayscale values from 0 to 65,535), which are transmitted to a computer via interfaces such as USB—becoming "data gold" ready for analysis.
05 Applications of Spectroscopy: From the Stars to the Dinner Table
Spectroscopic technology has permeated nearly every aspect of our lives:
Exploring the universe: Analyzing the spectra of stars reveals their composition, temperature, and motion.
Safeguarding health: Raman spectroscopy is used for pharmaceutical ingredient testing and non-invasive blood glucose monitoring; fluorescence spectroscopy is used in biomedical research.
Protecting the environment: UV spectrometers monitor water quality online (COD, total nitrogen); NIR spectrometers measure moisture and protein content in grains.
Industrial quality control: Measuring LED color temperature, display quality, and online inspection of product color and film thickness.
Security and law enforcement: Used for rapid identification of drugs and explosives.
Conclusion: From Newton's discovery of the seven colors of light using a prism, humanity's understanding of spectroscopy has continued to deepen. Today, with sophisticated spectrometers, we can turn light—this "invisible ruler"—into a "tangible key" for deciphering the material world. Every spectral curve tells a hidden story about a substance's composition, structure, or state. The next time you see a rainbow or a beam of light, perhaps you'll pause to think: what rich information and knowledge might be contained within its invisible "fingerprint"?
