Phosphorus pentafluoride (PF₅) is the core raw material for the synthesis of lithium hexafluorophosphate (LiPF₆). Its concentration, purity, and stability of feed rate directly determine the product yield, purity, and free acid control level.

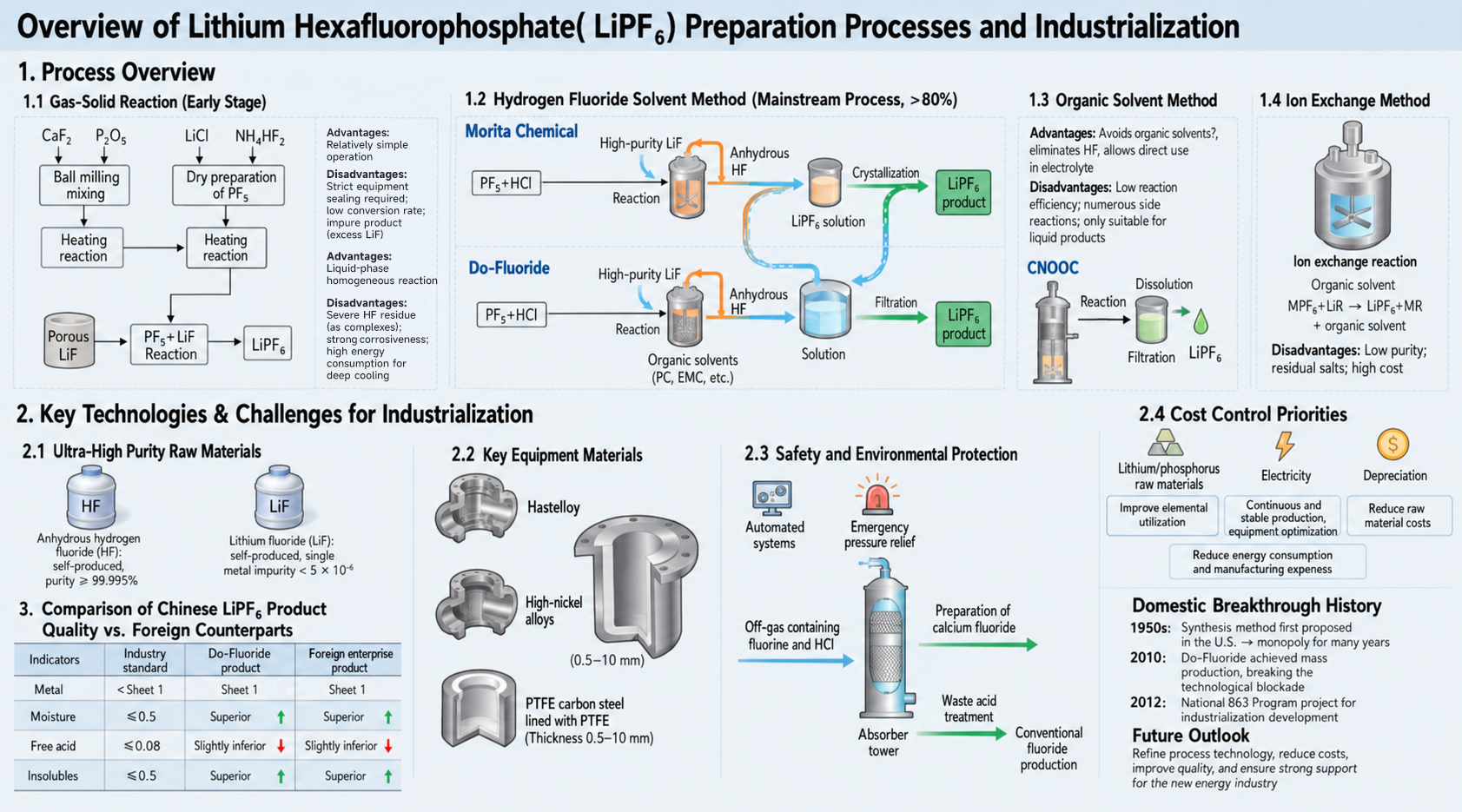

In mainstream processes such as the hydrogen fluoride solvent method and the gas-solid reaction method, online monitoring of PF₅ has long suffered from five major pain points, which have become key bottlenecks restricting the stable production of high-quality LiPF₆.
01 Strongly Corrosive Environment Leads to Rapid Sensor Failure
PF₅ often coexists with anhydrous HF and HCl, constituting a highly corrosive system. Conventional metal and quartz optical probes are easily eroded, resulting in drift, short circuits, or fractures. Although corrosion-resistant materials such as PTFE and Hastelloy offer good resistance, they are costly and difficult to process.
FTIR gas analyzers are commonly used, but their gas cells are prone to damage and require frequent replacement, significantly increasing operation and maintenance costs, making long-term stable online monitoring difficult to achieve
02 Extreme Susceptibility to Hydrolysis Interference, Resulting in Severe Data Distortion
Upon contact with trace amounts of moisture, PF₅ rapidly decomposes into byproducts such as HF and POF₃. This not only disrupts the concentration equilibrium but also generates corrosive species that interfere with the measurement signal.
LiPF₆ production requires a moisture content of less than 10×10⁻⁶. Even minor system leaks or trace water vapor introduced during sampling can cause low readings and high fluctuations, failing to accurately reflect the actual reaction progress.
03 Complex Composition Makes Interference Removal Difficult
The reaction system contains PF₅, HF, HCl, inert protective gases, and small amounts of phosphorus-fluorine byproducts. Conventional electrochemical and optical sensors have poor selectivity for gases and are prone to cross-sensitivity, leading to concentration misjudgment. Offline detection methods involve long sampling and pretreatment cycles, resulting in significant lag that cannot support real-time process control.
04 Accuracy Drift Under High and Low Temperature Conditions
The gas-solid method requires pressurized operation, while the hydrogen fluoride solvent method operates in a cryogenic environment. Temperature fluctuations significantly alter gas density and mass transfer characteristics, causing deviations in monitoring data. Low temperatures reduce sensor activity, while high temperatures accelerate component aging. Achieving stable calibration across a wide temperature range is extremely challenging, making it difficult to meet the stringent quality control requirements for electronic-grade products.
Key technical requirements include: corrosion-resistant material selection, high-selectivity sensing, moisture-resistant calibration, wide-temperature compensation, and online integration.
05 Limited Online Solutions, Heavy Reliance on Offline Analysis

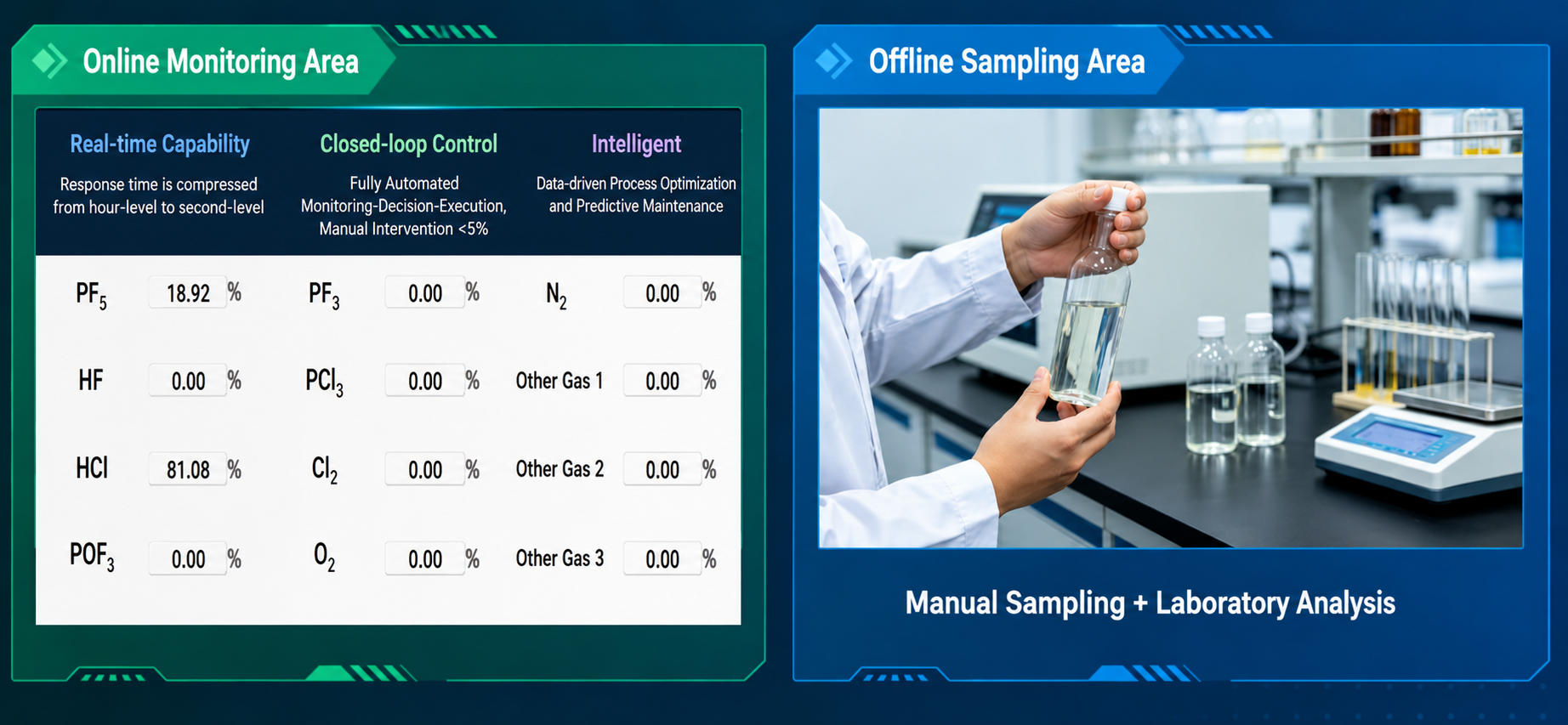

Domestically, there is a lack of PF₅-specific online monitoring equipment suitable for LiPF₆ production. Most operations rely on manual intermittent sampling combined with offline laboratory analysis. The resulting data lag and human errors make it impossible to adjust feed rates in a timely manner, which can easily lead to insufficient or excessive reaction, increased byproduct formation, and raw material waste—trends that run counter to the goals of continuous and automated production.
The five major pain points of PF₅ monitoring directly affect the core quality indicators of the final LiPF₆ product, including free acid, moisture, and metal impurities, as well as overall production quality control costs. Breakthroughs in corrosion-resistant material selection, high-selectivity sensing, moisture-resistant calibration, wide-temperature compensation, and online integration technology are key directions for achieving stable mass production of high-purity lithium hexafluorophosphate and enhancing the competitiveness of domestic materials.
