Fluorine-nitrogen gas, with its highly reactive etching capability and high purity, is widely used in advanced manufacturing processes such as semiconductor wafer etching and precision cleaning of high-end components. The accuracy of gas composition, purity stability, and impurity levels directly affect product yield and production safety.

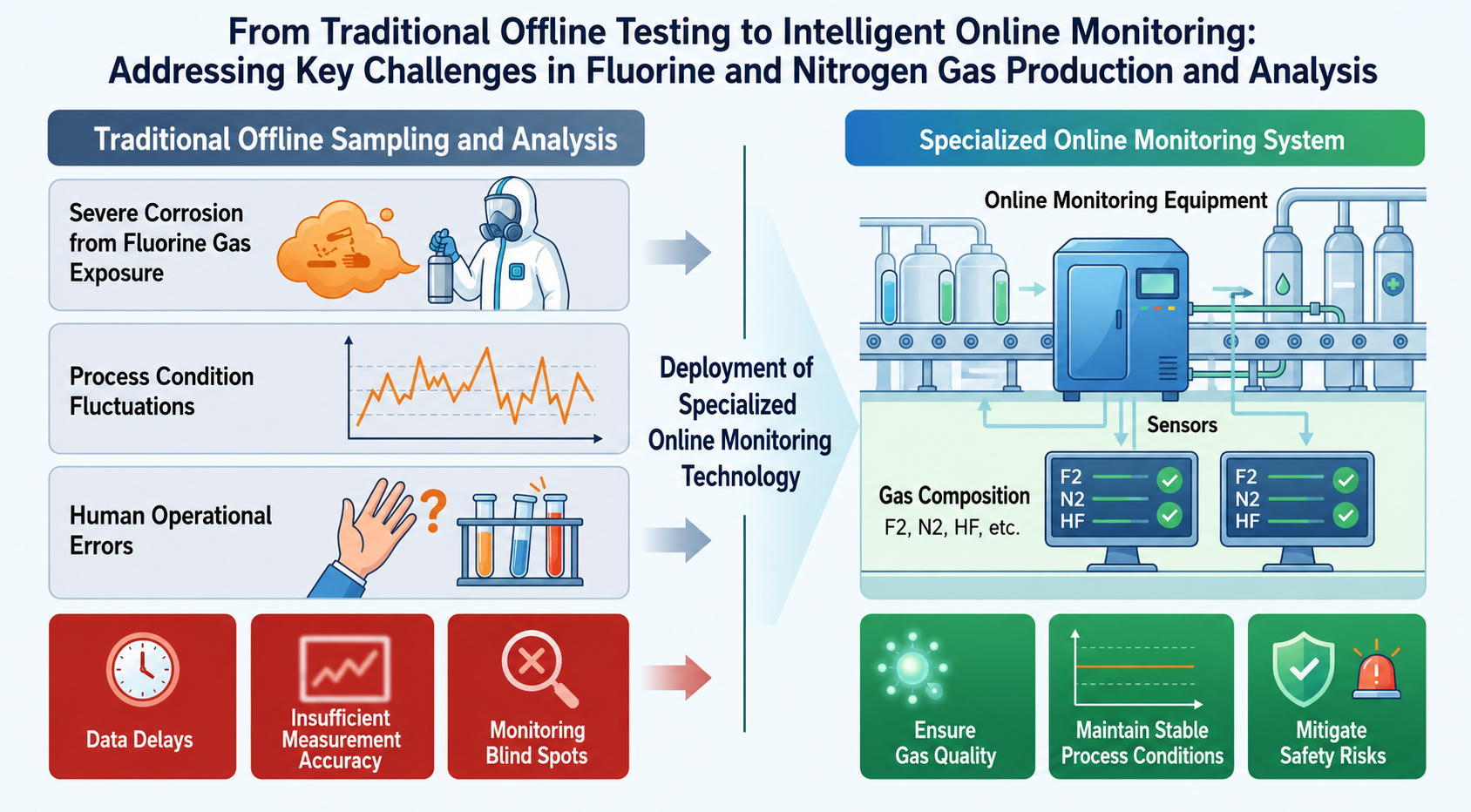

Traditional offline sampling and manual spot-checking methods are constrained by factors such as the highly corrosive nature of fluorine gas, process fluctuations, and human operational errors, resulting in various problems including data delays, insufficient measurement accuracy, and monitoring blind spots. The implementation of specialized online monitoring technology effectively addresses the various analytical challenges encountered during fluorine-nitrogen gas production and has become a key technological approach for ensuring gas quality, maintaining stable process conditions, and mitigating safety risks.
In response to poor measurement stability and rapid equipment degradation caused by the highly corrosive nature of fluorine gas, online monitoring enables continuous operation under demanding process conditions, eliminating many of the limitations associated with manual testing. Traditional testing requires frequent disassembly of pipelines for sample collection. This can easily lead to trace fluorine-nitrogen gas leakage if seals are damaged. Moreover, frequent exposure to corrosive media accelerates equipment aging and causes measurement drift.
Online monitoring systems employ corrosion-resistant, application-specific hardware throughout the sampling and measurement path. Key components such as tubing and sensor components can be constructed from corrosion-resistant materials including PTFE (polytetrafluoroethylene) and Hastelloy to withstand long-term exposure to fluorine-nitrogen gas. The fully enclosed system enables continuous, real-time monitoring without frequent shutdowns for sampling, disassembly, or calibration. This fundamentally reduces equipment wear and the risk of seal leakage, ensuring long-term measurement stability and controlled measurement error while minimizing the safety risks associated with toxic or hazardous gas leakage.
Online monitoring enables dynamic and precise control of gas composition, addressing the composition deviations that can occur with conventional static measurement methods. Fluorine-nitrogen gas is typically produced using low-concentration, trace-level blending. Even small fluctuations in temperature, pressure, or gas flow can cause deviations in the target composition. aTraditional offline analysis only captures the gas composition at the specific moment when a sample is collected and therefore cannot adequately capture dynamic process changes, resulting in significant measurement delays.
An online monitoring system equipped with high-precision sensing modules and dynamic compensation algorithms can continuously acquire key process parameters such as temperature, pressure, gas flow rate, and component concentrations. Changes in the fluorine-nitrogen ratio can be detected and reported within seconds. For small process fluctuations, the system can communicate with upstream gas-mixing equipment and automatically make fine adjustments to process parameters, creating an integrated closed-loop process of: Monitoring → Analysis → Control. This overcomes the limitations of conventional static measurement, which lacks sufficient accuracy and cannot dynamically correct composition deviations, thereby maintaining the target gas composition within specification.
With highly sensitive analytical technology, online monitoring can accurately detect trace impurities and meet the stringent requirements of high-purity gas production. During fluorine-nitrogen gas production, trace impurities such as moisture, hydrogen fluoride (HF), and fluorocarbon by-products may be generated at ppb levels. Fluorine can also undergo secondary reactions with impurities, causing the composition and concentration of impurities to change dynamically. Conventional analytical equipment may have relatively high detection limits and limited resistance to matrix interference, making accurate quantitative analysis of trace impurities difficult.
Next-generation online monitoring systems employ optimized spectroscopic analysis technologies to minimize interference from fluorine molecules, enabling efficient identification and quantification of various trace impurities and accurate detection of subtle changes in impurity concentrations. The system can also continuously track impurity trends and provide early warnings of issues such as adsorbent degradation or purification-unit abnormalities. This provides accurate data to support adjustments to the purification process and helps ensure that high-purity fluorine-nitrogen gas consistently meets the required production specifications.
Full-Process Online Monitoring: Improving Production Continuity and Quality-Control Efficiency.
Fluorine-nitrogen gas production typically involves multiple process units, including adsorption, distillation, gas blending, and gas delivery. These processes involve complex operating conditions and are susceptible to parameter fluctuations. Conventional manual spot-checking is performed at relatively long intervals and inevitably leaves monitoring blind spots, potentially allowing quality issues to affect an entire production batch.
An online monitoring system can continuously acquire, store, and analyze production data 24/7, eliminating monitoring gaps and enabling timely detection of issues such as gas-flow disturbances and abnormal equipment operating conditions. Because frequent shutdowns for calibration and manual sampling are no longer required, production interruptions can be significantly reduced, thereby improving overall production efficiency. With integrated data traceability, the system can maintain a complete record of production parameters. This facilitates root-cause analysis and troubleshooting when abnormalities occur and also supports the stringent quality-control and traceability requirements of advanced manufacturing industries.
Conclusion
In summary, online monitoring technology is highly compatible with the demanding process conditions involved in fluorine-nitrogen gas production.
It effectively addresses key challenges associated with conventional analytical methods, including:
Severe corrosion and measurement interference
Insufficient gas-mixing accuracy
Difficulty in monitoring trace impurities
Delayed analytical data
Limited process visibility and control
At the same time, online monitoring offers advantages in safety, analytical accuracy, continuous operation, and intelligent process control. It is therefore becoming an important technological foundation for the refined, standardized, and large-scale production of fluorine-nitrogen gas.
