Nitrogen trifluoride (NF₃) and fluorine-containing gases such as SF₆, CF₄, and HF are widely used in the semiconductor, fluorochemical, power, and other industries. These gases are characterized by strong corrosivity, high toxicity, and greenhouse effects. Their leakage and emissions pose direct risks to production safety, personnel health, and the ecological environment.
Online detection technology serves as a core foundation for process control, safety warning, and environmental compliance. It is rapidly evolving toward higher accuracy, multi-component detection, and greater long-term stability, becoming a critical enabler of high-quality industrial development.
Current mainstream online detection technologies each have their own suitable applications. Electrochemical sensing offers low cost and fast response, making it suitable for monitoring low-concentration toxic gases such as HF. However, it is susceptible to interference from temperature, humidity, and coexisting gases. Sensors also require periodic replacement, while detection accuracy for inert fluorine-containing gases such as SF₆ and CF₄ is relatively limited.
Infrared spectroscopy (FTIR/TDLAS) detects gases based on their characteristic molecular absorption peaks. TDLAS offers strong anti-interference capability and high accuracy, making it suitable for precise monitoring of individual gases. FTIR enables simultaneous multi-component analysis, but low-concentration measurements can be susceptible to interference from background gases.

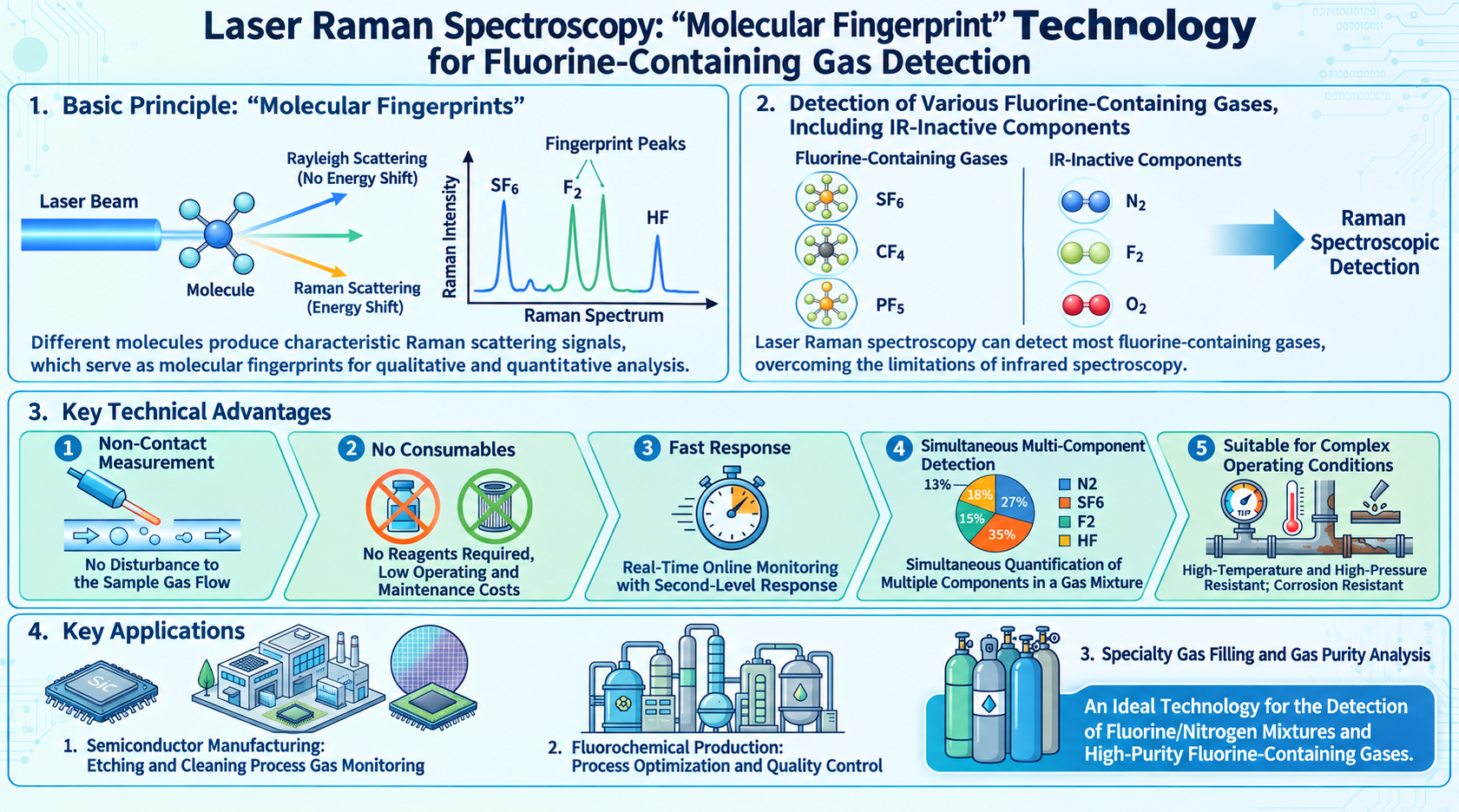

Laser Raman spectroscopy, leveraging the “molecular fingerprint” characteristics of Raman scattering, can detect various fluorine-containing gases, including IR-inactive components. It offers the advantages of non-contact measurement, no consumables, fast response, and simultaneous multi-component detection, while being suitable for complex operating conditions such as high temperature, high pressure, and corrosive environments. It is therefore becoming a preferred technology for the detection of nitrogen trifluoride (NF₃) and high-purity fluorine-containing gases.
RS2600 Online Raman Analyzer from JINSP Company Limited, based on laser Raman spectroscopy, enables second-level, multi-component, in-situ online measurement of F₂ concentration in F₂/NF₃ gas mixtures, with a detection limit down to the ppm level. It is corrosion-resistant, requires no consumables, and is suitable for applications in fluorochemical production, electronics manufacturing, and other industries.

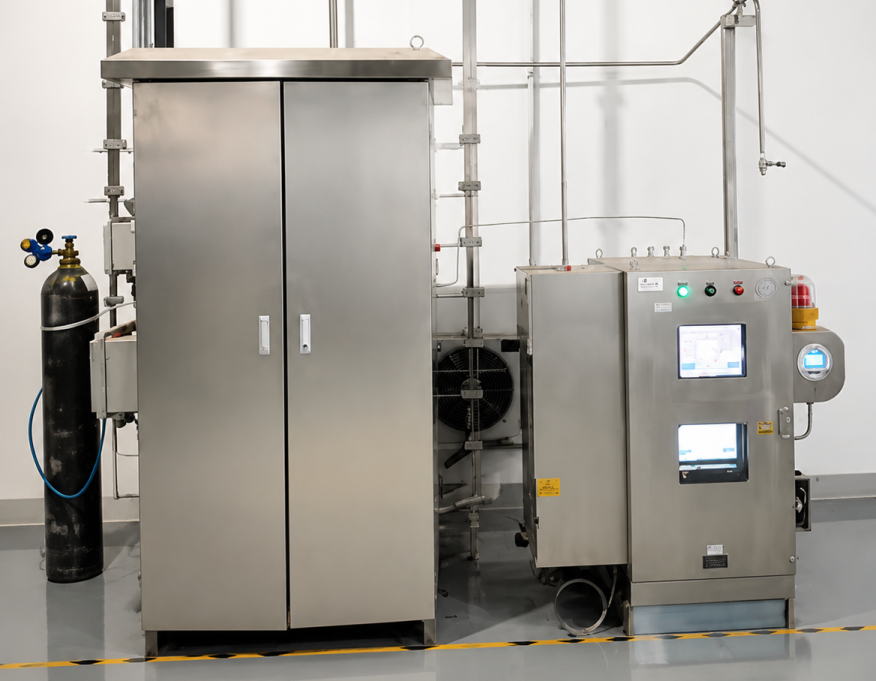

Applications of RS2600 PAT in Industry
The key challenges in the online detection of nitrogen trifluoride and fluorine-containing gases lie in compatibility with highly corrosive media, suppression of multi-component interference, and long-term measurement stability. Gases such as fluorine and HF impose stringent requirements on equipment materials. PTFE (polytetrafluoroethylene), Hastelloy, and other corrosion-resistant materials may be required. In industrial environments where multiple gases coexist, spectral algorithms or optical filtering techniques are needed to eliminate interference.
During long-term operation, issues such as contamination of optical components and sensor aging can cause measurement drift. Optimized sealing designs and intelligent calibration algorithms are therefore required to maintain long-term measurement accuracy and stability.
At the application level: In the semiconductor industry, monitoring focuses on the concentration and composition ratios of process gases such as NF₃ and CF₄, helping ensure the stability of etching and cleaning processes. In the fluorochemical industry, applications cover fluorination and polymerization processes as well as exhaust-gas emission monitoring, helping optimize reaction efficiency and control pollutant emissions. In the power industry, the focus is on monitoring SF₆ insulating-gas leakage and decomposition products to prevent equipment failures. In environmental applications, real-time monitoring of fluorine-containing greenhouse gases and toxic exhaust gases is required to meet increasingly stringent environmental regulations and emission standards.
Future Trends in Online Detection Technology for NF₃ and Fluorine-Containing Gases
In the future, online detection technology for nitrogen trifluoride and fluorine-containing gases is expected to develop in three major directions:
1. Integration of Spectroscopic Technologies: Raman spectroscopy will be combined with infrared and laser-based technologies to achieve a balance between multi-component detection and ultra-high-precision measurement.
2. Intelligent Upgrades: The integration of AI algorithms will enable functions such as fault self-diagnosis, automatic calibration, and data traceability, thereby reducing operation and maintenance costs.
3. Miniaturization and Integration: Equipment will become smaller and more energy-efficient, enabling deployment across a wider range of industrial scenarios and supporting portable monitoring applications.
Online detection technology for nitrogen trifluoride and fluorine-containing gases is a critical foundation for industrial safety, environmental compliance, and intelligent manufacturing. Companies should select the most appropriate technology according to specific operating conditions and establish a comprehensive control system integrating: Real-Time Monitoring → Intelligent Warning → Rapid Response.
This approach can ensure production safety while promoting the green and low-carbon transformation of the fluorochemical industry and related sectors.
