In the world of scientific instruments, the detector plays the role of a silent and magnificent "alchemist" — transmuting invisible photons into tangible data. This journey from light to numbers integrates the wisdom of physics, materials science, and electronic engineering, and lies at the heart of modern sensing technology. Taking the CCD, CMOS, and InGaAs detectors commonly found in spectrometers as examples, let us unveil the mysteries of this "alchemy of light."

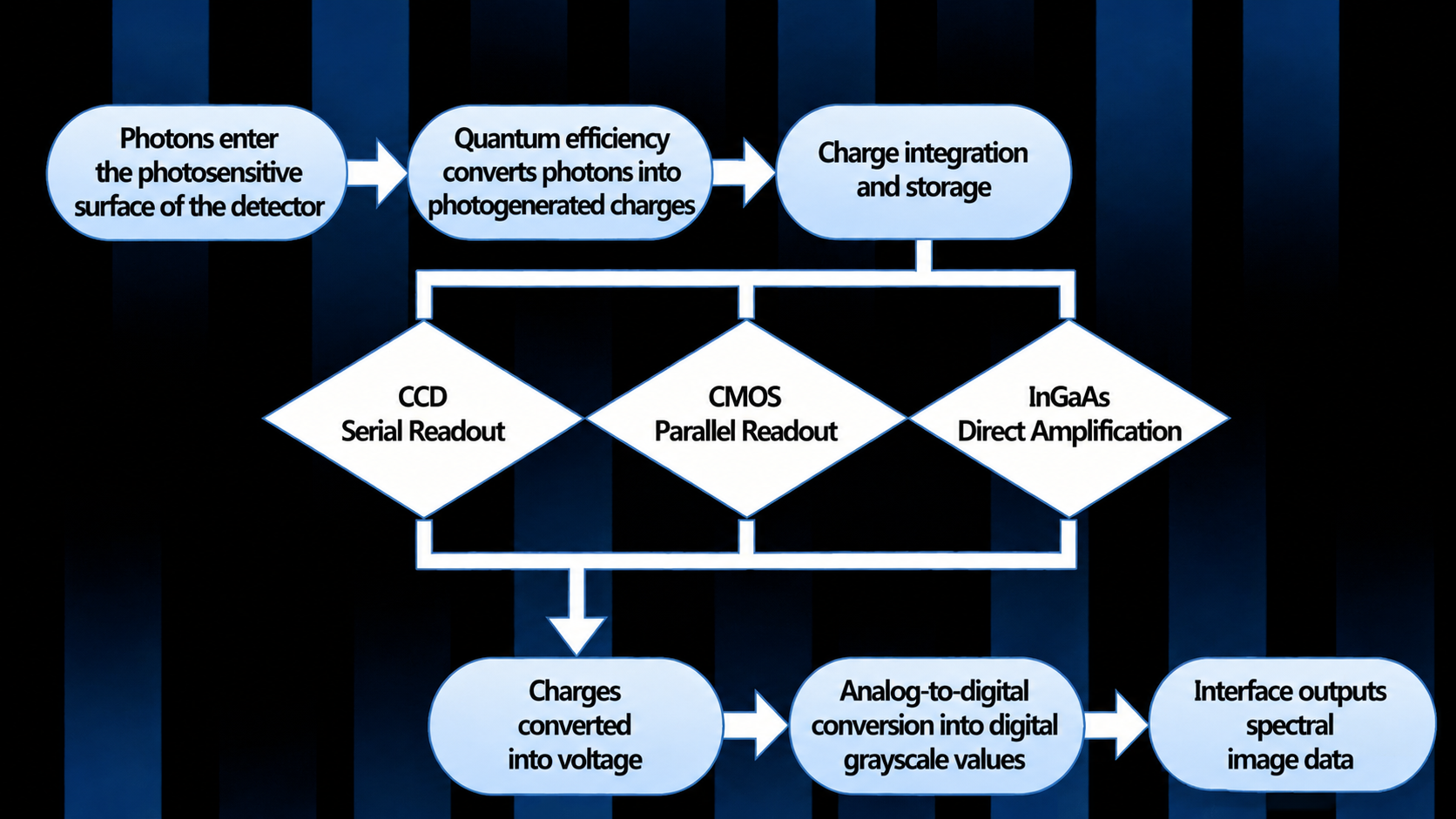

The First Procedure: Mining the "Ore of Light" — Photoreception and Charge Generation
Every alchemical process begins with the collection of raw materials. For a detector, the raw material is photons.

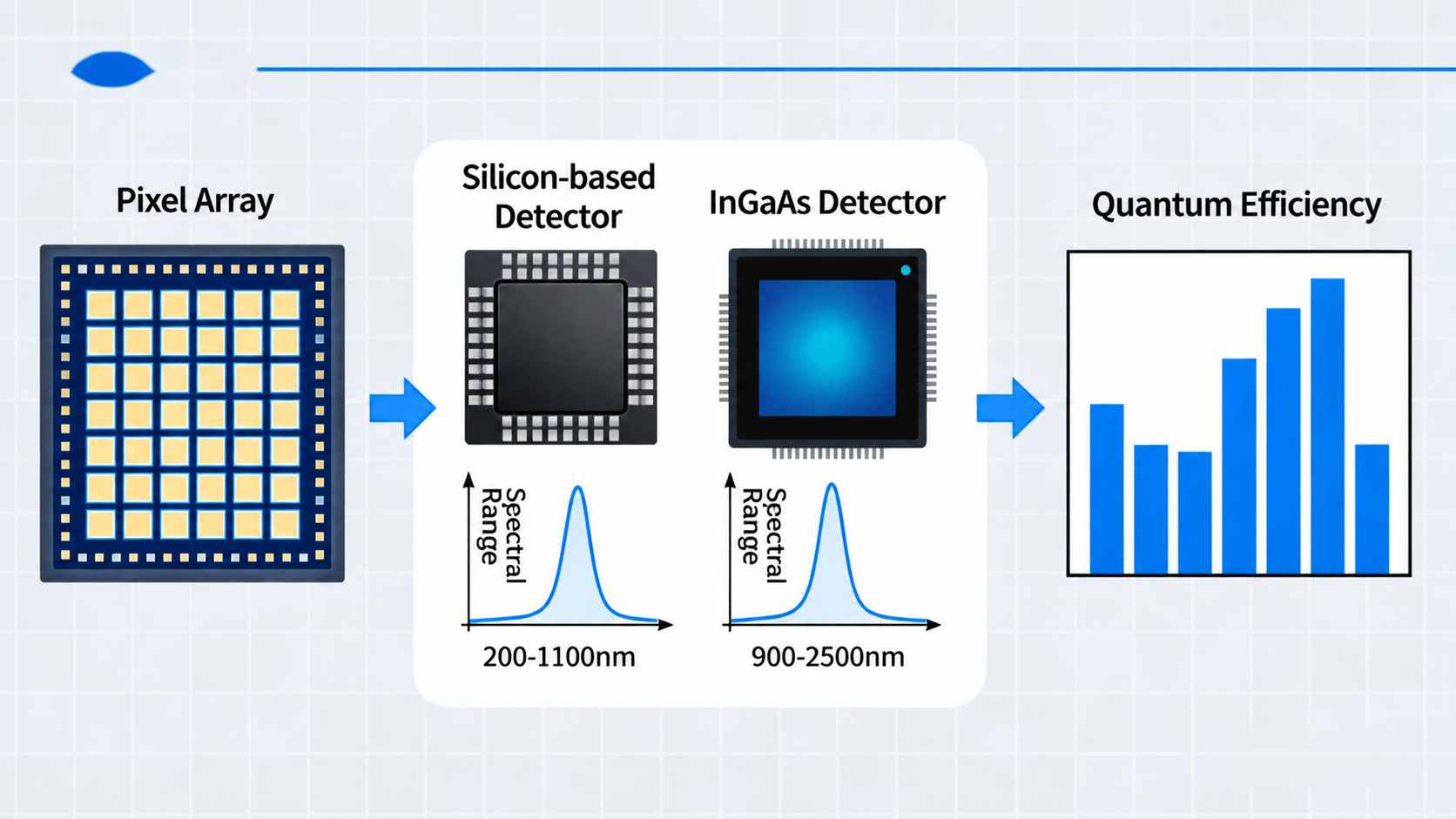

1. The Custom "Alchemical Crucible" — Pixels:
The photosensitive surface of a detector is composed of an array of countless tiny "crucibles" — pixels. Their size and shape determine the efficiency of collection.
2. Identifying the Spectral "Vein":
Different detectors can extract vastly different "veins of light" (spectral ranges).
Silicon-based detectors (CCD/CMOS): excel at extracting the "ultraviolet-visible-near-infrared" vein (approximately 200–1100 nm), covering and extending beyond the human visual range.
InGaAs detectors: specialize in extracting the highly valuable "near-infrared" vein (e.g., 0.9–2.55 µm), used to detect unique information such as water content and chemical bonds.
3. Quantum Efficiency — The Mining Success Rate:
Not every incident photon successfully converts into an electron (charge). Quantum efficiency is this conversion probability. Back-illuminated CCDs, through their sophisticated structure, maintain exceptionally high "mining" success rates across a broad spectral range.
The Second Procedure: Quenching and Accumulation — Charge Integration and Storage
The collected raw materials must undergo quenching and precipitation to consolidate their value.
1. Integration Time (Exposure):
This is the "quenching time" during which charge accumulates within the pixel. The longer the time, the more charge accumulates, representing a stronger optical signal. The electronic shutter function precisely controls the duration of this process.
2. Full-Well Capacity — The Crucible's Limit:
Each pixel "crucible" has its capacity limit. For example, the typical full-well capacity of a certain horizontal pixel can reach 200–300 thousand electrons. This determines the maximum light intensity that a single "smelting" session can handle, preventing signal overflow (overexposure).
The Third Procedure: Refining and Purification — Signal Transfer and Readout
The raw charge must be refined and extracted in an orderly manner. The different schools of "alchemy" diverge here.
1. CCD's "Assembly-Line Refining Method":
CCDs are renowned for their unique charge-coupled technology. The charge packets of all pixels, as if on a precision assembly line, are driven by clock pulses to pass sequentially through vertical and horizontal shift registers, ultimately being delivered to a single output node for unified processing. Their charge transfer efficiency is extremely high (>0.99999), ensuring near-zero loss over long-distance transmission.
2. CMOS's "Distributed Refining Method":
CMOS sensors are more like a modern factory, where each pixel or each column of pixels is equipped with local amplification circuits, and some even integrate A/D converters. Signals are preliminarily processed or directly digitized near their site of generation, then read out in parallel through internal data buses, achieving higher speeds and more flexible functions (such as region-of-interest readout).
3. InGaAs's "Charge-Integration Refining Method":
For example, in InGaAs linear sensors, each pixel is directly connected to a high-performance charge-integration amplifier. This approach is particularly well-suited for processing the relatively weak signals in the near-infrared region, achieving extremely high sensitivity, excellent linearity, and stability.
The Fourth Procedure: Measurement and Calibration — Conversion from Charge to Voltage
The refined "crude product" (charge) must be measured and calibrated, converting it into a standardized voltage signal.
1. Conversion Efficiency (Gain):
This is the "exchange rate" at which the amplifier converts charge value into voltage value. For example:
High-speed type: 8 µV/e⁻ (higher exchange rate, suitable for fast transactions)
Low-noise type: 6.5 µV/e⁻ (stable exchange rate, pursuing precision)
2. Read Noise — The Inherent Error of the Measuring Scale:
This is the unavoidable minute random fluctuation within the entire readout system, and serves as the cornerstone for measuring detector sensitivity. It sets the lowest signal threshold that can be reliably measured.
High-speed CCD: ~23 e⁻-rms (slightly larger error, but faster speed)
Low-noise CCD: ~6 e⁻-rms (extremely small error, high precision)
3. Dynamic Range — The Range of the Measuring Scale:
This is the ratio between the brightest signal and the darkest signal that the detector can accurately measure in a single acquisition. It is jointly defined by the full-well capacity (upper limit) and read noise (lower limit) . For example, a dynamic range of 50,000:1 means it can simultaneously and precisely weigh a grain of sand and a brick.
The Final Presentation: The Philosopher's Stone — Digitization and the Birth of Data
The calibrated standard voltage, in its final step, is "transmuted" into digits, becoming the universal "gold" of the computer world.
1. Analog-to-Digital Conversion (A/D Transmutation):
The analog-to-digital converter (ADC) is the final philosopher's stone. It discretizes the continuous voltage values into discrete digital values (e.g., a 16-bit ADC produces grayscale values from 0 to 65535).
External Transmutation: Traditional CCDs and analog CMOS require external driver circuits to complete this step.
Built-in Transmutation: Modern digital-output CMOS and integrated modules have the philosopher's stone built in, directly outputting digital "gold ingots."
2. Data Output — Gold into the Treasury:
The digitized data is sent via various interfaces into the "treasury" (host computer) for analysis.
USB: General-purpose interface, convenient and fast.
CameraLink: High-speed dedicated channel, meeting the demands of large data-volume transmission.
Conclusion: The Ultimate Product of Alchemy — Knowledge
When the digits from countless pixels are combined into a spectrum, an image, or a three-dimensional data volume, this grand "alchemy of light" is complete. Its ultimate product is not precious metal, but knowledge:
A spectral curve reveals the composition of a star or the purity of a pharmaceutical.
An online scanning image ensures the non-destructive quality inspection of industrial products.
A near-infrared distribution map guides precision agriculture in water management.
From CCD's charge relay, to CMOS's parallel processing, to InGaAs's integration amplification, each detector, with its unique "alchemical philosophy," perfectly transmutes ethereal photons into the solid and reliable foundation of data.
