At the core of the spectrometer—the "light decoder"—lies a critical component that determines its performance: the grating. It serves as the spectrometer's "heart," responsible for precisely "splitting" mixed polychromatic light into monochromatic light of different colors. Today, we will discuss the two core "hearts" of spectrometers: reflective gratings and transmissive gratings. How do they differ, and how should you choose between them?

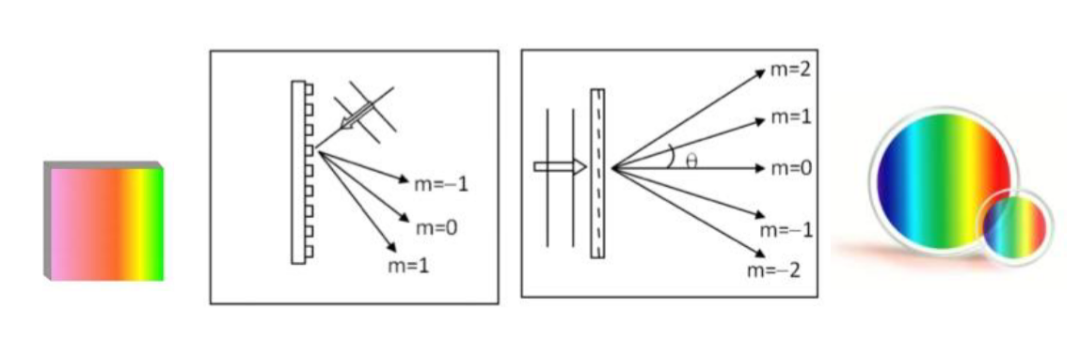

01 Appearance and Structure: One "Looks in a Mirror," One "Passes Through Glass"
Imagine you need to separate a beam of white light (like mixed rainbow candies) by color.
Reflective Grating: It works like a "magic mirror" etched with precision grooves. When light strikes these groove surfaces, diffraction and reflection occur, and different colors of light are reflected at different angles, thereby being separated. It is commonly used in reflective spectrometers.
Transmissive Grating: It is more like a piece of "smart glass" with holographic patterns engraved internally. Light passes directly through this glass, undergoes diffraction internally, and emerges already separated by color. It is primarily used in transmissive spectrometers.
In simple terms: one disperses light by "reflection," the other by "transmission."

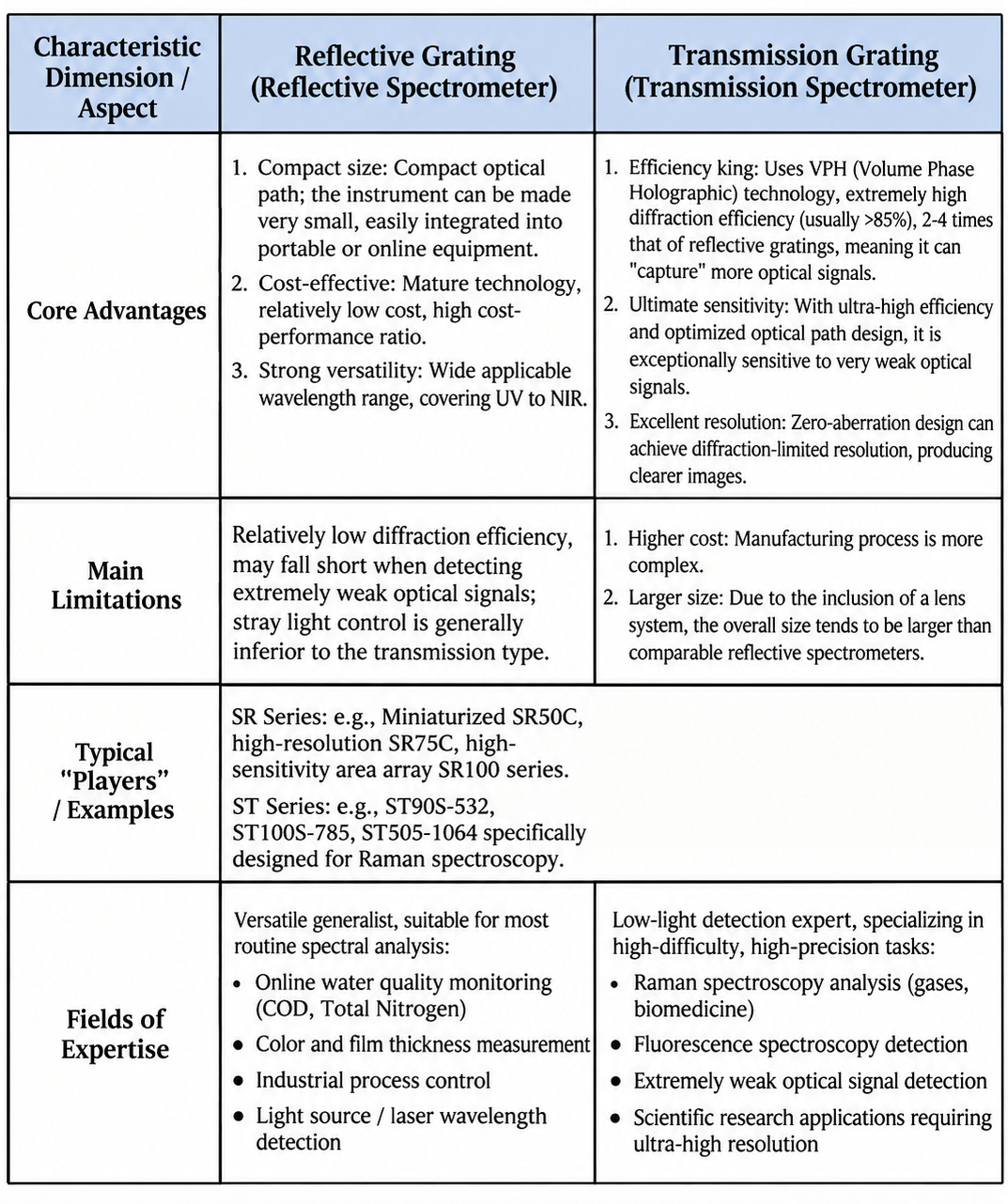

02 Performance Comparison: Each Excels in Its Own Domain
These two types of "hearts" bring distinctly different performance characteristics, directly determining the application scenarios of the spectrometer.
03 Real-World Performance: Data Speaks
Taking Raman spectroscopy as an example—this is an application with extremely high sensitivity requirements. According to test data from JIANZHI Technology: when using the same detector, transmissive spectrometers based on VPH transmissive gratings (such as the ST100S-785) achieve sensitivity 5 to 10 times that of reflective spectrometers.
This means that when detecting low-concentration samples, transmissive spectrometers can obtain Raman spectra with higher signal-to-noise ratios and greater clarity, making it easier to detect weak characteristic peaks.
04 How to Choose? Remember These Three Points!
Faced with these two types of spectrometers, the choice is not difficult—it all depends on your needs:
Seeking compactness, cost-effectiveness, and versatility? → Choose reflective!

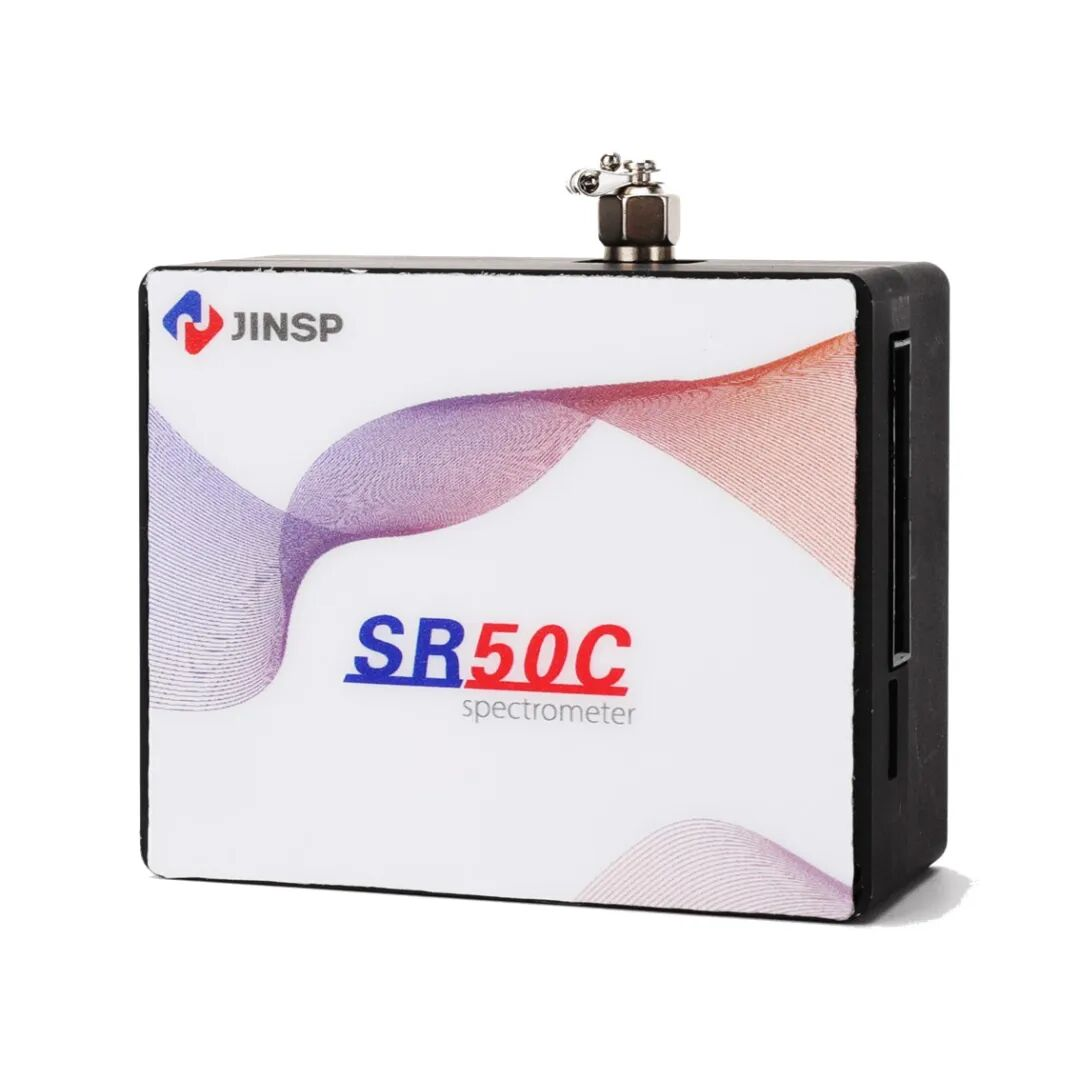

For example, if you need to integrate into portable water quality detectors, online industrial sensors, or perform routine absorbance and reflectance measurements, reflective spectrometers such as the SR50C and SR75C are reliable and cost-effective choices.
Seeking ultimate sensitivity and ultra-high resolution? → Choose transmissive!
If your experimental targets have extremely weak signals (such as trace gas Raman detection, single-cell fluorescence), or if you need to resolve very closely spaced spectral peaks (such as in research-grade Raman analysis), then transmissive spectrometers like the ST90S and ST100S will be your capable assistants.
Simple Summary:
Reflective is like a multi-functional Swiss Army knife—lightweight, easy to use, and capable of handling most everyday scenarios.
Transmissive is like a high-precision professional microscope—compromising on size and cost to see more clearly and in finer detail, purpose-built for tackling challenging problems.
Conclusion
Whether "reflective" or "transmissive," both represent the wisdom of humanity in harnessing light and decoding material information.
There is no absolute right or wrong, only what is suitable. Understanding their differences is like choosing the right equipment for different expeditions.
The next time you need a spectrometer, ask yourself first: for this mission, do I need a nimble "Swiss Army knife" or a discerning "professional microscope"?
