Within the fermentation tank—this "black box"—the consumption of carbon sources (such as glucose) is the core driving force behind all life activities and product synthesis. However, traditional offline detection methods—periodic sampling and residual sugar analysis—can only provide discrete, delayed data points, unable to depict the continuous, dynamic trajectory of substrate consumption.
This "invisible" substrate flow, like the thread of a story, conceals the rhythm, efficiency, and bottlenecks of cellular metabolism.
Today, with advanced online monitoring technologies, we are able to reconstruct and interpret this critical trajectory in real time with unprecedented clarity, achieving precise control over the fermentation process. These technologies are primarily divided into two major paths: direct measurement and indirect estimation.
Why "See" the Substrate Flow? — The Physiological Code of Sugar Consumption
Before delving into how to monitor it, we must first understand the rich information embedded in the carbon source consumption trajectory. According to the knowledge base, sugar consumption directly "reflects the growth and proliferation of the producing strain" and "the vigor of product synthesis." Its dynamic changes represent the integrated manifestation of multiple physiological processes:
Carbon sources are primarily used in two aspects: first, for synthesizing new cellular material (growth), and second, for sustaining basic cellular life activities (maintenance).
The theoretical model for the specific substrate consumption rate qₛ:
qₛ = μ/YG + m + qₚ/Yₚ
This clearly shows that the total consumption rate qₛ consists of three components: growth consumption μ/YG, maintenance consumption m, and product synthesis consumption qₚ/Yₚ. By analyzing the relationship between qₛ and the specific growth rate μ, the intrinsic physiological parameters such as the biomass yield YG and the maintenance coefficient m can be estimated.
The "Weather Vane" of Metabolic Regulation:
The consumption pattern of carbon sources profoundly influences metabolic flux. For example, excessively rapid glucose consumption may trigger carbon catabolite repression (the glucose effect), inhibiting the synthesis of secondary metabolites (such as penicillin and other antibiotics). The knowledge base explicitly states: "Glucose is a good carbon source and energy source for cell growth, but it significantly reduces the yield of penicillin, cephalosporins, kanamycin, etc." Real-time mastery of the consumption rate is key to avoiding this inhibition and optimizing product synthesis.
The "Early Warning System" for Process Bottlenecks: Abnormal changes in the consumption trajectory (such as sudden acceleration or stagnation) may indicate issues such as insufficient dissolved oxygen, nutrient imbalance (e.g., nitrogen source limitation), accumulation of toxic metabolites, or decline in cellular physiological state.

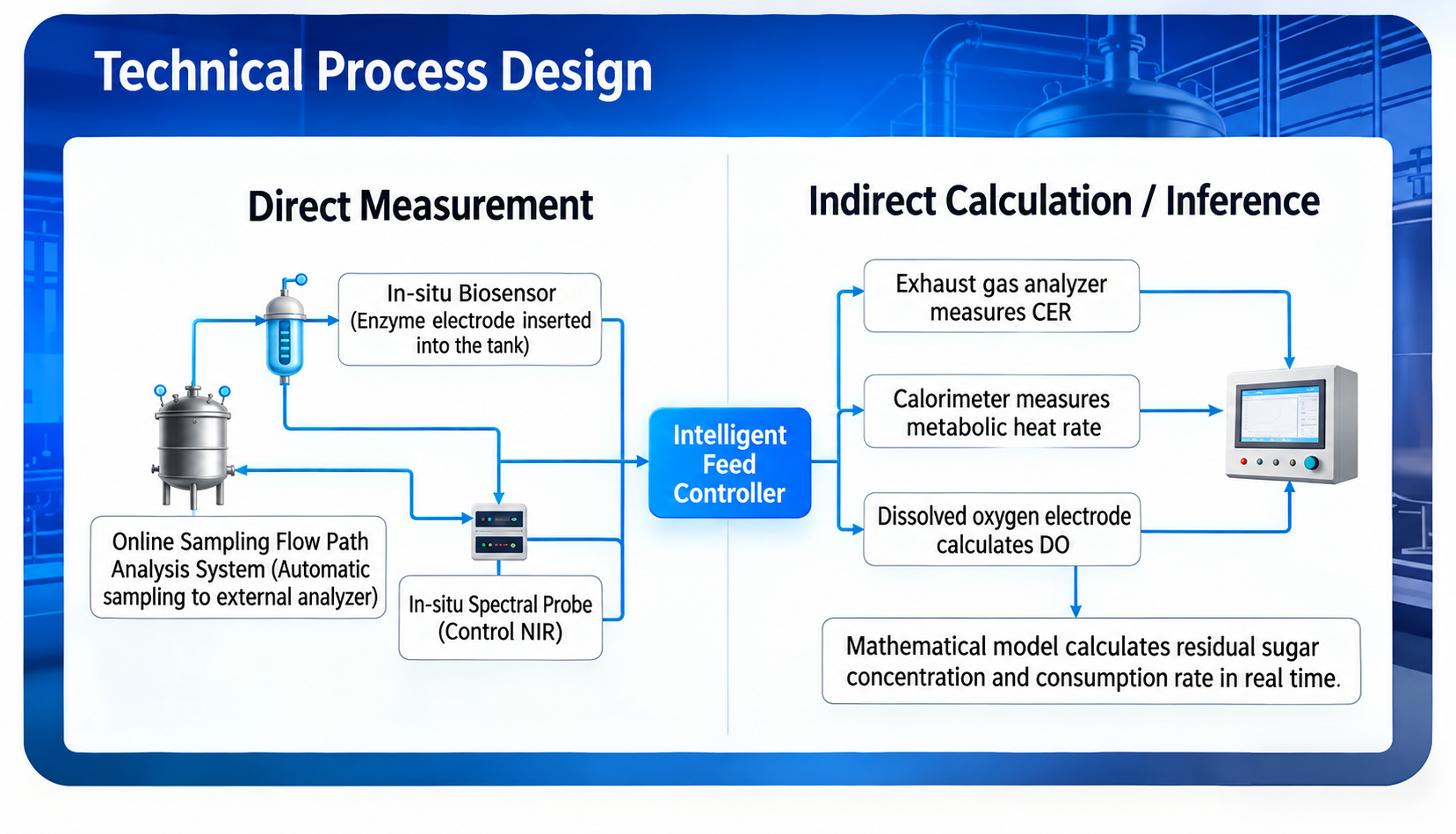

The "Eyes" of Online Monitoring: Two Paths to Reconstructing the Glucose Flow
Pathway I: Direct Online Measurement — The "X-Ray Vision" of Biosensors
This is the most intuitive approach, aiming to insert a glucose sensor directly into the fermentation tank for continuous, real-time concentration readings, just like online pH and dissolved oxygen (DO) electrodes.
Mainstream Technology: Biosensors and Enzyme Electrodes
Principle: The core is immobilized glucose oxidase (GOD). The enzyme membrane contacts the fermentation broth; glucose diffuses into the membrane and is oxidized under GOD catalysis to produce gluconic acid and hydrogen peroxide (H₂O₂). By electrochemically detecting the oxidation current of H₂O₂ (amperometric method), the current signal is proportional to the glucose concentration, enabling quantification.
Advantages: High specificity, direct concentration output, conceptually simple.
Challenges and Limitations:
l Sterility and Reliability: The sensor must withstand high-pressure steam sterilization (batch sterilization) or at least steam-in-place (SIP). Moreover, enzyme activity and membrane permeability degrade and drift over long-term operation due to proteins, cell adsorption, or chemical substances in the fermentation broth, requiring frequent calibration or replacement.
l Dynamic Range: Sugar concentrations may reach tens or even hundreds of g/L in the early fermentation stage, while dropping to extremely low levels in later stages, requiring the sensor to have an extremely wide linear range and high sensitivity.
l Maintenance Cost: Enzyme membranes are consumables, entailing high maintenance costs and complexity.
Other Direct Technologies: Spectroscopic Methods (e.g., NIR, Raman)
Principle: Near-infrared or Raman spectroscopy is used for in-situ scanning of the fermentation broth. By establishing a calibration model between glucose concentration and specific spectral features, non-contact, multi-component simultaneous measurement is achieved. This is a highly promising frontier direction, but it is heavily model-dependent, requires sample calibration, and is susceptible to interference from changes in the physical properties of the fermentation broth (such as bubbles and cell concentration).
Although direct measurement technologies continue to advance, they still face challenges in large-scale industrial applications due to cost, stability, and maintenance complexity. Therefore, the indirect estimation path remains the mainstream approach due to its robustness, reliability, and cost-effectiveness.
Pathway II: Indirect Online Estimation — Reverse-Deduction via Metabolic "Exhalation" and "Body Temperature"
This is the most mature and widely applied strategy, which indirectly reconstructs the consumption trajectory in real time by monitoring other parameters that are highly correlated with carbon source consumption.
Core Approach: Exhaust Gas Analysis — Monitoring Metabolic "Exhalation" (CER)
Principle and Correlation: Cells metabolize carbon sources and ultimately release carbon dioxide (CO₂). The carbon dioxide evolution rate (CER) exhibits a direct stoichiometric relationship with the carbon source consumption rate. During periods when the metabolic pathway remains relatively stable, the moles of CO₂ produced per mole of glucose consumed remains within a certain stable range. Therefore, dynamic changes in CER can approximately reflect dynamic changes in the carbon source consumption rate: an increase in CER indicates accelerated carbon source consumption, while a decrease indicates decelerated or halted consumption.
Constructing the Consumption Trajectory: By acquiring real-time CER data via online exhaust gas analyzers, and combining this with initial sugar concentration, fermentation broth volume, and known or estimated yield coefficients (e.g., YCO2/S or YX/S), a material balance model can be employed to estimate and display, in real time, a simulated residual sugar concentration curve and cumulative consumption within the fermentation broth. This achieves the leap from "monitoring gas" to "reverse-deducing substrate."
Advantages and Limitations: This method is fully online, delay-free, and non-invasive to the fermentation process. However, its accuracy depends on the stability of the metabolic pathway. When a significant metabolic shift occurs in the cells, YCO2/S will change, requiring adaptive model calibration.
Auxiliary Approaches: Metabolic Heat or Oxygen Uptake Rate — Monitoring Metabolic "Body Temperature" and "Oxygen Consumption"
The breakdown of carbon sources by cells is an exothermic process. By measuring the temperature difference and flow rate of the cooling water entering and leaving the fermenter, the metabolic heat release rate (HER) can be calculated in real time, from which the carbon source consumption rate can be inferred. The oxygen uptake rate (OUR) is also proportional to carbon source consumption under fully oxidative metabolism.
These parameters complement CER. Through multi-parameter fusion analysis (e.g., calculating the respiratory quotient RQ by combining CER and OUR), a more robust reconstruction of substrate flow can be achieved, particularly enabling cross-validation during metabolic pathway transitions.
Fusion and Intelligence: From "Seeing" to "Precision Control"

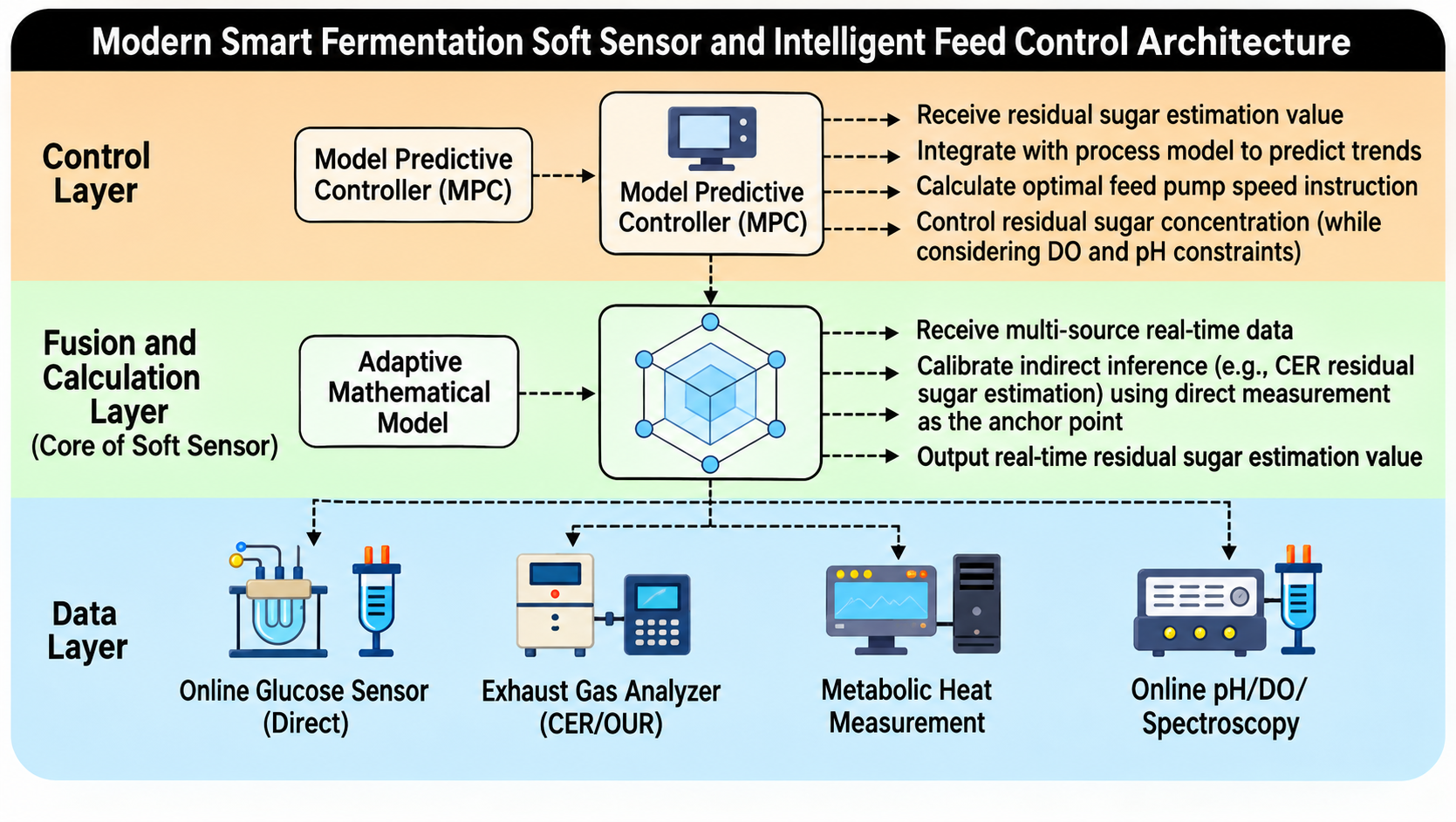

A more advanced strategy involves the fusion of direct and indirect methods. For example, relatively robust exhaust gas analysis (CER) is used for continuous real-time estimation, while direct measurements are periodically conducted via an online sampling stream system to calibrate and correct the indirect model. This "soft sensor" fusion strategy balances both continuity and accuracy.
The ultimate purpose of online substrate flow reconstruction is to achieve precise process control. Its most classic and powerful application is intelligent feeding control based on real-time substrate information.
Direct Control: If a reliable online glucose sensor is available, its reading can be used directly as the feedback signal for a PID controller to dynamically adjust the feed pump speed, maintaining the residual sugar concentration precisely at a set optimal value (e.g., 5 g/L).
Indirect Control (Mainstream):
Constant CER Control: A target CER value is set, and the controller adjusts the feed pump speed to keep the measured CER stable at that value, thereby maintaining a constant carbon source consumption rate.
Exponential Feeding: The controller outputs the feed rate according to a preset exponential function, designed to match the exponential growth of the cells, maintaining CER at a high plateau.
Model Predictive Control (MPC): By incorporating kinetic models (e.g., Monod equation, substrate consumption equation) and using multiple parameters such as CER and OUR as inputs, MPC predicts future residual sugar trends and optimizes feeding strategies to achieve superior control performance.
Through the above strategies, we can actively "shape" the substrate consumption trajectory to align with the optimal pathway defined by process design.
Summary: From Black Box to Transparency, From Passive to Active
The transition of the carbon source consumption trajectory from "invisible" to "clearly visible" marks the evolution of fermentation process control from experience-based to knowledge-based. Direct online measurement provides us with an ideal "X-ray vision" window, albeit facing engineering challenges; while indirect online estimation (particularly based on exhaust gas analysis) offers the current most reliable and cost-effective "stethoscope" solution, successfully reverse-deducing substrate "digestion" through metabolic "exhalation."
In the future, with breakthroughs in direct sensor technologies and the application of multi-source data fusion and artificial intelligence models, we will be able to construct a more accurate and powerful "metabolic vision system." This will transform us from passive "process observers" into active "metabolic navigators," capable of perceiving, predicting, and guiding the metabolic flux of cell factories in real time along preset efficient and high-yield pathways, ultimately unlocking the full potential of bioprocesses.
