If carbon sources are the "fuel" driving the cell factory, then nitrogen sources are the "bricks and mortar" building the life machine itself. Nitrogen metabolism not only concerns bacterial growth but also profoundly influences the direction of metabolic pathways and the efficiency of product synthesis. Ammonium ion (NH₄⁺) and amino nitrogen (NH₂-N) , as key indicators of nitrogen metabolism, are opening a window for real-time insight into the mysteries of nitrogen metabolism through online monitoring.

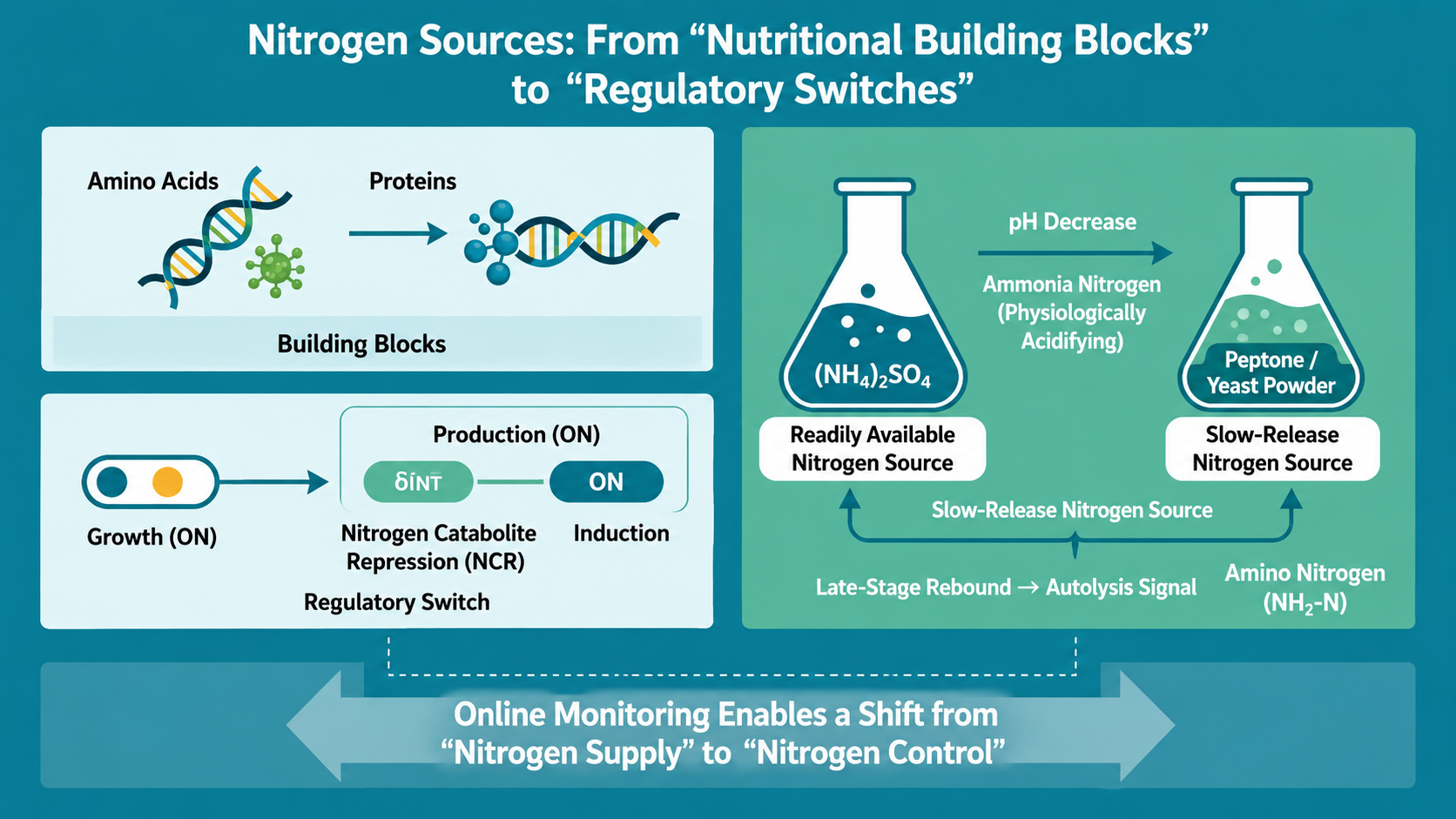

Nitrogen Sources: More Than Just "Bricks and Mortar"—They Are "Regulatory Switches"
Nitrogen sources are primarily used to construct cellular materials (amino acids, proteins, nucleic acids, etc.) and nitrogenous metabolites. But their role goes far beyond that.
1. The Two Faces of Nitrogen Sources: Physiologically Acidic vs. Physiologically Alkaline
Nitrogen sources significantly affect the pH of fermentation broth after metabolism, and can be classified accordingly:
Physiologically acidic substances, such as ammonium sulfate (NH₄)₂SO₄. After microorganisms utilize its ammonium ions (NH₄⁺), the residual sulfate radicals lead to the accumulation of acidic substances, causing a decrease in pH.
Physiologically alkaline substances, such as sodium nitrate NaNO₃. After microorganisms reduce and utilize it, alkaline substances are produced, causing an increase in pH.
This means that choosing an appropriate inorganic nitrogen source is itself a pH control strategy. During fermentation, abnormal pH changes can be monitored to infer the utilization of nitrogen sources.
2. Global Regulation of Nitrogen Metabolism: Repression and Induction
Nitrogen catabolite repression (NCR): When readily utilizable nitrogen sources (such as ammonium salts) are in excess, they repress many enzyme systems involved in the decomposition of nitrogenous compounds and the synthesis of secondary metabolites. This is why, in antibiotic fermentation, complex organic nitrogen sources like soybean cake powder are often used—to allow slow degradation and avoid the instantaneous repressive effect of high concentrations of ammonium ions, thus favoring antibiotic synthesis.
Induction of products: Conversely, certain nitrogen sources or their metabolites can induce the synthesis of specific products. For example, the production of protease is induced by proteinaceous nitrogen sources.
Therefore, nitrogen sources are not just nutrients but also powerful regulatory switches for the cellular metabolic network.

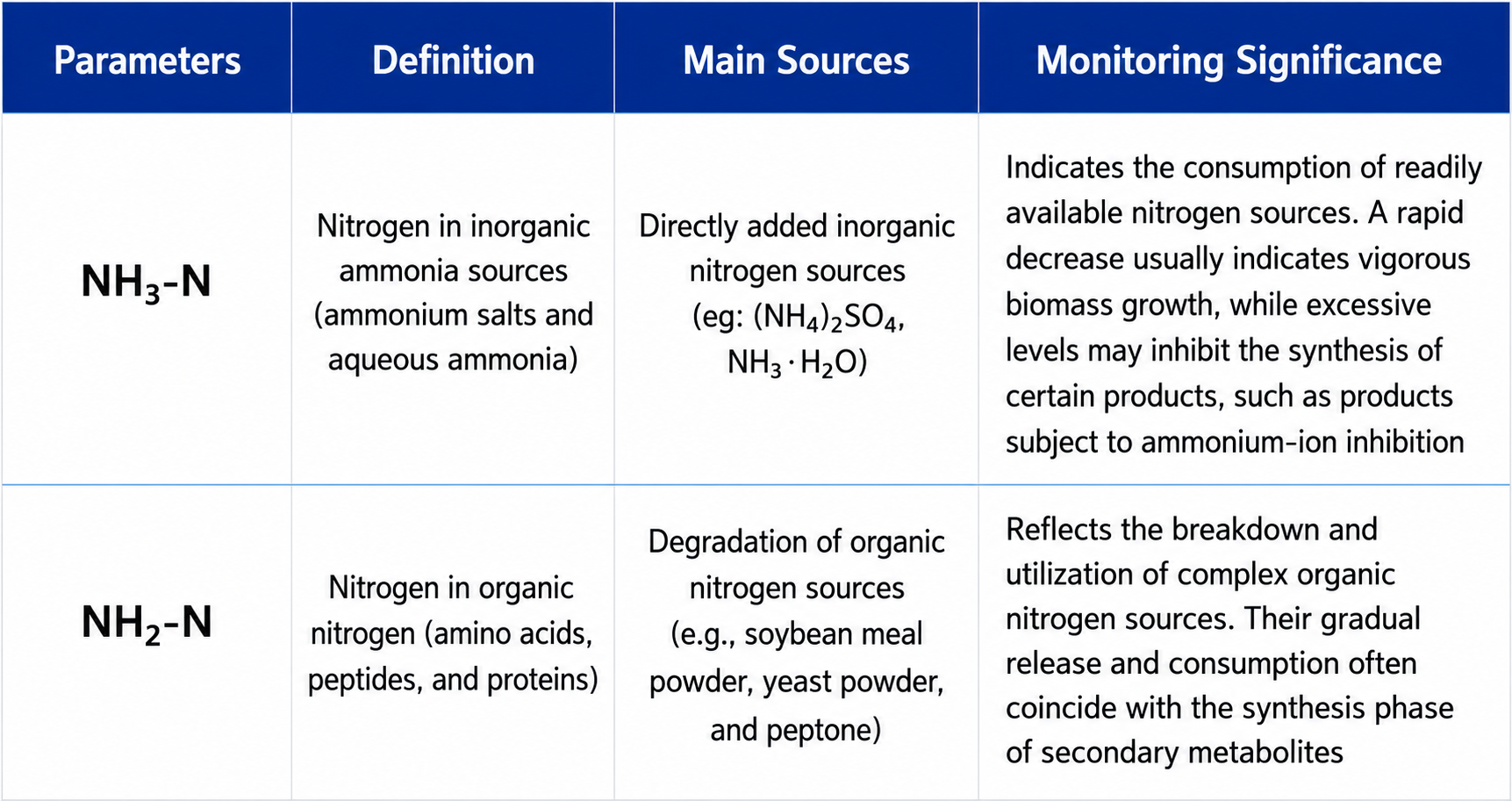

Key Indicators: Ammonium Nitrogen and Amino Nitrogen—What Is the Difference in Their Significance?
In fermentation intermediate analysis, nitrogen metabolism is often monitored through two key parameters:
An important process signal: In the later stage of fermentation, if the amino nitrogen shows a rebound, this is often a signal that the bacteria have begun autolysis, releasing organic nitrogenous substances. At this point, the fermentation should be harvested in a timely manner; otherwise, it will pose significant difficulties for downstream extraction and purification.

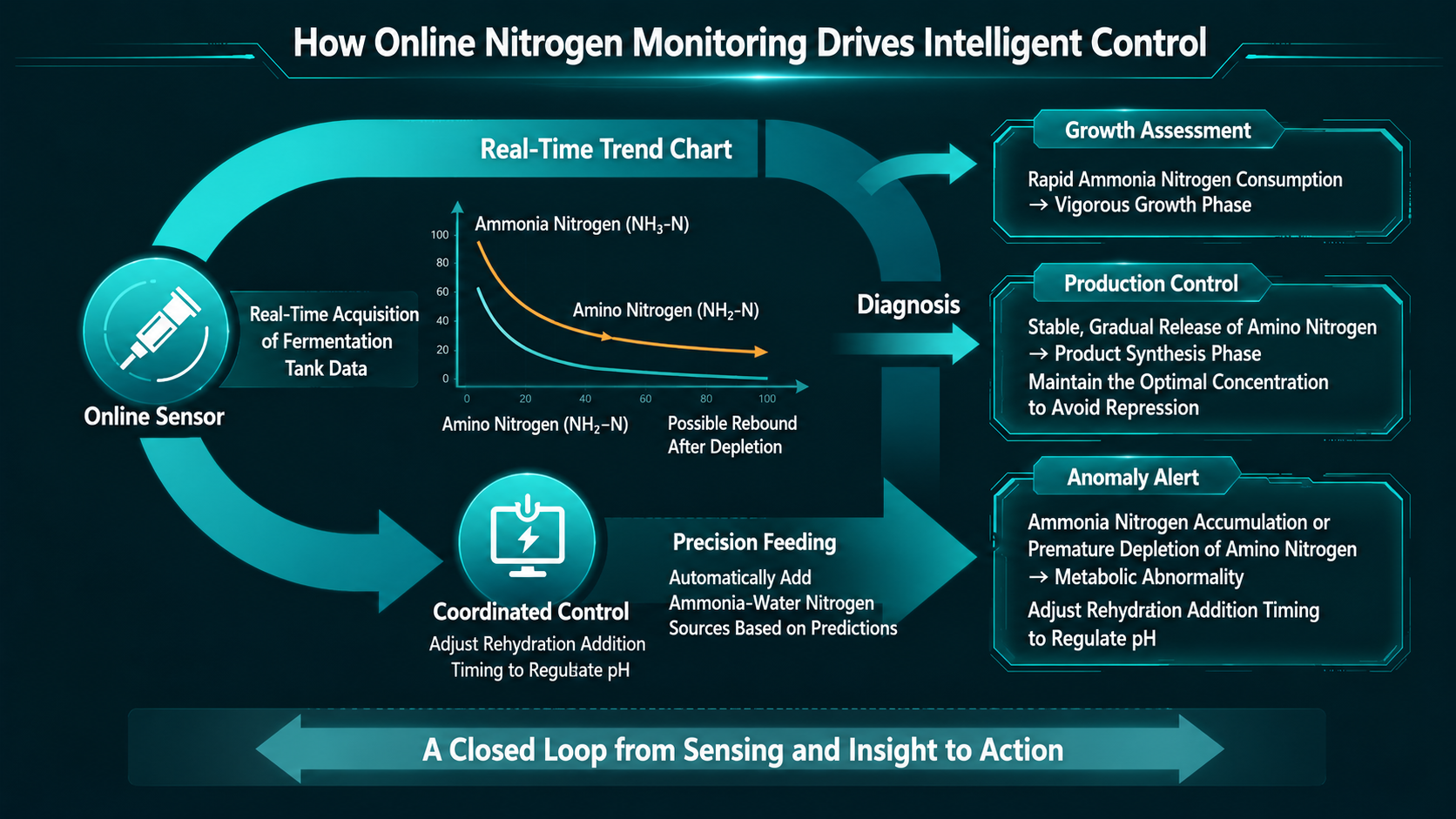

How Does Online Monitoring Reveal the Relationship Between Nitrogen Metabolism and Product Synthesis?
Traditionally, ammonia nitrogen and amino nitrogen are monitored through offline sampling, which results in information lag. Online monitoring technologies (such as ion-selective electrodes, online spectroscopy, and flow injection analysis) enable real-time tracking, thereby establishing a dynamic relationship with cellular physiology and product synthesis.
Scenario 1: Nitrogen Demand for Cell Growth vs. Product Synthesis
Growth phase: Cells rapidly synthesize proteins and nucleic acids, with a high demand for nitrogen. At this time, ammonia nitrogen is rapidly consumed, and amino nitrogen also begins to decrease. In online monitoring, seeing the ammonia nitrogen concentration rapidly drop to a low level is a marker of entering the mid-to-late logarithmic growth phase.
Product synthesis phase: For many secondary metabolites (such as antibiotics), their synthesis requires specific amino acids or amine precursors. At this time, the continuous, slow supply of organic nitrogen source (amino nitrogen) is crucial. Online monitoring can ensure that amino nitrogen is maintained within an optimal, non-repressive concentration range, satisfying synthetic needs without triggering NCR.
Scenario 2: Using Nitrogen Metabolism Data to Optimize Feeding and pH Control
Coupled control: Online ammonia nitrogen sensors can be linked with pH control and aqueous ammonia feeding. When the pH is low and ammonia nitrogen is insufficient, aqueous ammonia can be automatically fed, which both supplements the nitrogen source and adjusts the pH—killing two birds with one stone.
Predictive nitrogen feeding: By monitoring the consumption rate of amino nitrogen online, the depletion time of the organic nitrogen source can be predicted, enabling predictive feeding and avoiding metabolic stagnation caused by nitrogen source limitation.
Scenario 3: Diagnosing Metabolic Abnormalities
Abnormal accumulation of ammonia nitrogen: If online monitoring reveals that ammonia nitrogen is not being consumed but is instead accumulating, it may indicate:
1) cell growth is inhibited;
2) carbon source is insufficient, preventing nitrogen source assimilation;
3) metabolic pathways have changed.
Premature depletion or excessively rapid consumption of amino nitrogen: This may indicate quality fluctuations in the organic nitrogen source or insufficient feeding, requiring timely adjustment; otherwise, product synthesis may be affected.

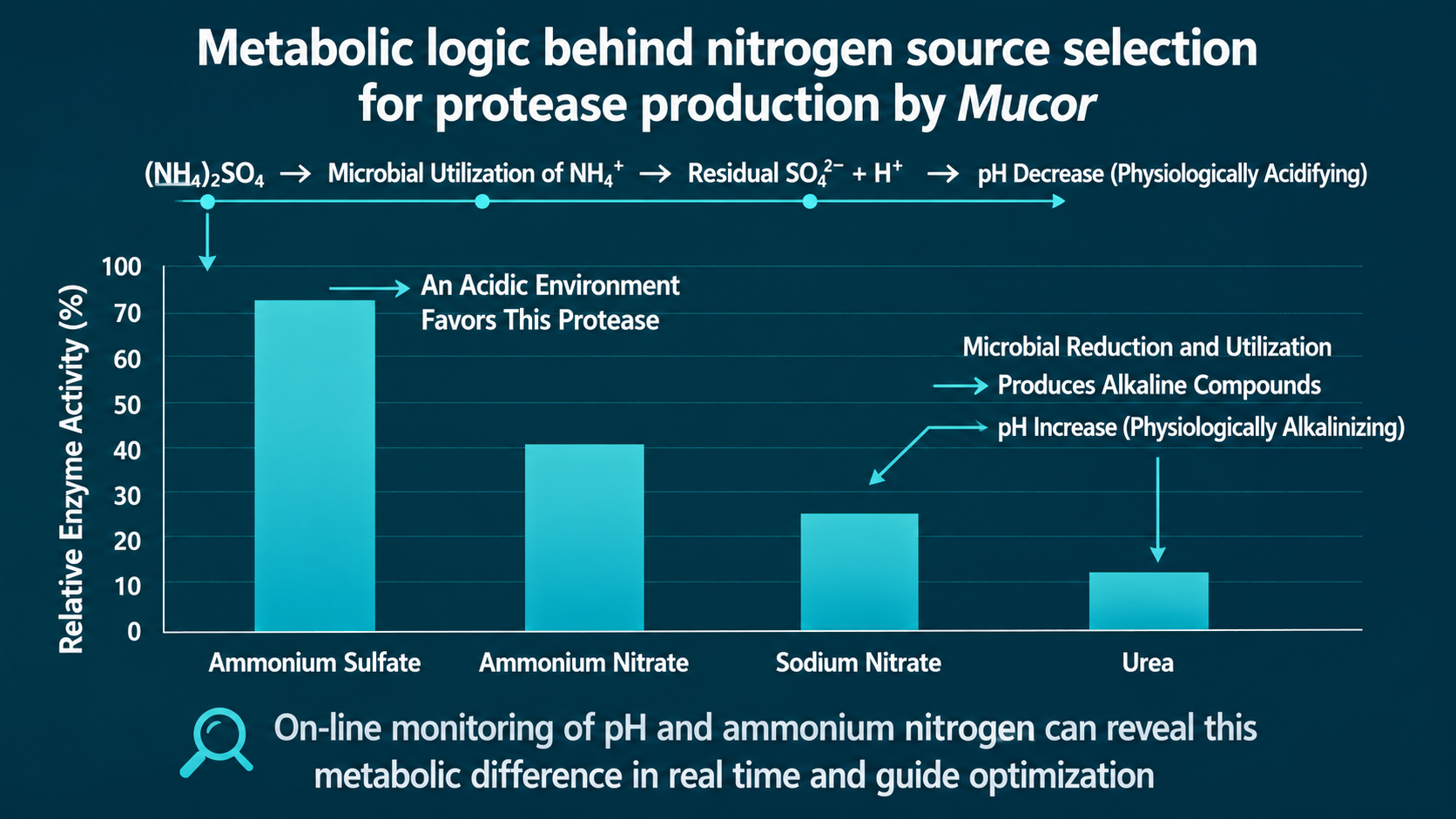

Case Study: The Art of Nitrogen Source Selection in Protease Production by Mucor
The study showed that different nitrogen sources had a significant impact on enzyme activity, with the order being: ammonium sulfate > ammonium nitrate > sodium nitrate > urea.
Behind this ranking lies a profound metabolic logic:
Ammonium sulfate (physiologically acidic) performed best: Possibly because it provides readily utilizable ammonium ions, while the acidic environment resulting from its metabolism may be more favorable for the production of this protease (the knowledge base indicates that this protease performs better under slightly acidic conditions).
Sodium nitrate (physiologically alkaline) was less effective: The alkalinity generated after its utilization may be detrimental to enzyme activity, and the reductive utilization of nitrate may consume more energy.
With online pH and ammonia nitrogen monitoring, we can observe in real time the differences in the cellular metabolic environment (pH) and nitrogen utilization dynamics when different nitrogen sources are used, thus providing direct evidence for nitrogen source optimization and process control.
Summary: From "Nitrogen Supply" to "Nitrogen Control"
Nitrogen metabolism is far more than simple nutrient consumption. The concentration dynamics of ammonium ions and amino nitrogen serve as a hub connecting cell growth, environmental pH, metabolic regulation, and product synthesis.
Online monitoring technology moves us from a crude model of "regular nitrogen feeding" to a precise model of "on-demand nitrogen control." By tracking the pulse of nitrogen metabolism in real time, we can:
More precisely distinguish between growth and production phases;
Proactively adjust pH and optimize nitrogen source feeding strategies;
Avoid nitrogen repression and maximize product synthesis efficiency;
Timely capture signals of bacterial autolysis and optimize the harvest timing.
Ultimately, the goal is to ensure that every unit of nitrogen source is put to its best use, flowing efficiently toward the target product rather than being wasted on excessive cell growth or useless byproducts.
