Have you ever struggled with large fluctuations in spectral data or weak signals being buried in noise?
Signal-to-noise ratio (SNR) is a key indicator of spectrometer performance. It directly determines the quality and reliability of measurement data. The good news is that, in addition to choosing a high-performance instrument, proper parameter settings can also significantly improve the SNR of an existing system!
Today, we'll reveal three simple yet crucial spectrometer parameter-setting techniques and show you step by step how to optimize your measurement results.
Step 1: Subtract the Dark Background — Remove the “Instrument Background Noise”
The spectral signal you measure is actually a mixture of several components:
True Signal: The sample information you are actually interested in obtaining.
Ambient Stray Light: Interference from surrounding light sources.
Dark Background: The signal generated by the spectrometer detector and electronics in the absence of light. It can vary with exposure time and temperature.
Without dark-background subtraction, it is like trying to hear someone whispering in a noisy marketplace—it becomes difficult to distinguish the actual information.

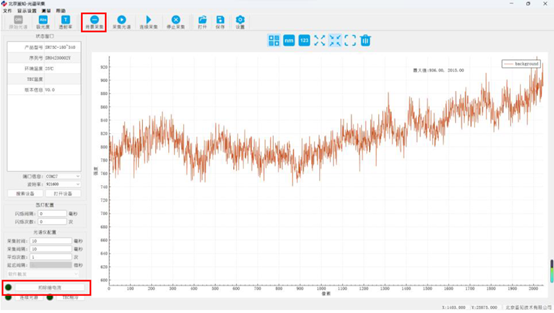

How to Operate: Using JINSP_SPEC software as an example:
Set the exposure time and other acquisition parameters in the software.
Turn off the light source and block the optical input, then click the “Background Acquisition” button. The software will acquire the dark-background spectrum under the current measurement conditions. Then click “Subtract Dark Current.”
Keep all parameters unchanged, turn on the light source and illuminate the sample, and perform the normal measurement. The software will automatically subtract the dark background from the measured signal.
Tips: When acquiring the dark background, you can appropriately increase the number of averages to obtain a more stable and accurate estimate of the background signal, resulting in more effective background subtraction.
Step 2: Set an Appropriate Exposure Time — Give the Signal “Enough Exposure”
Exposure time, also known as integration time, is the length of time during which the detector collects photons. It is one of the most effective parameters for improving the signal-to-noise ratio.
Principle: when the light intensity remains constant, the output signal intensity is proportional to the exposure time. If the signal is too weak or the exposure time is too short, the useful signal may be completely buried in noise.

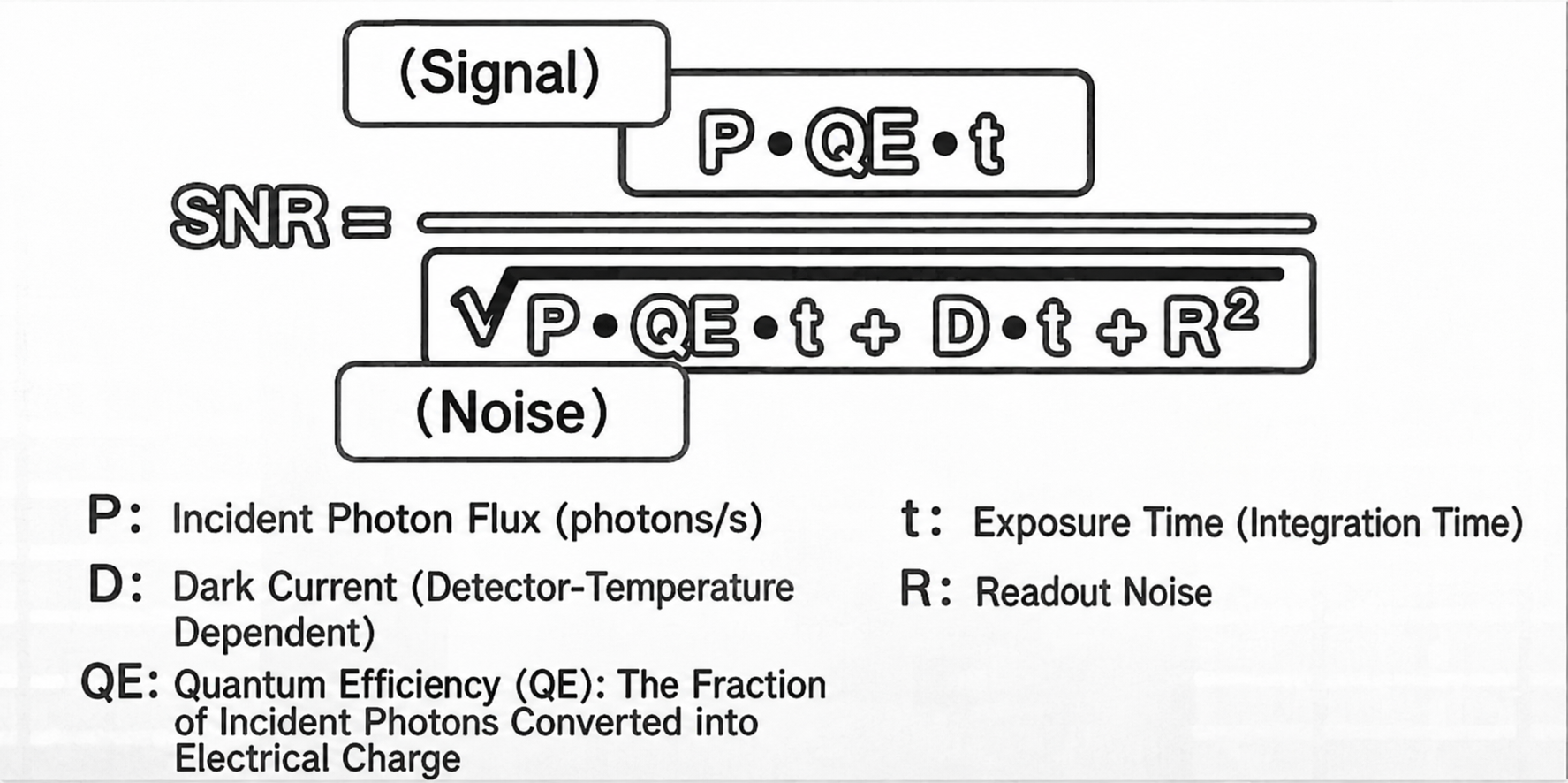

Relationship Between SNR and Exposure Time
For weak signals: the SNR is approximately proportional to the exposure time. Increasing the exposure time allows the signal to increase faster than the dominant noise contribution, thereby significantly improving the SNR.
For relatively strong signals: the SNR is approximately proportional to the square root of the exposure time. Increasing the exposure time can still improve the SNR, but the improvement gradually becomes less significant.
Step 3: Increase the Number of Averages — Use the “Power of Statistics” to Smooth Out Noise
When increasing the exposure time reaches its practical limit, the number of averages becomes a useful tool.
Principle：acquire multiple spectra consecutively and then calculate their average. Random noise tends to cancel out statistically during repeated averaging, while the true signal is retained, resulting in an improved SNR.
Improvement in SNR: the improvement in SNR is proportional to the square root of the number of averages. For example, increasing the number of averages from 1 to 10 increases the SNR to approximately: √10 ≈ 3.2 times the original value.
Applicable Scenarios
When the signal is too strong: if further increasing the exposure time causes the detector signal to reach saturation (overexposure), keep the exposure time relatively short and increase the number of averages instead to improve the SNR.
When the signal is extremely weak: using an excessively long exposure time may cause dark-current accumulation and eventually saturate the detector. In this case, multiple averaging can also be a better approach.
Please note: Increasing the number of averages increases the total measurement time, and the improvement is generally less effective than directly increasing the exposure time. Optimize the exposure time first, then consider increasing the number of averages.

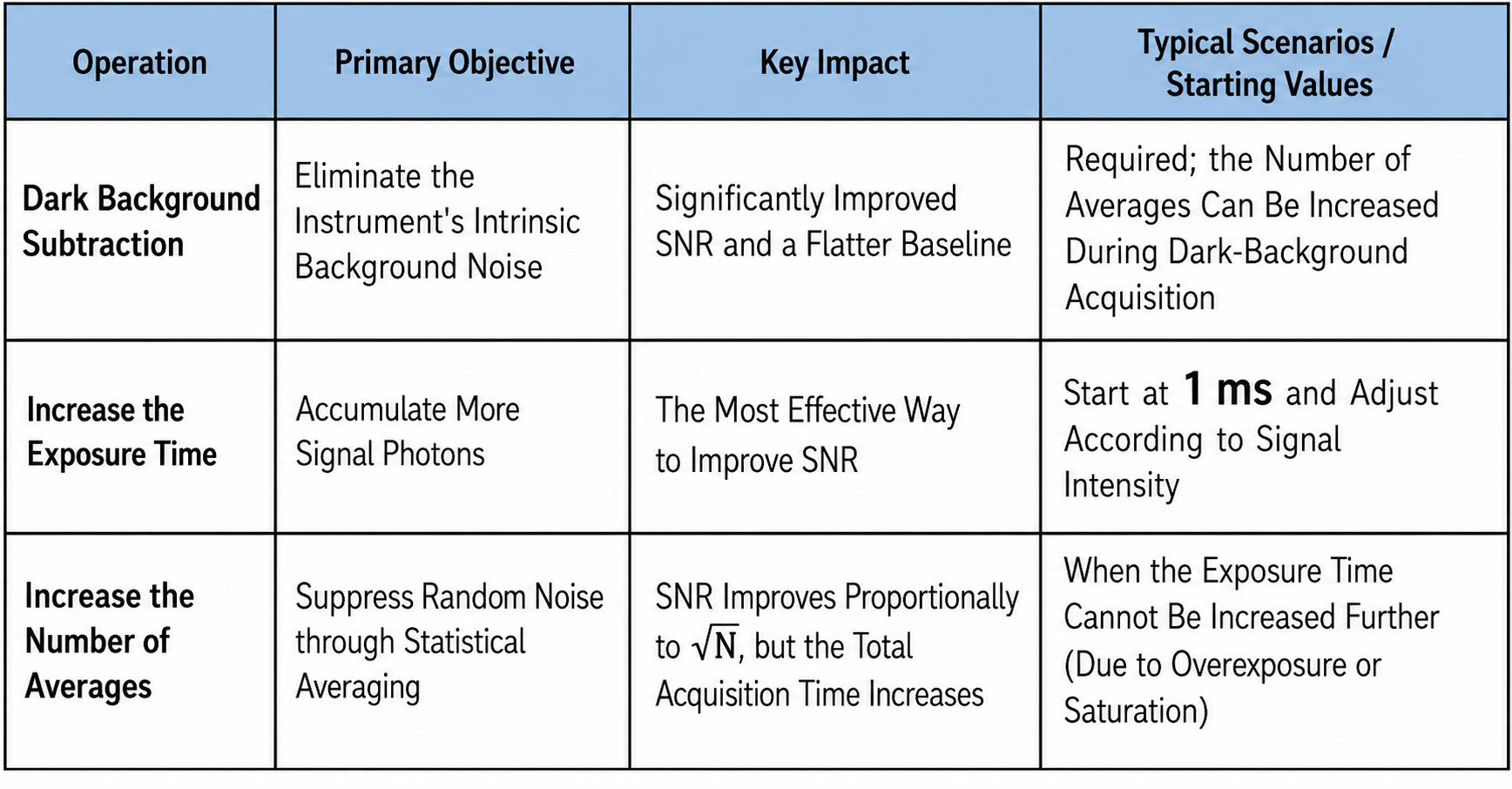

Summary & Quick Troubleshooting
Common Problem: What If You Cannot Detect Any Signal at All?
First, check whether the exposure time is set too short! Immediately try increasing the exposure time substantially—for example, from 1 ms to 60 ms. In many cases, an exposure time that is too short is the root cause of the problem.
By intelligently combining these three techniques, you can optimize your spectrometer settings much like an experienced photographer adjusts the aperture, shutter speed, and ISO. This allows even the faintest spectral signals—and the scientific information hidden within them—to be captured more clearly and reliably.
