When building a spectral detection system or selecting a spectrometer, researchers, engineers, and system integrators alike face a series of selection challenges. To help you get started quickly, we have compiled the ten most common questions in spectrometer selection based on JINSP's extensive product line and technical support experience, along with concise answers. In this installment, we share the first five questions.
Q1: Which spectral range should I choose?
A: The choice of spectral range depends entirely on your detection target. You should select a spectrometer that covers the wavelength band where your optical signal (absorption, reflection, fluorescence, emission, etc.) is primarily distributed.
UV-Vis (200–850nm): Suitable for chemical analysis, water quality testing (e.g., COD, total nitrogen), color measurement, LED testing, etc.
Vis-NIR (400–1100nm): Widely used for color measurement, agricultural monitoring, and some Raman spectroscopy applications.
NIR (900–2500nm): Excels at analyzing chemical bonds such as C–H, O–H, and N–H in organic compounds—an ideal choice for grain moisture, pharmaceutical ingredient analysis, and petrochemical process analysis.
Raman shift range: For Raman spectroscopy, selection should be based on the excitation laser wavelength (e.g., 532nm, 785nm, 1064nm) to ensure coverage of the target Raman shift (typically 0–3500cm⁻¹).
Tips: JINSP's SR50C series covers 200–1000nm, the SR100N series covers 900–2500 nm, and the ST90S/ST100S are specifically optimized for 532 nm/785 nm Raman applications, offering a rich selection.
Q2: Is higher spectral resolution always better?
A: Not necessarily—it depends on your application and requires trade-offs.
Advantages of high resolution (e.g., <1nm): Clearly resolves closely spaced spectral peaks, suitable for fine spectral analysis such as atomic emission spectroscopy, separation of adjacent Raman peaks, and resolution of gas absorption lines.
Costs of high resolution: Typically requires a narrower slit, which reduces the light throughput entering the spectrometer and may result in weaker signals. High-resolution models also tend to be more expensive.
How to choose:
High resolution needed: Raman spectroscopy, laser line analysis, plasma fine-spectrum monitoring.
Moderate resolution sufficient: Color measurement, liquid concentration detection, LED spectrum analysis, and most transmission/reflectance measurements.

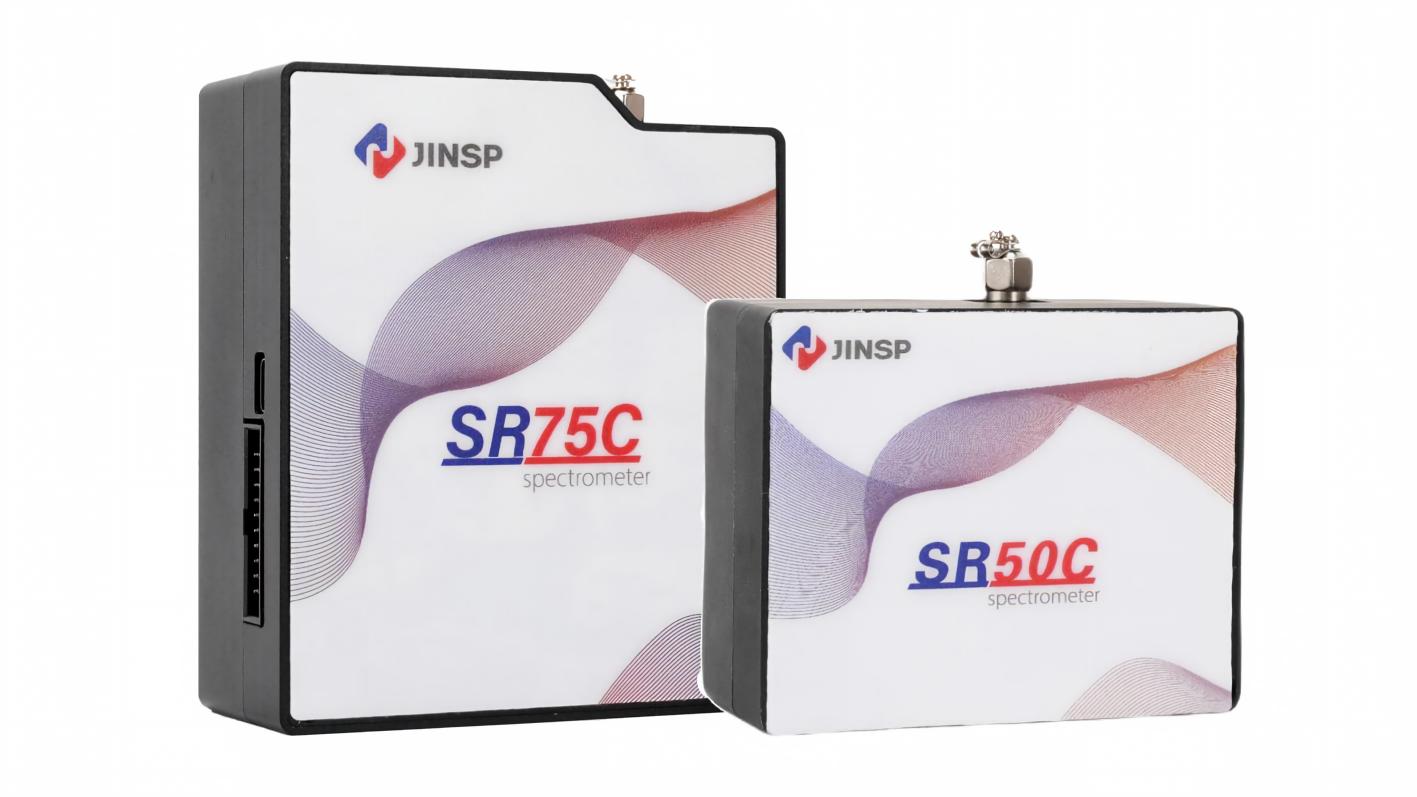

For reference: JINSP SR75C-G10 achieves a resolution of 0.15nm, suitable for ultra-high-precision analysis, while the SR50C-G01 at 50 μm slit offers 3.5nm resolution—sufficient for most routine measurements with greater light throughput.
Q3: Should I choose a cooled or uncooled spectrometer?
A: The core difference lies in signal-to-noise ratio (SNR) and application scenarios.
Cooled spectrometers (e.g., SR100Z, SR100Q, SR100N):
Advantages: TEC (thermoelectric cooling) significantly reduces detector dark current and thermal noise, achieving extremely high SNR.
Applicable scenarios: Weak signal detection (e.g., fluorescence, Raman, weak plasma radiation), measurements requiring long integration times (>1 s), and environments with fluctuating ambient temperatures.
Uncooled spectrometers (e.g., SR50C, SR75C, SR50R):
Advantages: Cost affordable, smaller footprint, and lower power consumption.
Applicable scenarios: Strong signals (e.g., routine absorption/reflection measurements), fast acquisition requirements, budget-constrained projects, or space-limited integration.
Quick rule of thumb: If your signal is weak or the measurement environment is hot, opt for a cooled model; otherwise, a cost-effective uncooled spectrometer may be the better choice.
Q4: How should I select the slit width?
A: The slit is the entrance to the spectrometer's optical path, and its width requires a balance between resolution and light throughput.
Narrow slits (e.g., 10μm, 25μm): Provide higher optical resolution but admit less light, potentially reducing SNR. Suitable for applications with sufficiently bright light sources that demand high resolution.
Wide slits (e.g., 50μm, 100μm, 200μm): Allow more light in, offering greater throughput and better SNR, but at the cost of reduced resolution. Suitable for low-light detection or applications where resolution is less critical.
Practical advice: JINSP spectrometers offer a variety of slit options (e.g., 10, 25, 50, 100, 200 μm). If unsure, start with 50μm—a balanced choice between resolution and throughput. You may also consult our technical support team for recommendations based on your specific light source and sample conditions.
Q5: How do I choose among USB, serial ports (RS232/RS485), Camera Link, and other interfaces?
A: The choice of interface depends primarily on your data transfer rate requirements and system integration approach.
USB (2.0/3.0): The most common option—easy connection to a PC with integrated power delivery. USB 3.0 offers significantly higher rates than USB 2.0, suitable for high-speed continuous acquisition (e.g., 100 fps). Most JINSP spectrometers support USB.
Serial ports (RS232/RS485): Suitable for industrial environments, long-distance communication (RS485 up to kilometers), or integration into proprietary control systems. Lower data rates than USB, but with strong anti-interference capability and simple protocols.

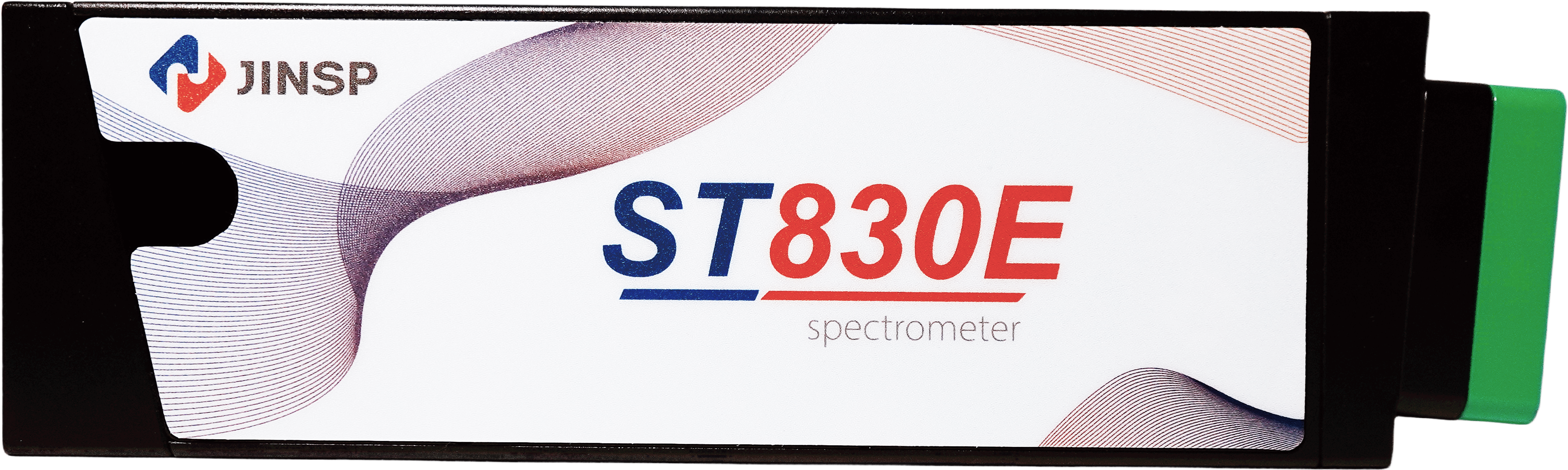

Camera Link / CoaXPress: Professional high-speed interfaces for applications requiring extremely high frame rates (e.g., tens to hundreds of thousands of lines per second), such as OCT spectrometers (ST830E/ST840E) and high-speed industrial inspection.
Ethernet: Available as a custom option on select models, suitable for distributed networked integration.
Selection guide:
Lab benchtop measurements, fast acquisition → USB 3.0.
Industrial embedded systems, long-distance cabling → RS485.
Ultra-high-speed imaging, OCT → Camera Link / CoaXPress.
Selection is a comprehensive process—clarifying your core requirements is key. In the next installment, we will continue with the other five common questions, including:
How to choose matching fibers and light sources?
What software and SDK support is available for the spectrometer?
Is wavelength calibration needed? How is it performed?
Can customizations be supported (wavelength range, interfaces, mechanical design)?
How to evaluate the long-term stability of a spectrometer?
