RS2200PAT Series On-line Raman Analyzer
In-situ measurement: No sampling required; avoids contact with hazardous samples
Harsh-condition resistance: Probe withstands 300 °C and 5 MPa
Broad application scope: Detects various gas components
Fast analysis: Single measurement completed within 60 seconds
Multi-point measurement: One main unit can be equipped with up to 8 channels for sequential continuous analysis of eight measuring points
| Working Condition Type | Typical Scenarios |
| Highly Toxic Gas | Phosgene synthesis (COCl2), HCN synthesis, fluorine gas preparation, hydrazine-based propellants, silane / phosphine / arsine |
| High-Temperature Condition | Ethylene cracking, waste incineration, blast furnace gas |
| High-Pressure Condition | Coal gasification, methanol synthesis, natural gas purification, hydrogen refueling |
| Strong Corrosion | Fluorochemical industry, ammonia synthesis, HCl, HF |
| Sulfur-containing Medium | Sulfur recovery, natural gas desulfurization, coal-to-oil syngas |

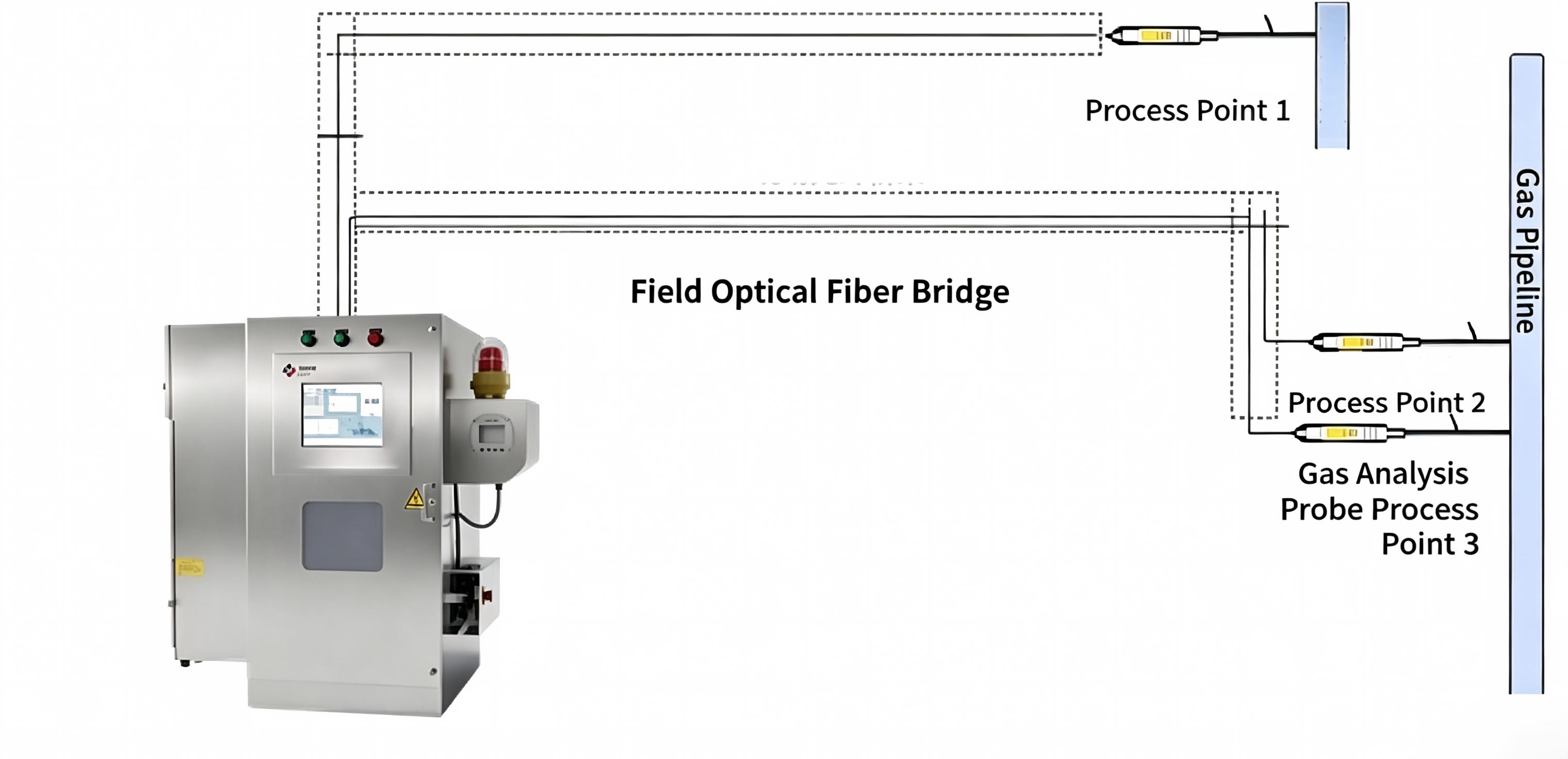

Schematic layout: explosion-proof main unit connected via on-site fiber-optic cable tray to gas-analysis probes installed on field-side process pipelines.
|
Performance Item |
Parameter |
| Working Principle | Laser Raman Spectroscopy |
| Measurement Mode | In-situ non-destructive detection |
| Number of Detection Channels | Standard: single channel, 8 channels; customisable for other channel quantities |
| Detection Sensitivity | 0.2% under normal temperature and pressure |
| Equipment Installation Mode | Chassis type: W485 × H165 × D675 mmExplosion-proof cabinet: D950 × W900 × H1300 mm |
| Probe Installation | Swagelok standard ferrule fitting |
| Power Requirement | Rated Voltage: 220 V AC;Frequency: 50~60 Hz;
Rated Power: 3000 W |
| Positive-pressure Gas Supply Requirement | Clean gas, T ≤ 40 °C;Pressure: 0.4~0.8 MPa;
Inlet flow ≥ 0.1 m³/min |
| Operating Temperature | Chassis installation: 5~35 °CExplosion-proof cabinet installation: -20~50 °C |
| Communication Interface | RS485, RJ45 Ethernet port; ModBus protocol supported |
| Explosion-proof Rating of Cabinet | ExdbebibmbpxbIICT4Gb / ExtbibmbIIICT135℃Db |
| Thermostat Unit | Three-stage temperature control system, enabling long-term stable operation within -20 ~ 50 °C ambient temperature |
| 24-hour Continuous Operation | Built-in real-time auto-calibration and self-diagnosis, temperature control and positive pressure protection |
| Relative Humidity | 0~90%RH |
| Equipment Power | 3000 W (max); 300 W (typical running) |
| Warm-up Time | < 60 min |
| Software Functions | 1. Data Acquisition2. Intelligent Acquisition Mode
3. Modelling Function 4. Model Validation 5. Automatic Optimization of Quantitative Model 6. On-line Detection |
