RS2600 Multi-Gas Analyzer

RS2600 Multi-Gas Analyzer Featured Image
  • RS2600 Multi-Gas Analyzer
  • RS2600 Multi-Gas Analyzer
  • RS2600 Multi-Gas Analyzer

Short Description:

JINSP® RS2600 Multi-gas Analyzer adopts laser Raman spectroscopy principle. It can detect nearly all gases except monatomic gases and realize simultaneous on-line analysis of multi-component gas mixtures.

Petrochemical industry: Hydrocarbon gases such as CH4, C2H6, C3H8, C2H4

Fluorochemical industry: Corrosive gases including F2, BF3, PF5, HCl, HF

Metallurgical industry: Gases like N2, H2, O2, CO2, CO

Biopharmaceutical industry: Fermentation off-gas including H2S, NH3, CH4, CO2

Scientific research: Isotopic gases: H2, D2, T2, HD, HT, DT


  • :

    • Product Detail

    Product Tags

    Technical Advantages

    Multi-component: Simultaneous monitoring of multiple gas components

    High sensitivity: Quantitative range from ppm level to 100 %; sensitivity 100-fold higher than comparable products

    Wide applicability: Supports measurement of more than 500 gas species; detects all gases except noble gases

    Second-level response: Single measurement duration < 1 s

    Easy maintenance: Tolerates high-pressure sample gas; direct measurement with zero consumables

    Typical Application Diagram

    Detection of ppm-level gases in multi-component gas mixtures

    图片1(16)

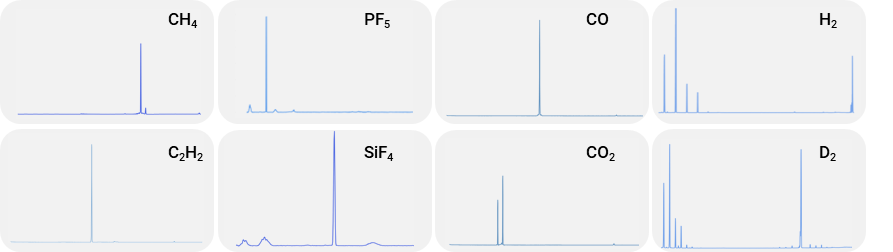

    Typical Gas Spectra

    图片1(17)

    Applications

    图片1(18)

    Specifications

    Item Parameter
    Sample Gas Pressure 1 kPa ~ 1 MPa
    Sample Gas Temperature 50 ℃ ~ +40 ℃
    Sample Gas Flow Rate 0.5 ~ 15 L/min
    Gas-path Connector 6 mm standard ferrule fitting
    Power Supply 100-240 VAC, 50-60 Hz
    Ambient Temperature 0 ℃ ~ 35 ℃
    Ambient Humidity 0 ~ 90 %RH
    Dimensions 445 mm (W) × 350 mm (H) × 600 mm (D)
    Weight 40 kg
    Data Output USB2.0, RS232/RS485 DB9, RJ45
    Data Input 12 V power supply for temperature-pressure sensor, RS485
