RS5200PAT Series Online Raman Analyzer
In-situ measurement: No sampling required; avoids contact with hazardous samples
Fast analysis: Single measurement completed within 60 seconds
Harsh-condition resistance: Probe withstands temperature up to 300 °C and pressure up to 5 MPa
Broad application scope: Detects various gas components except noble gases
Multi-point measurement: One main unit supports up to 6 channels for cyclic continuous analysis at six measuring points
Wall-mount layout: Suitable for installation in on-site industrial analysis shelters
|
Working Condition Type |
Typical Scenarios |
| Highly Toxic Gas | Phosgene synthesis (COCl2), HCN synthesis, fluorine gas preparation, hydrazine-based propellants, silane / phosphine / arsine |
| High-Temperature Condition | Ethylene cracking, waste incineration, blast furnace gas |
| High-Pressure Condition | Coal gasification, methanol synthesis, natural gas purification, hydrogen refueling |
| Strong Corrosion | Fluorochemical industry, ammonia synthesis, HCl, HF |
| Sulfur-containing Medium | Sulfur recovery, natural gas desulfurization, coal-to-oil syngas |

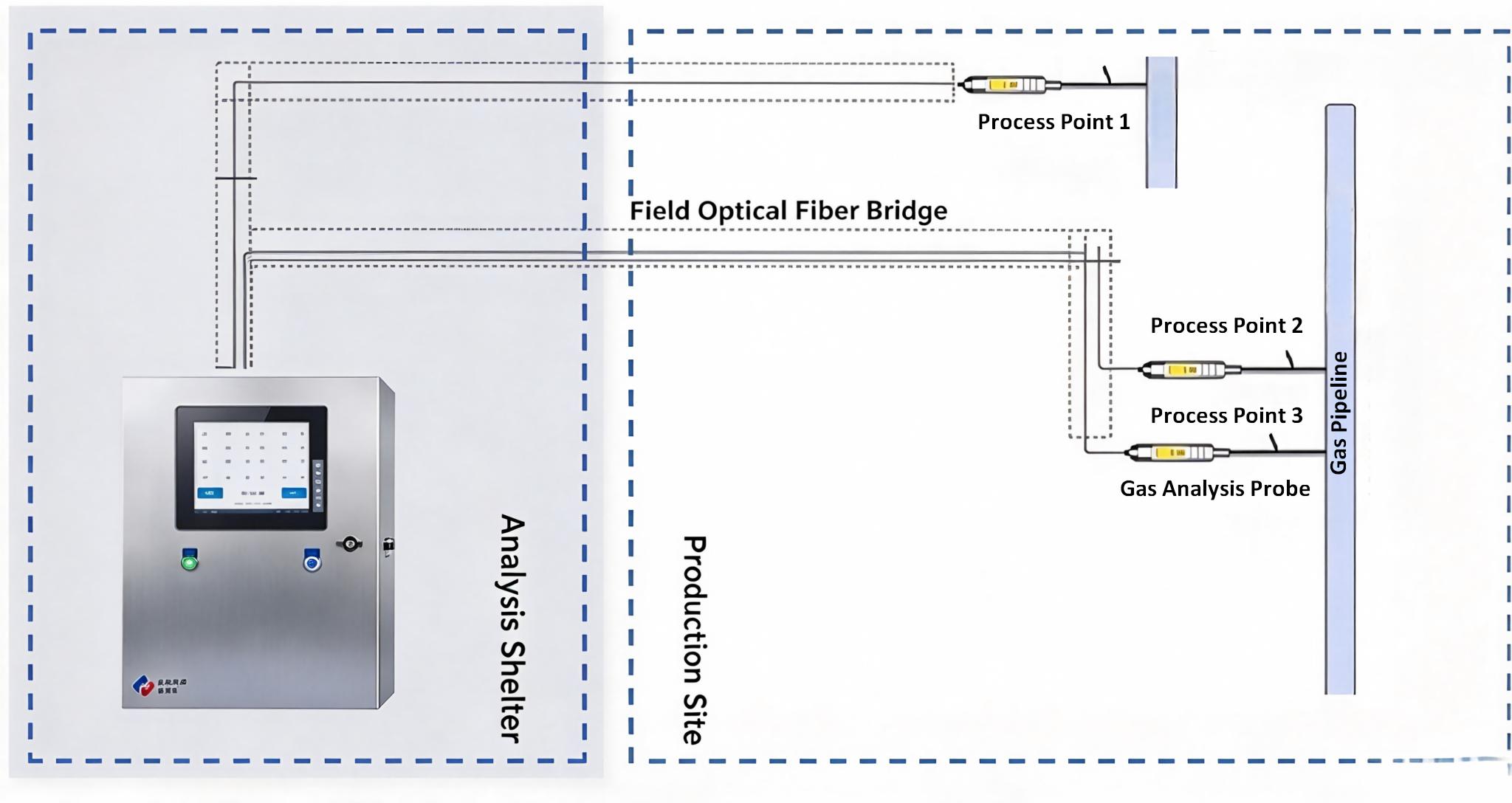

Wall-mount main unit installed inside analysis shelter, connected via on-site fiber-optic cable tray to multiple gas-analysis probes mounted on process pipelines for multi-point cyclic monitoring.
|
PerformanceItem |
Parameter |
| Application Mode-Testing Accessory | Immersion Probe |
| Application Mode-Channel | Standard: single-channel; 8-channel optional |
| Optical Parameter-Spectral Range | 900 ~ 1700 nm or 900 ~ 2500 nm (optional) |
| Optical Parameter-Spectral Resolution | 3.1 nm @ 900 ~ 1700 nm; 6.3 nm @ 900 ~ 2500 nm |
| Optical Parameter-Detector | Cooled linear-array InGaAs |
| Optical Parameter-Light Source | 20 W@2500 hours; 5 W@10000 hours; quick-detachable and replaceable |
| Immersion Probe-Mode | Standard: transmission-reflection; other modes available. Compatible with diverse reaction kettles and reaction conditions |
| Immersion Probe-Temperature Rating | < 150 °C; customized for higher conditions |
| Immersion Probe-Pressure Rating | < 1 MPa; customized for higher conditions |
| Immersion Probe-Probe Length | Standard: 300 mm; customizable length |
| Immersion Probe-Probe Diameter | 12 mm |
| Immersion Probe-Window | Standard: quartz; sapphire optional |
| Immersion Probe-Probe Tube Material | Standard: 316 stainless steel; Hastelloy and other materials customizable |
| Software Functions | On-line monitoring, spectrum acquisition, trend display, model research |
| Operating Environment-Operating Temperature | 5 ~ 35 °C |
| Operating Environment-Storage Temperature | -20 ~ 55 °C |
