Natural-Gas On-line Analyzer
Non-destructive gas analysis: Direct sample-injection measurement without interference to the process system
Fast detection: Test results available within 1 minute
High sensitivity: Capable of measuring low-concentration gas components
Simultaneous multi-component measurement: One instrument detects multiple gas species for natural-gas applications
Wide applicability: Detects all gases except monatomic noble gases, including hydrocarbon isomers
Low maintenance cost: No carrier gas required; no chromatographic-column replacement; simple pre-treatment system
Oil & gas exploitation, coal-bed methane development, biomethane production, natural-gas pipeline & city-gas transmission monitoring, downstream natural-gas synthesis monitoring, scientific research and laboratory experiments.
|
Item |
RS5200NG |
RS2200NGPAT |
|
Appearance/ Installation Mode |

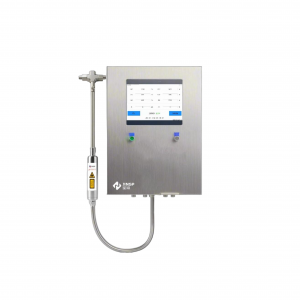

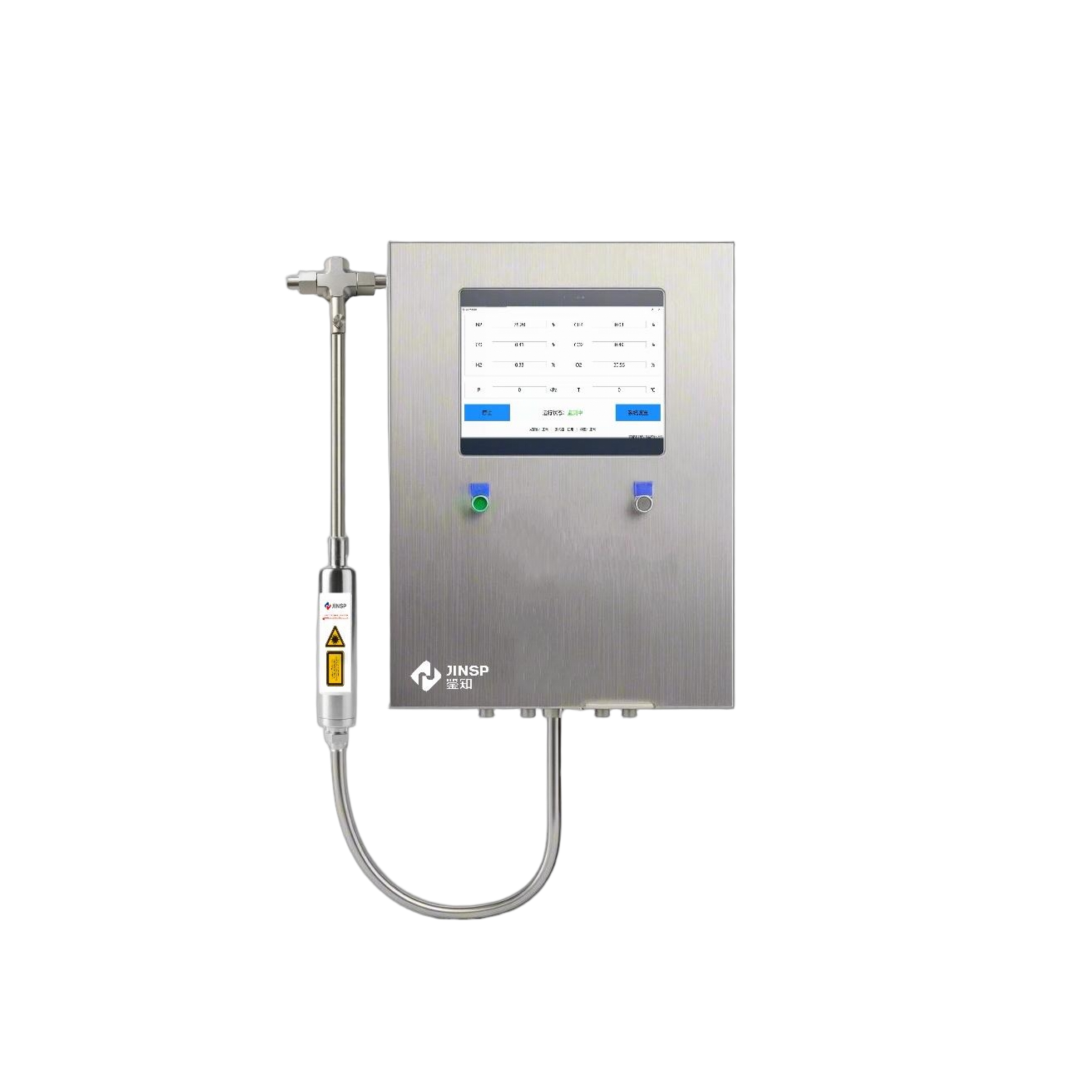

Wall-mount type |

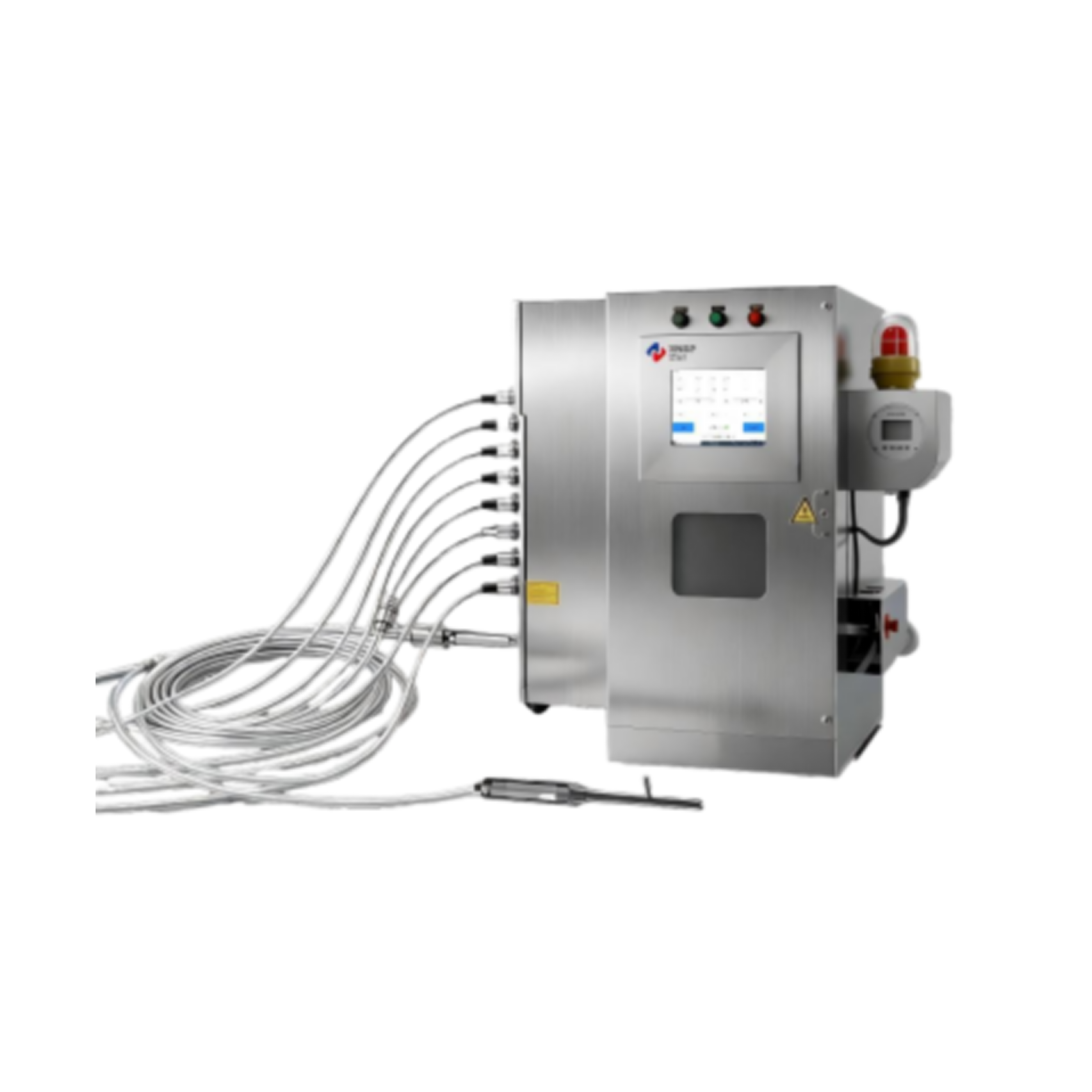

Vertical cabinet type |
|
Sample-gas Pressure |
≤ 4 MPa |
≤ 4 MPa |
|
Sample-gas Temperature |
-20 ~ 200 ℃ |
-20 ~ 200 ℃ |
|
Gas-path Connection |
12 mm bare-shaft probe mounting or 6 mm tee ferrule fitting |
12 mm bare-shaft probe mounting or 6 mm tee ferrule fitting |
|
Power Supply |
100-240 VAC, 50-60 Hz |
100-240 VAC, 50-60 Hz |
|
Ambient Operating Temperature |
5 ~ 35 ℃ |
-20 ~ 50 ℃ |
|
Ambient Relative Humidity |
0-90 %RH |
0-90 %RH |
|
Overall Dimensions |
350 mm (D) × 550 mm (W) × 800 mm (H) |
800 mm (D) × 900 mm (W) × 1300 mm (H) |
|
Weight |
50 kg |
250 kg |
|
Explosion-proof Rating |
Non-explosion-proof; optional Exd px IIC T4 |
ExdbebibmbpxbIICT4Gb/ ExtbibmbIIICT135℃ Db |
|
Data Output |
RS485 DB9, RJ45 |
RS485 DB9, RJ45 |
