JZ-YDYCL Mobile Sampling & Pre-Treatment System

Short Description:

The YDYCL-series is a sample-gas pre-treatment system specially designed for mobile-detection scenarios. It can be quickly unpacked and put into service under permissible conditions. The complete unit is integrated inside a heavy-duty carry case, featuring compact structure and simplified maintenance workflow, balancing speed and safety for gas-analysis operations. Even under complex working conditions, the system runs stably and reliably. It delivers clean sample gas with stable pressure, flow rate and dew-point (moisture content) to downstream analyzers.

Send email to us

Product Detail

Product Tags

Application Scenarios

Laboratory gas analysis

Analyzer performance verification

Pilot-plant gas analysis

Experimental process adjustment for process units

Ad-hoc temporary gas-measurement requirements

Standard & Optional Configurations

Manual multi-stream switching for sample-gas extraction, sampling and comparative analysis.

Multiple configuration combinations available according to process complexity:

1. Optional Gas-Liquid Separation Module: Multiple packing media for liquid interception and separation based on site conditions.

2. Optional Condensation Liquid-Removal Module: Adjustable dew-point setting ranging from 1 °C to 15 °C.

3. Optional Liquid-Discharge Pump: For liquid removal under negative-pressure and atmospheric-pressure conditions.

4. Optional Filters: Various types (visual-indicator, mist-eliminator), materials and multi-stage filtration precision grades.

5. Optional Interfering-gas Removal Modules: Drying, adsorption and absorption functions.

6. Optional Pre-analyzer Filter (Membrane + Filter Cartridge): Provides comprehensive protection for the downstream analyzer.

7. Optional Calibration Ball Valve: Used for overall calibration of the analysis system.

8. Optional Sampling Diaphragm Pump: Satisfies monitoring requirements under diverse pressure conditions.

Flow meters, pressure gauges and pre-analyzer filters are panel-mounted for direct visual inspection of sample-gas flow, pressure and filter fouling status.

Durable stainless-steel enclosure for long-term service life.

Rich optional modules; further custom solutions available for diverse requirements.

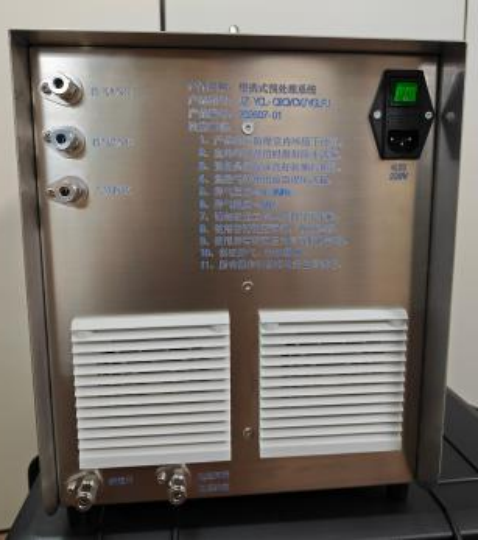

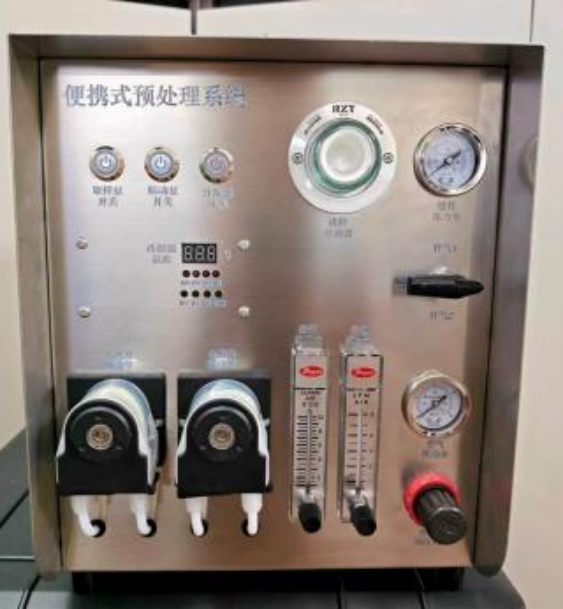

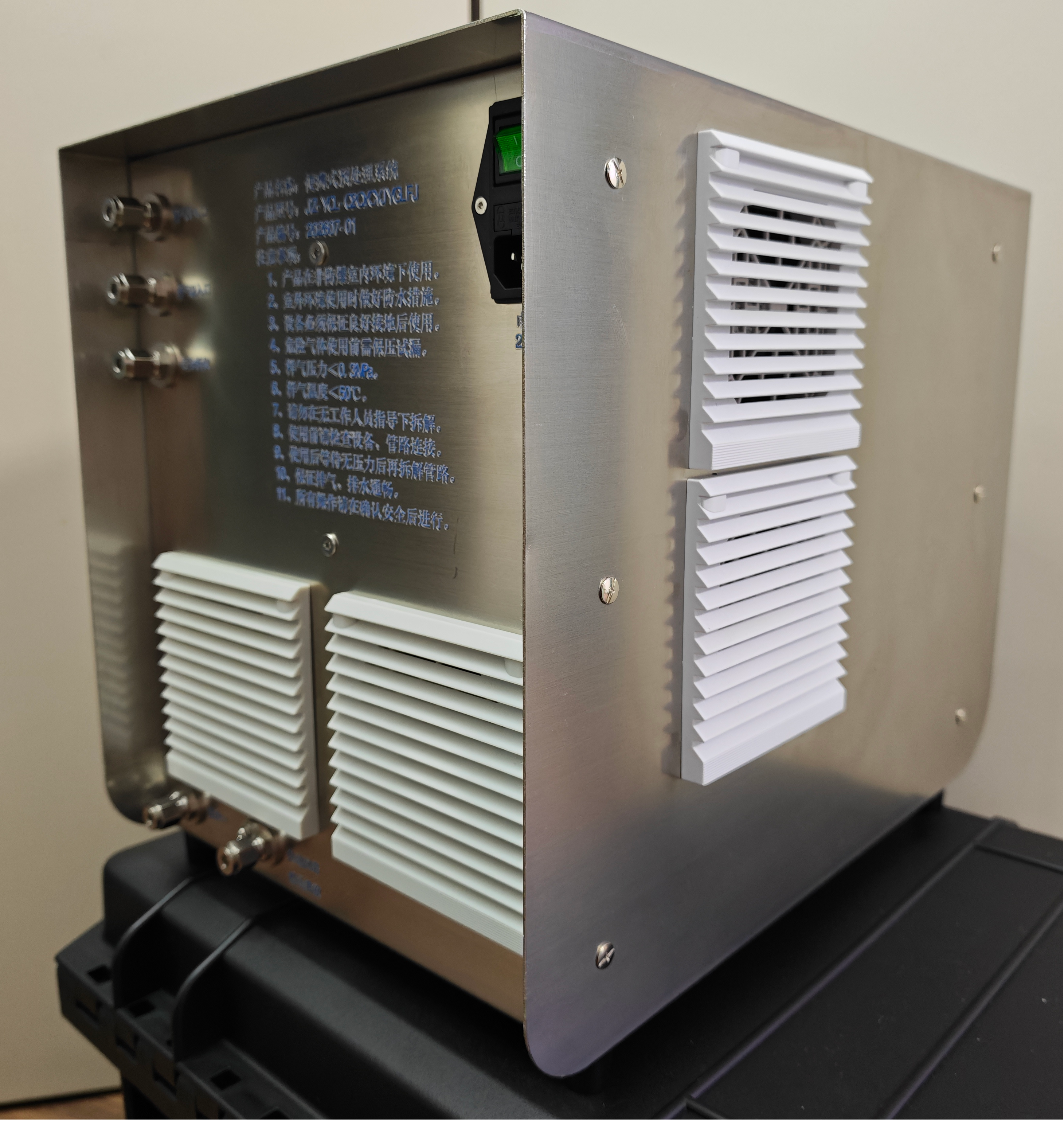

Product appearance

Technical Specifications

Item	Parameter
Sample-gas Inlet Pressure	< 10 MPa (sampling pump or pressure-regulating valve configured subject to sampling-point pressure)
Inlet Sample-gas Flow Meter	6 ~ 60 L/h
Sample-gas Temperature	-40 ℃ ~ 150 ℃ (heating / cooling measures configured subject to sampling-point temperature)
Wetted-component Materials	Optional: 304, 316L, PTFE, PFA, HC-276 (Hastelloy C-276)
Pipeline Materials	Optional: PTFE, PFA
Gas-path Connections	Ferrule fittings: 3 mm, 6 mm, 1/8”, 1/4”; hose fittings: 6 mm, 1/4” optional
Warm-up Time	< 15 min
Power Supply	100 ~ 240 VAC, 50 ~ 60 Hz
Main Unit Dimensions	450 mm (L) × 300 mm (W) × 350 mm (H)
Main Unit Weight	15 kg
Remarks	The mobile sampling & pre-treatment system shall be used in indoor non-hazardous (non-explosive) environments. Exact parameters and functions shall be customized according to on-site process conditions.
