RS2600FNPAT F₂ Online Analyzer
Non-destructive gas analysis: Direct gas measurement without component separation
Fast detection: Test results available within several seconds
Low maintenance: Tolerant to highly-corrosive gases; direct measurement with zero consumables (no chromatographic columns or carrier gas)
Broad measuring range: Detection limit down to 100 ppm level; full-scale range up to 100 %

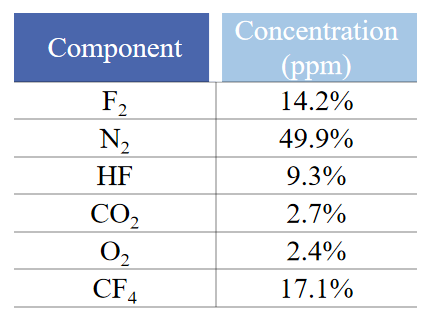

PPM-level gas detection in multi-component mixed gas

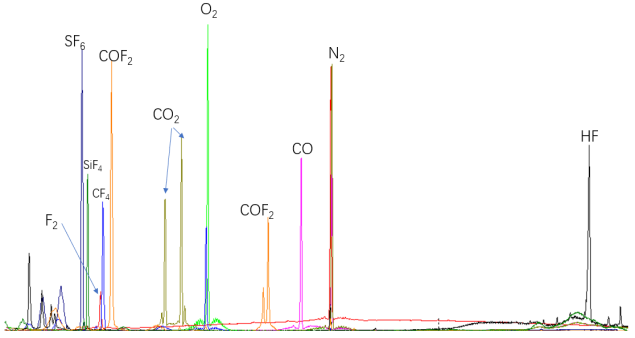

Typical Raman spectra of target gases

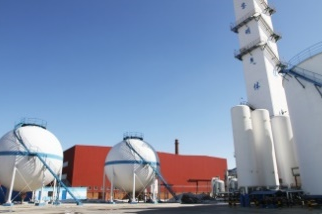

Monitoring fluorine-gas concentration during fluorine-gas generation

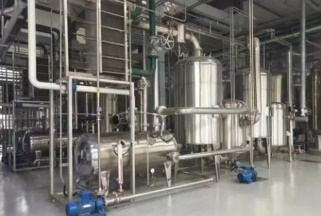

Monitoring impurity gases and fluorine-gas content in purification procedures
Monitoring feed gas and synthesis tail-gas for fluorination reactions

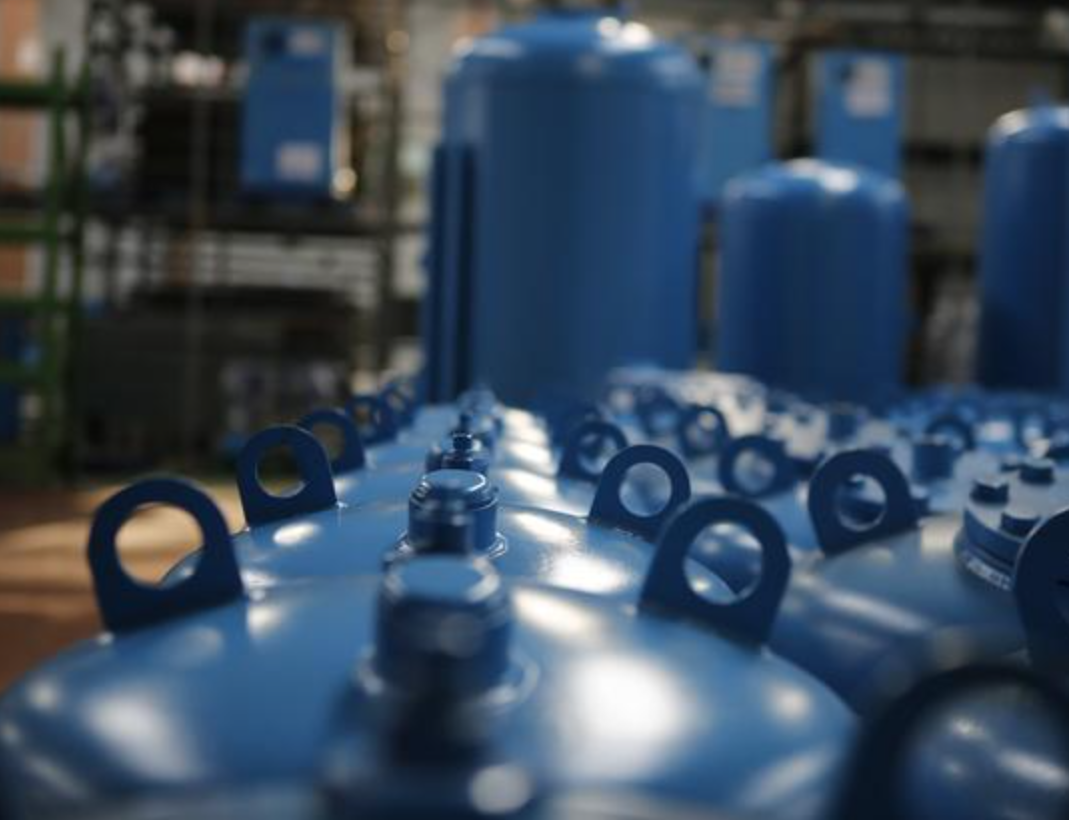

Composition control during gas mixing (fluorine-nitrogen blending)
|
Item |
Parameter |
| Working Principle | Raman scattering spectroscopy |
| Sample-gas Inlet / Outlet Port | 6 mm standard ferrule fitting |
| Sample-gas Pressure | < 1.0 MPa |
| Pressurizing-gas Inlet Port | 8 mm quick-connect tube fitting |
| Sample-gas Temperature | -50 ~ 40 °C |
| Maximum Total Cabinet Power | 3000 W |
| Pressurizing-gas Requirements | 0.4-0.8 MPa; clean dry oil-free impurity-free air at ambient temperature |
| Power Supply | 100-240 VAC, 50-60 Hz |
| Ambient Temperature | -20 ℃ ~ 50 ℃ |
| Ambient Humidity | 0-90 %RH |
| Cabinet Overall Dimensions | 800 mm (D) × 900 mm (W) × 1300 mm (H) |
| Total Weight | 250 kg |
| Cabinet Explosion-proof Rating | ExdbebibmbpxbIICT4Gb / ExtbibmbIIICT135℃Db |
| Communication Interface | RS485, RJ45 Ethernet; ModBus protocol supported |
