RS2601CGPAT Online Coal-Chemical Gas Analyzer
Simultaneous multi-component detection: Real-time concurrent monitoring of multiple gas components for coal-chemical working conditions
Fast measurement: All components above 1000 ppm can be detected within 1 minute
Superior corrosion resistance: Tolerates corrosive effect of H2S in sample gas
Low maintenance cost: No carrier gas or chromatographic columns required; simple pre-treatment system
Wide quantitative range: 0.1 % ~ 100 %
1.Improved measurement accuracy: Measurement immune to water-vapor interference for more reliable results
2.Timely process adjustment: Detection time reduced from several minutes (gas chromatography) to within one minute, enabling prompt process tuning
3.Lower operation-and-maintenance cost: No carrier gas or standard calibration gas required; near-zero operating consumption cost
4.Reduced deployment investment: 1-to-4 multiplexing design. One single analyzer supports multi-point monitoring to substantially cut hardware investment.
|
Application Scenarios |
Detectable Gas Components |
|
Coal-to-ethylene glycol, Coal-to-SNG, Ammonia synthesis |

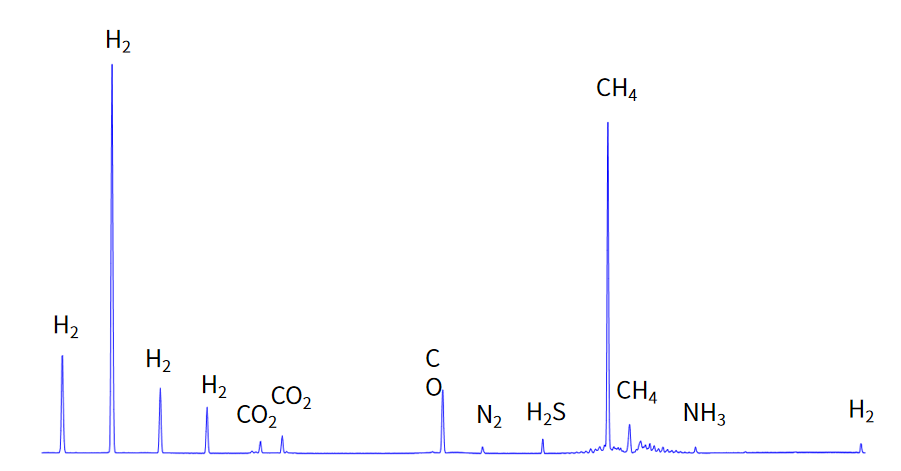

N2, H2, O2, CO, CO2, CH4, H2S, NH3, C2H4, C3H6, etc. |
|
Item |
Parameter |
|
Sample-gas Pressure |
1 kPa ~ 1 MPa |
|
Sample-gas Temperature |
-50 ℃ ~ +40 ℃ |
|
Sample-gas Flow Rate |
0.5 ~ 15 L/min |
|
Gas-path Connector |
Standard ferrule fitting; optional sizes: 3 mm, 6 mm, 1/8”, 1/4” |
|
Power Supply |
100-240 VAC, 50-60 Hz |
| Ambient Operating Temperature |
-20 ℃ ~ 50 ℃ |
|
Ambient Relative Humidity |
0 ~ 90 %RH |
|
Overall Dimensions |
800 mm (L) × 900 mm (W) × 1300 mm (H) |
|
Net Weight |
250 kg |
|
Data Output |
USB2.0, RS232/RS485 DB9, RJ45 |
|
Data Input |
12 V power supply for temperature-pressure sensor, RS485 |
