RS2601FG Series Online Fermentation Off-Gas Analyzer
Simultaneous multi-component measurement: Quantifies O2, CO2, N2, H2, CH4, H2S and other gases in a single measurement.
Second-level response: Single measurement < 10 s; captures real-time dynamic changes of microbial metabolism.
Maintenance-free operation: No consumables such as chromatographic columns or carrier gas; only routine inspection required.

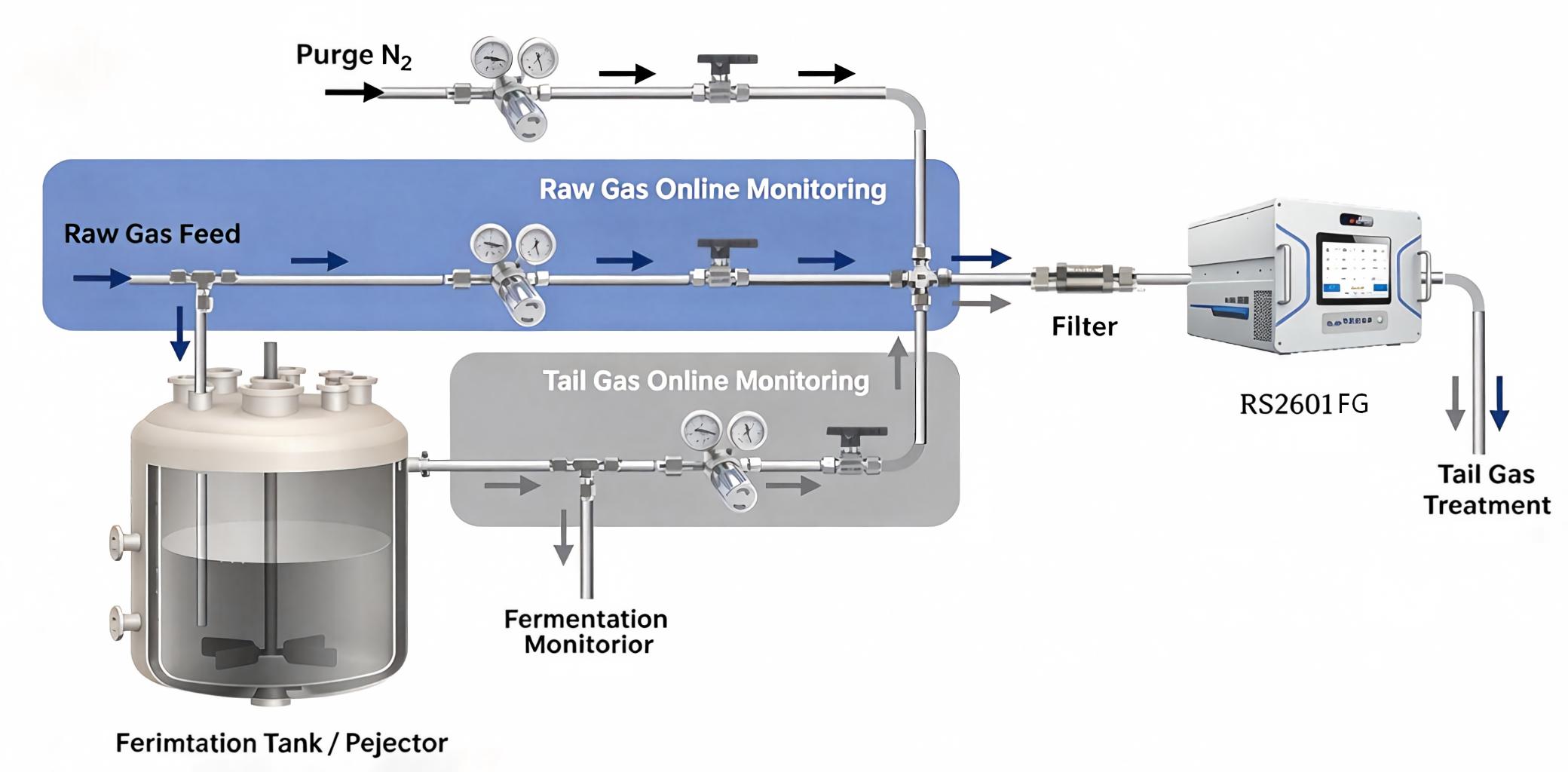

Zero microbial-contamination risk: Bypass-sampling non-intrusive monitoring without disturbing the fermentation system.

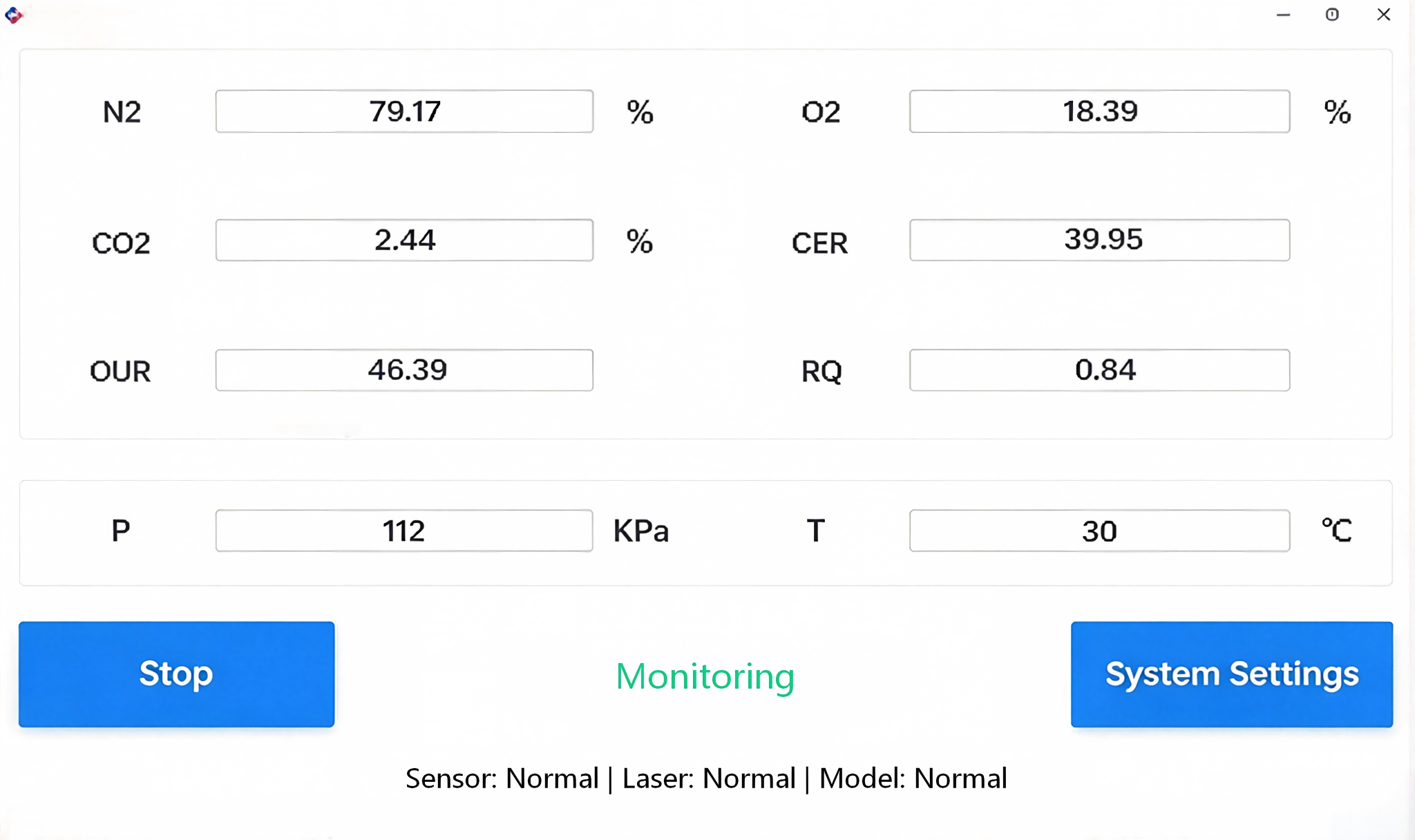

Metabolic-parameter calculation: Real-time computation of CER, OUR and RQ to optimize feeding and aeration strategies.
Multi-channel capability: Works with multi-stream gas pre-treatment system for continuous analysis of multiple fermenters.
|
Item |
Parameter |
| Sample-gas Pressure | ≤ 1 MPa |
| Sample-gas Temperature | Ambient temperature |
| Sample-gas Flow Rate | 0.5-15 L/min |
| Gas-path Connector | 6 mm ferrule fitting |
| Power Supply | 100-240 VAC, 50-60 Hz |
| Ambient Temperature | RS2601FGPAT: -20 ℃ ~ 50 ℃ |
| Ambient Humidity | 0-90 %RH |
| Dimensions | RS2601FG: 600 mm (D) × 485 mm (W) × 350 mm (H)
RS2601FGPAT: 800 mm (D) × 900 mm (W) × 1300 mm (H) |
| Weight | 40 kg |
| Data Output | RS232/RS485 DB9 port |
