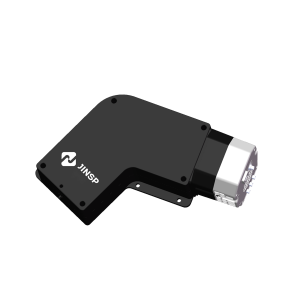

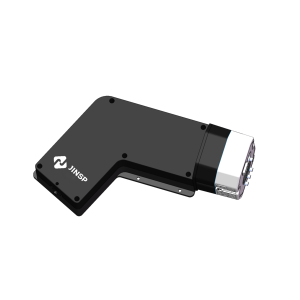

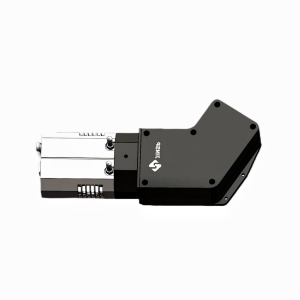

High-Throughput Transmission Fiber Spectrometer

Short description

Ultra-high sensitivity and luminous flux, VPH volume holographic transmission grating.
Extreme optical resolution, research grade cameras.
Laboratory and research applications.

微信图片_20240508091016

Technical highlights

JINSP high-throughput transmission-type fiber optic spectrometer utilizes a VPH volume holographic grating with a diffraction efficiency ~90%. Paired with an excellently designed optical path for imaging performance, its sensitivity can reach five times that of a reflective spectrometer. With a resolution twice as high as conventional spectrometers, it provides the best results for spectral detection. Additionally, it is equipped with a research-grade deep-cooling area array CCD camera, which has high quantum efficiency and signal-to-noise ratio. Moreover, it is also characterized by high stability and compact size, which is suitable for industrial equipment integration.
Among them, the ST50S can substitute and surpass traditional research-grade InGaAs spectrometers. It is an excellent choice for 1064 nm Raman spectroscopy detection systems with high sensitivity requirements.
The ST90S is suitable for 532 nm laser Raman spectroscopy detection systems, especially in gas Raman signal detection. It has outstanding comprehensive optical parameters, a spectral range of up to 4200 cm- 1. and a resolution of up to 4cm- 1.It can replace largem,imported, research-grade reflective spectrometers.
The ST100S can be integrated into research- grade 785 nm laser Raman systems for Raman spectroscopy detection of materials
and biological samples, with a resolution down to 3cm- 1 .

Features

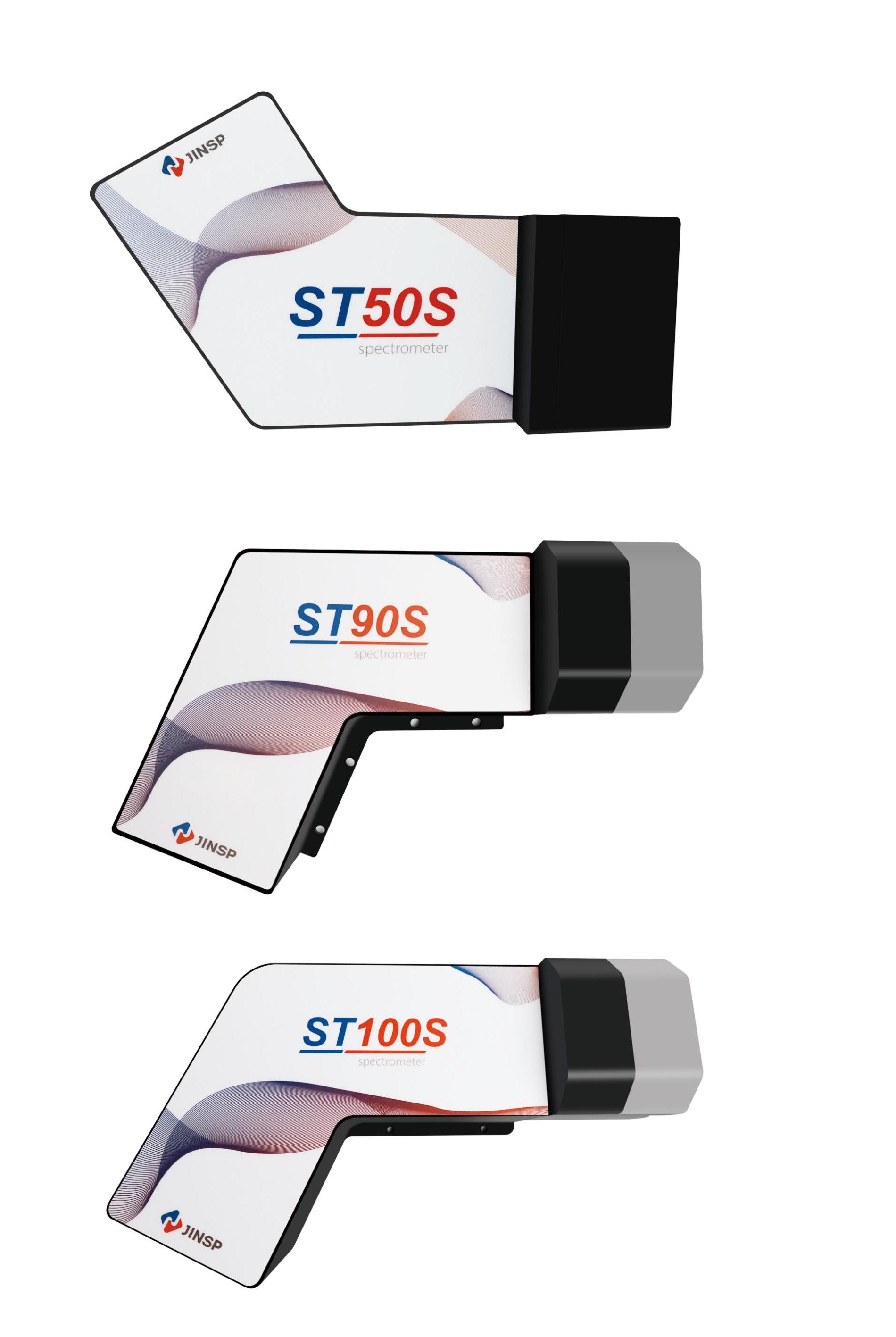

a93fd608faec5d548e2b64f4454d0c1

•   VPH grating, diffraction efficiency reaches 90%

•   Zero aberration design, diffraction-limited resolution

•   Compatible with various PI and Andor scientific research cryogenic cameras, extremely low dark current noise

•   High-throughput design, numerical aperture 0.25

•   Compatible with SMA905 optical fiber and Φ10mm multi- core optical fiber interface, supporting multi-channels

•   High stability for laboratory and industrial applications

Product specifications

Model ST50S ST90S ST100S

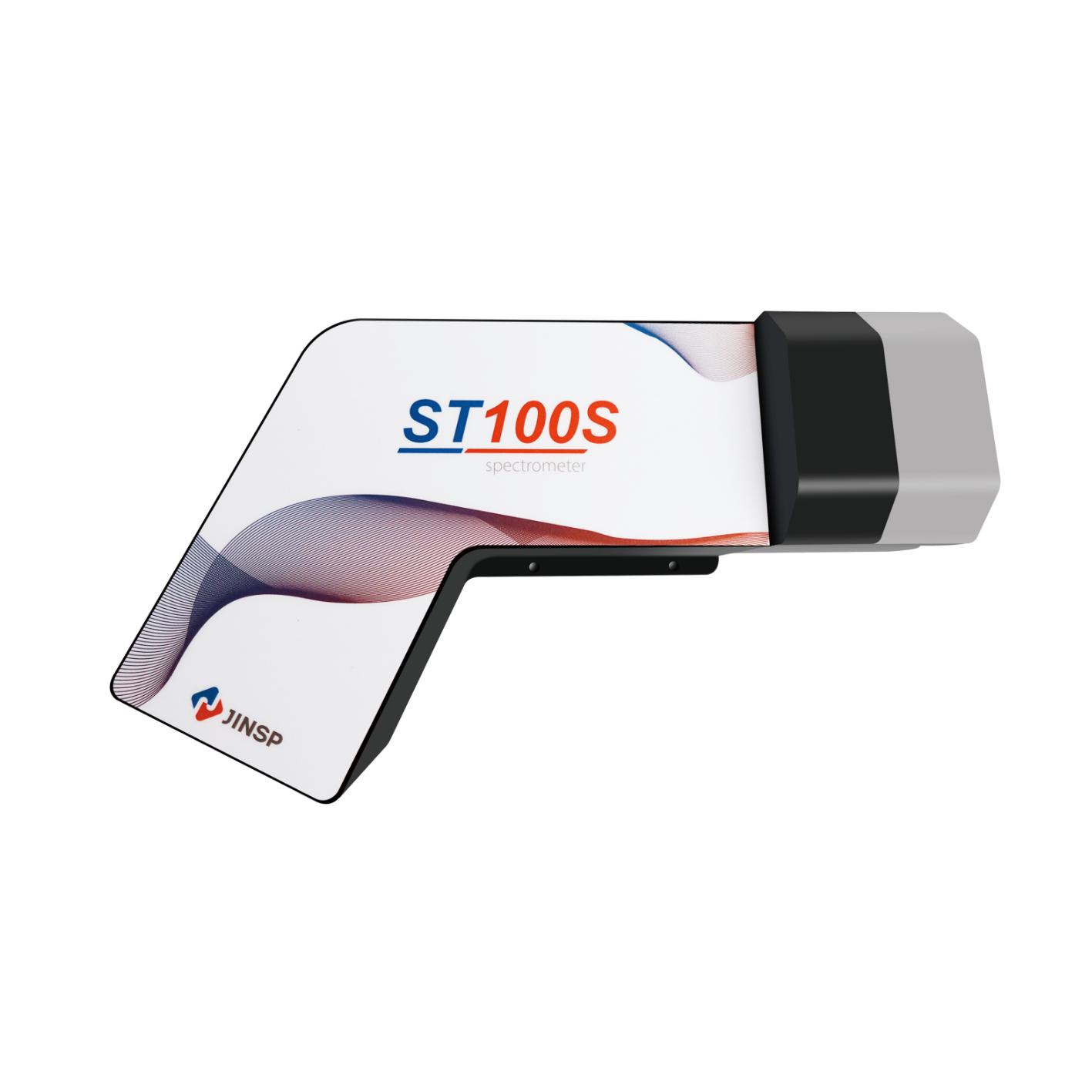

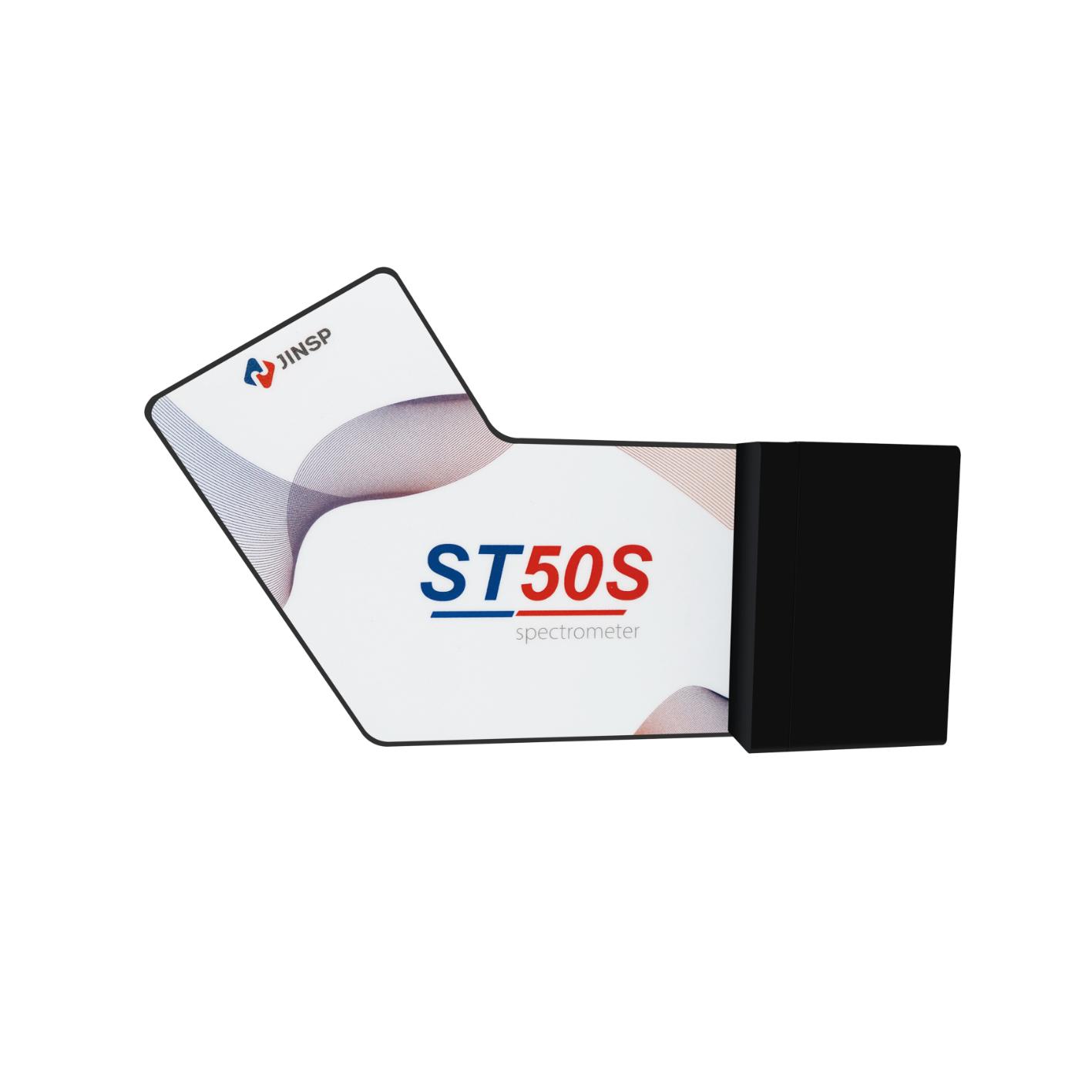

Design/Appearance  ert (555)  ert (556)  ert (557)
Key features High sensitivity, High resolution High sensitivity, High signal-to-noise ratio
High signal-to-noise ratio, High reliability
Chip type Hamamatsu two-stang InGaAs Andor ivac 316 Andor ivac 316
Weight 4Kg 6Kg 6Kg
Entrance slit width 0.25nm,corresponds to 6cm-1(25μm slit) 0.14nm,corresponds to 5cm-1(25μm slit) 0.25nm,corresponds to 3cm-1(25μm slit)
Spectral range 1080nm~1330nm  corresponds to 140~1880cm- 1 540nm~686nm corresponds to 260~4200cm- 1 785nm~988nm  cprresponds to 0~2600cm-1
Power supply DC 5V DC 12V DC 12V
Operating current 3A 3A 3A
Dimension 253mm*152mm*93mm 330mm×216mm×130mm 330mm×216mm×130mm
Grating type VPH volume holographic transmission grating
Input fiber interface SMA905 or Φ10mm multi-core optical fiber
Data output interface USB2.0
ADC bit depth 16bit
Operating   temperature -20°C ~60℃
Storage temperature -30°C ~70℃
Operating humidity 0~90%RH

Application Testing

Application areas

•  Scientific research grade Raman spectroscopy detection system

785 nm confocal Raman microscope system

532 nm confocal Raman microscope system

1064 nm confocal Raman microscope system

•  Industrial Raman System Integration

Online Raman detection - pharmaceutical, bio-fermentation, chemical reaction process detection

Gas online detection and process analysis

Chemical industry online, biomedical

Typical applications

ST100S detects a 0.01% ethanol signal (500mW, 1s)

ST90S for gas Raman spectroscopy, 1s air Raman spectrum (5W)

1709889781639

ST100S with multi-core fiber for multi-channel spectral acquisition

4e97b7a3376c5d7c76c9c0e7a6b4150
