If we compare a fermenter to a living organism, then the microbial cells inside it are the "heart" and "brain" of that organism. The fermentation process, in turn, is a precise and dynamic biochemical symphony orchestrated by hundreds of millions of microbial cells. For process engineers, the core challenge lies in: how do we "hear" this symphony and understand its melody and rhythm?
The answer lies in the various parameters of the fermentation process. They are like the "vital signs" of a living being, reflecting in real time the physiological state of the cells and changes in their environment. Today, we will systematically review this critical "monitoring checklist," categorizing fermentation parameters into three groups—physical, chemical, and biological—and delve into the significance behind each.

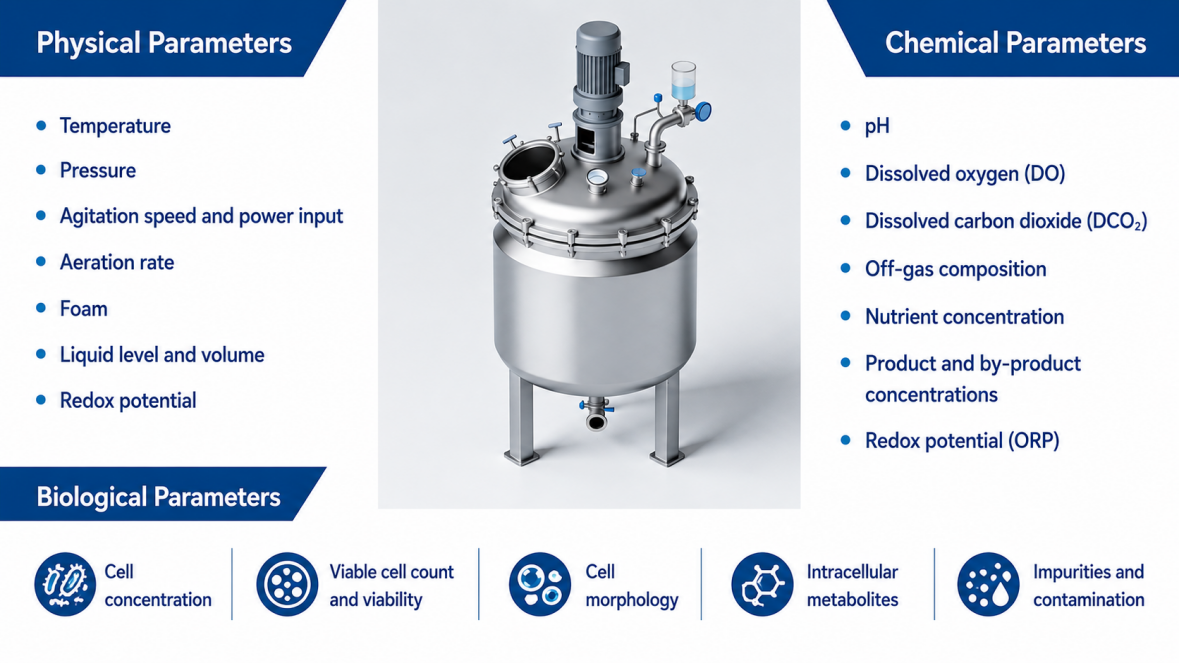

Physical Parameters: The "Skeleton" and "Pulse" of the Process
Physical parameters primarily describe the macro-environment and engineering state of the fermentation process. They are relatively easy to monitor online and serve as the foundation for process control.
1. Temperature
l What it is: The average temperature of the fermentation broth.
l Why it matters: Temperature directly affects enzyme reaction rates, cell membrane fluidity, nutrient uptake, and metabolic pathways. For example, in tetracycline fermentation, temperature influences the ratio of tetracycline to chlortetracycline synthesized by Streptomyces aureofaciens.
l Monitoring significance: Maintaining the optimal temperature—typically a balance point between growth and product synthesis—is fundamental to ensuring the correct metabolic direction and rate.
2. Pressure
l What it is: The gas-phase pressure at the top of the fermenter.
l Why it matters: It affects the solubility of oxygen and carbon dioxide (according to Henry's Law). Maintaining positive pressure is a critical barrier against contamination by foreign microorganisms.
l Monitoring significance: Controlling vessel pressure is an indirect means of regulating dissolved oxygen (DO) and removing CO₂, though it must be balanced against equipment constraints, energy consumption, and CO₂ dissolution effects.
3. Agitation Speed and Power Input
l What it is: The rotational speed of the impeller and the actual power consumed (often expressed as power per unit volume, P/V).
l Why it matters: Together, they determine the degree of mixing, shear stress intensity, and gas-liquid mass transfer efficiency (KLa) within the vessel. High shear forces can damage sensitive cells, such as certain filamentous fungi.
l Monitoring significance: This is a key basis for scale-up (e.g., maintaining constant P/V or impeller tip speed) and a core operational variable for optimizing DO and mixing.
4. Aeration Rate
l What it is: The volume of sterile air introduced into the fermenter per unit time (often expressed as VVM or superficial gas velocity).
l Why it matters: It supplies oxygen, removes exhaust gases (such as CO₂), and also affects foam generation and the fluid dynamics within the vessel.
l Monitoring significance: Working in concert with agitation, it is a primary "handle" for controlling DO levels. Online flow meters are standard equipment.
5. Foam
l What it is: The height or state of foam above the liquid surface.
l Why it matters: Excessive foam reduces the working volume ratio, increases the risk of contamination, and may impair exhaust and oxygen transfer.
l Monitoring significance: Triggers automatic control for antifoam addition or mechanical foam breaking, ensuring process safety.
6. Liquid Level and Volume
l What it is: The height or total volume of liquid within the fermenter.
l Why it matters: In fed-batch or continuous fermentation, this is used to control feed rates and determine harvest points, ensuring material balance.
l Monitoring significance: Enables precise feeding control and process reproducibility.
Chemical Parameters: The "Raw Materials" and "Products" of Metabolism
Chemical parameters directly reflect the consumption of medium components and the generation of metabolites, providing critical insight into cellular metabolic activity.
1. PH
l What it is: The acidity or alkalinity of the fermentation broth.
l Why it matters: pH affects enzyme activity, the ionization state and transmembrane transport of nutrients, and the direction of metabolic pathways. For example, Aspergillus niger produces citric acid at pH 2–3, but oxalic acid under near-neutral conditions.
l Monitoring significance: One of the most critical online parameters. Changes in pH sensitively reflect metabolic activities such as acid production (e.g., lactic acid), alkali production, or ammonium salt utilization by the microorganisms, serving as an important basis for adding acids, bases, or precursors.
2. Dissolved Oxygen Concentration
l What it is: The concentration of molecular oxygen dissolved in the fermentation broth (DO), often expressed as a percentage of saturation.
l Why it matters: For aerobic fermentation, oxygen is the final electron acceptor for cellular respiration and energy metabolism. When DO falls below the critical oxygen concentration, cellular metabolism becomes inhibited.
l Monitoring significance: Reflects the real-time balance between oxygen supply and demand. A sharp change in DO can be an early warning sign of contamination, a metabolic shift, or equipment failure (such as agitator malfunction).
3. Dissolved Carbon Dioxide
l What it is: The concentration of CO₂ dissolved in the fermentation broth.
l Why it matters: CO₂ is a metabolic end product. High dissolved CO₂ can inhibit certain enzyme activities or affect cell membrane function, and is particularly critical in animal cell culture.
l Monitoring significance: Helps optimize exhaust and pressure control to avoid inhibition caused by CO₂ accumulation.
4. Off-Gas Composition (O₂ and CO₂)
l What it is: The volume fractions of oxygen and carbon dioxide in the exhaust gas.
l Why it matters: From the difference between inlet and outlet gas compositions, we can calculate, in a non-invasive manner, the oxygen uptake rate (OUR) and carbon dioxide evolution rate (CER) of the cells, and from these derive the respiratory quotient (RQ) .
l Monitoring significance: This serves as a "window" into the metabolic physiology of the cells. The RQ value can indicate the type of carbon source being utilized (e.g., carbohydrate metabolism vs. lipid metabolism). Abnormal changes in OUR/CER are strong indicators of contamination or metabolic stagnation.
5. Nutrient Concentration
l What it is: The residual concentration of key nutrients, such as glucose, ammonium salts, specific amino acids, or precursors.
l Why it matters: Prevents substrate depletion (which halts growth) as well as substrate excess (which causes inhibition, such as the glucose effect, or accumulation of byproducts).
l Monitoring significance: Forms the basis for precision feeding. Currently, glucose and ammonium ions have relatively mature online sensors (e.g., enzyme electrodes), while more components rely on spectroscopic techniques such as near-infrared (NIR) spectroscopy for online prediction.
6. Product and Byproduct Concentration
l What it is: The concentration of the target product (e.g., antibiotics, enzymes, antibodies) and major byproducts (e.g., lactic acid, acetic acid).
l Why it matters: Directly measures fermentation efficiency and guides the determination of fermentation endpoints. Byproduct accumulation can inhibit growth or product synthesis.
l Monitoring significance: Online monitoring enables the vision of real-time release testing (RTRT). Raman spectroscopy has shown unique potential in monitoring intracellular products, such as inclusion body proteins.
7. Oxidation-Reduction Potential (ORP)
l What it is: A comprehensive indicator of the oxidation-reduction capacity of the fermentation broth.
l Why it matters: Reflects the balance of reducing power (such as the NADH/NAD⁺ ratio) in cellular metabolism, and is closely related to the production of certain anaerobic or microaerobic fermentation products (such as certain solvents and organic acids).
l Monitoring significance: Serves as a supplementary indicator, providing information for understanding specific metabolic pathways.
Biological Parameters: Cell "State" and "Performance"
Biological parameters directly describe the quantity, activity, and physiological state of the cell population itself, representing the ultimate target of process control.
1. Cell Concentration
l What it is: The total amount of cells per unit volume of fermentation broth, which can be expressed as dry weight, wet weight, or packed cell volume.
l Why it matters: This is the basis for calculating the specific growth rate (μ) and specific consumption/production rates (qₛ/qₚ). Changes in cell concentration directly reflect the growth phase.
l Monitoring significance: Online turbidity sensors can measure total biomass, while online capacitance sensors can specifically detect viable cell concentration, distinguishing live from dead cells—offering even greater value.
2. Cell Viability and Activity
l What it is: Beyond mere concentration, this describes the metabolic vigor of the cells, as indicated by parameters such as ATP content, membrane integrity, and specific enzyme activities.
l Why it matters: High cell concentration does not equal high activity. A decline in cell viability signals the onset of the death phase or environmental stress.
l Monitoring significance: Trends in online capacitance values can indirectly reflect activity. More advanced techniques, such as online flow cytometry or Raman spectroscopy, hold promise for providing more direct activity fingerprints.
3. Cell Morphology
l What it is: The shape, size, branching pattern (for filamentous organisms), or presence of aggregates.
l Why it matters: Morphology is closely linked to growth phase, product synthesis capacity, and the rheological properties (viscosity) of the fermentation broth. For example, the antibiotic-producing capacity of penicillin-producing strains is associated with specific mycelial morphologies.
l Monitoring significance: Online microscopy combined with image analysis systems is progressively transforming this traditionally offline observational metric into an online one.
4. Intracellular Metabolites
l What it is: The concentrations of key intermediate metabolites within the cell, such as NADH, nucleotides, and organic acid pools.
l Why it matters: Directly reflects metabolic flux distribution and the "internal environment" of cellular physiology.
l Monitoring significance: Raman spectroscopy is currently one of the few technologies capable of in-situ, label-free, real-time monitoring of specific intracellular metabolite changes, serving as a bridge to "peering inside" the cell.
5. Contaminants and Contamination
l What it is: The presence of foreign bacteria, bacteriophages, or mycoplasma.
l Why it matters: Contamination leads to complete fermentation failure and represents a major risk in production.
l Monitoring significance: Abnormal patterns in online parameters (such as DO, pH, and OUR) serve as early warnings of contamination. Specific online detection technologies (such as bacteriophage-based biosensors) are still under development.

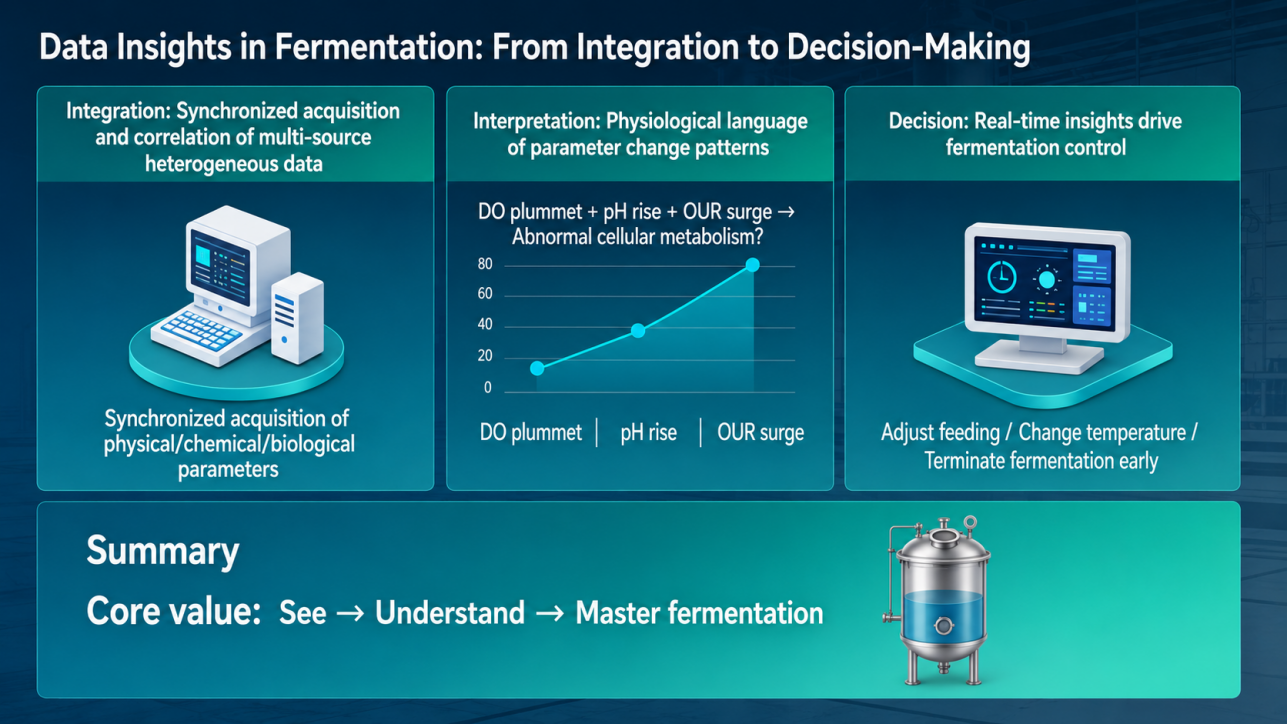

Conclusion: From Checklist to Insight
This "vital signs" checklist provides us with a complete map for monitoring the fermentation process. However, the true challenge—and value—lies not in measuring any single parameter or even a few, but in:
Integration: How do we synchronously acquire and correlate these multi-source, heterogeneous data streams?
Interpretation: How do we decode the "physiological language" of the cell population from the patterns of parameter changes? For example, what might a sudden drop in DO accompanied by a rise in pH and a surge in OUR signify?
Decision-Making: How do we leverage real-time insights to automatically or semi-automatically make adjustments—such as modifying feed rates, changing temperature, or terminating the fermentation early?
This is precisely the core theme we will explore in depth going forward: how to use these "vital signs" not only to "see" fermentation but to truly "understand" and "master" it.
