Analysis of the Difficulties in Detecting Hexafluoropropylene Oxide Isomers

Hexafluoropropylene oxide (HFPO) is a key monomer used in the synthesis of perfluoropolyethers and fluorosurfactants. During its synthesis, hexafluoroacetone (HFA, C₃F₆O) and pentafluoropropionyl fluoride (PFPF, C₃F₅O) are often generated as by-products. Among these, HFA and HFPO are isomers of each other, while PFPF is the ring-opening rearrangement product of HFPO. Residual impurities of these three compounds can inhibit polymerization reactions and degrade the weather resistance and medium resistance of fluorinated products. Due to their similar molecular structures, high volatility, and chemically reactive nature, traditional detection methods have inherent limitations. In recent years, Raman spectroscopy has emerged as a new technological pathway for online monitoring of the HFPO production process, leveraging its unique advantages.

Core Bottlenecks of Traditional Detection Methods

1. Chromatographic Separation and Thermal Stability Issues

Boiling Points and Retention Behavior: Although HFPO (approx. –42°C), HFA (approx. –27°C), and PFPF (approx. +21°C) differ in boiling points, their retention behaviors on conventional non-polar or weakly polar capillary columns are similar, making baseline separation difficult to achieve. Studies have shown that indirect strategies such as derivatization to methyl pentafluoropropionate can circumvent the direct separation problem, but they cannot distinguish between the original isomers and isomerization products.

Activity and Stability: The active acyl fluoride group (–COF) in PFPF readily reacts with the stationary phase of the chromatographic column or trace amounts of water, leading to peak tailing and response drift. HFPO is prone to isomerization rearrangement at elevated temperatures, further interfering with accurate quantification.

2. Insufficient Response from Conventional Detectors

Limitations of FID: The flame ionization detector (FID) exhibits extremely low ionization efficiency for perfluorinated compounds, resulting in significantly higher detection limits for HFA and PFPF, which fails to meet ppm-level quality control requirements.

Mass Spectrometry Issues: In LC-MS/MS analysis, HFPO-type compounds exhibit significant in-source fragmentation, diluting the precursor ion signals. In GC-MS mode, the perfluoroalkyl fragment ions (e.g., CF₃⁺, C₂F₅⁺) of the three compounds heavily overlap, and characteristic peaks are easily masked by noise at low concentrations, limiting qualitative capabilities.

3. Sample Stability Interference

All three compounds are prone to adsorption on the inner walls of stainless steel pipelines and sampling containers, with significant adsorption losses at low concentrations. PFPF hydrolyzes rapidly upon contact with trace moisture, HFA readily forms stable hydrates with water, and HFPO undergoes isomerization under heating. These changes result in low recovery rates and poor repeatability, serving as key sources of interference during sampling and injection.

Application of Raman Spectroscopy in Isomer Detection Analysis

Technical Principle: Raman spectroscopy is based on the characteristic vibrational fingerprint peaks of molecules and offers the unique advantages of being non-destructive, rapid, and suitable for online gas analysis.

Feasibility Basis: The feasibility of using Raman spectroscopy for structural identification of perfluorinated compounds has been validated. The perfluorocarbon skeleton exhibits characteristic "fingerprint" bands: the –CF₂– group shows a deformation vibration at approximately 378 cm⁻¹, and the combined vibrations of –CF₃ and –CF₂– produce strong characteristic peaks at approximately 751 cm⁻¹ and 813 cm⁻¹. Studies have shown that compounds with different functional groups exhibit distinguishable spectral peak differences in the wavenumber ranges of 200–1000 cm⁻¹ and 1000–1400 cm⁻¹. Density functional theory (DFT) calculations have further verified the reliability of Raman spectral predictions, with the root mean square deviation between theoretical calculations and measured results within 3.4–8.6 cm⁻¹.

Isomer Discrimination Capability: The above methodology provides a direct basis for distinguishing HFPO, HFA, and PFPF. The key structural differences among the three substances are: HFPO contains a three-membered epoxy ring, HFA contains a carbonyl group, and PFPF contains an acyl fluoride group. Raman spectroscopy is highly sensitive to functional group differences. The key vibrational peaks of the three structural types are located in different wavenumber regions with distinguishable peak shapes, thus theoretically enabling the identification and online monitoring of the three isomers.

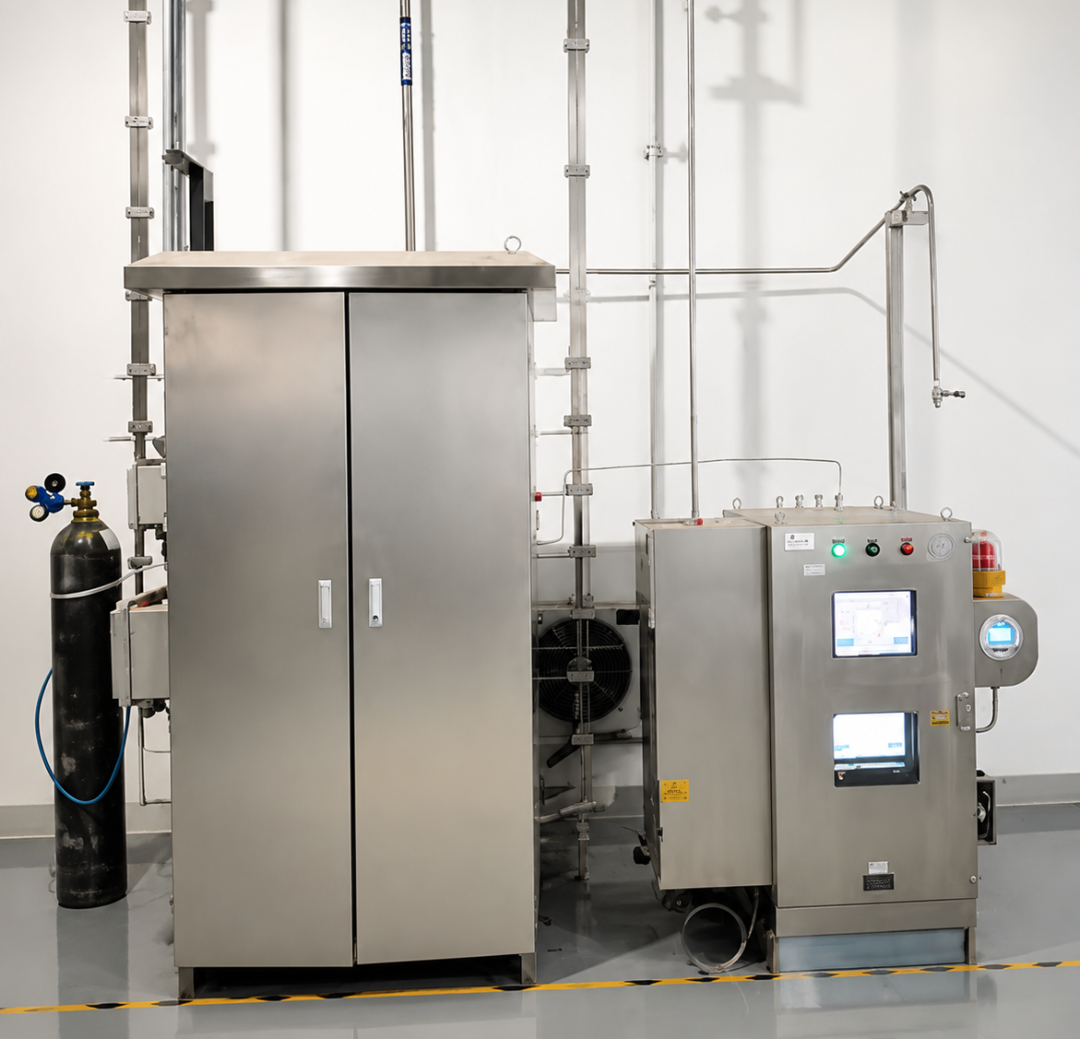

Online Monitoring Instrument: To address the industry pain points in HFPO production—such as complex component mixtures, difficulty in distinguishing isomers/by-products, and lagging offline analysis—the RS2600 Raman Gas Analyzer from JZ Instruments provides an efficient online monitoring solution. By establishing a Raman spectral analysis model for six key components in the HFPO process, the instrument enables simultaneous detection of multiple components with a response time of < 2 seconds and a detection limit reaching the ppm level.

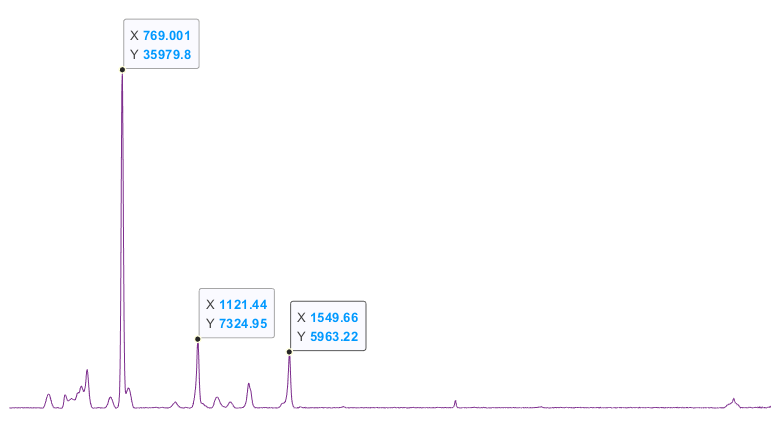

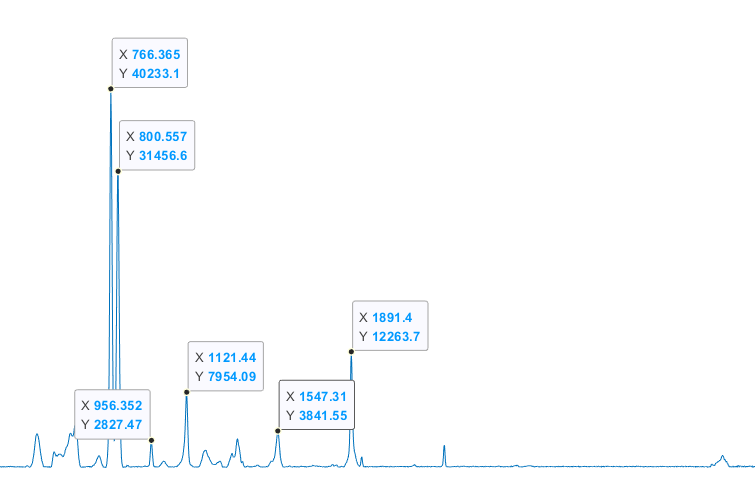

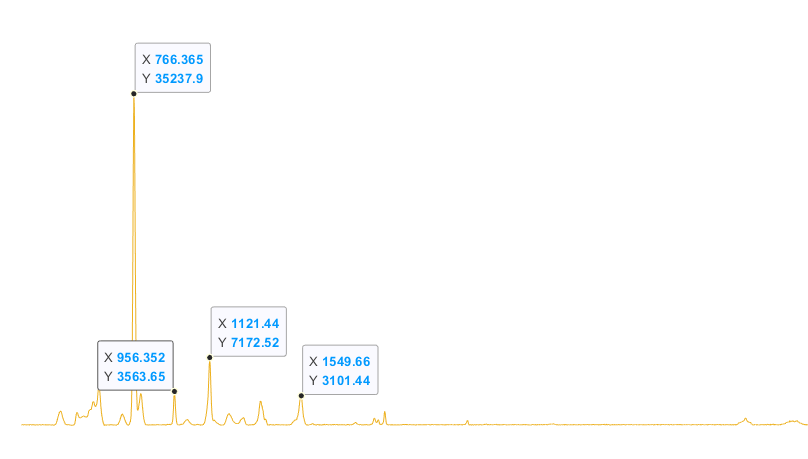

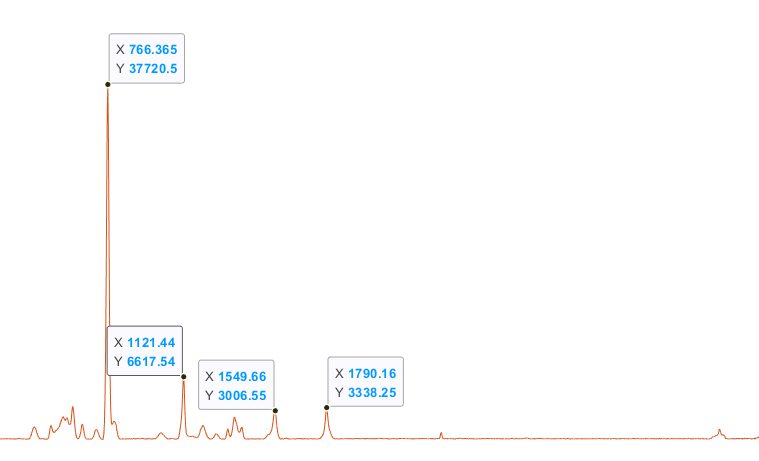

The project has completed spectral validation of typical mixed systems containing HFPO with O₂, CO₂, hexafluoropropylene, hexafluoroacetone, formyl fluoride, and acetyl fluoride, demonstrating that Raman spectroscopy can effectively distinguish the characteristic signals of each component. This provides reliable technical support for online identification of HFPO isomers and real-time process control.
