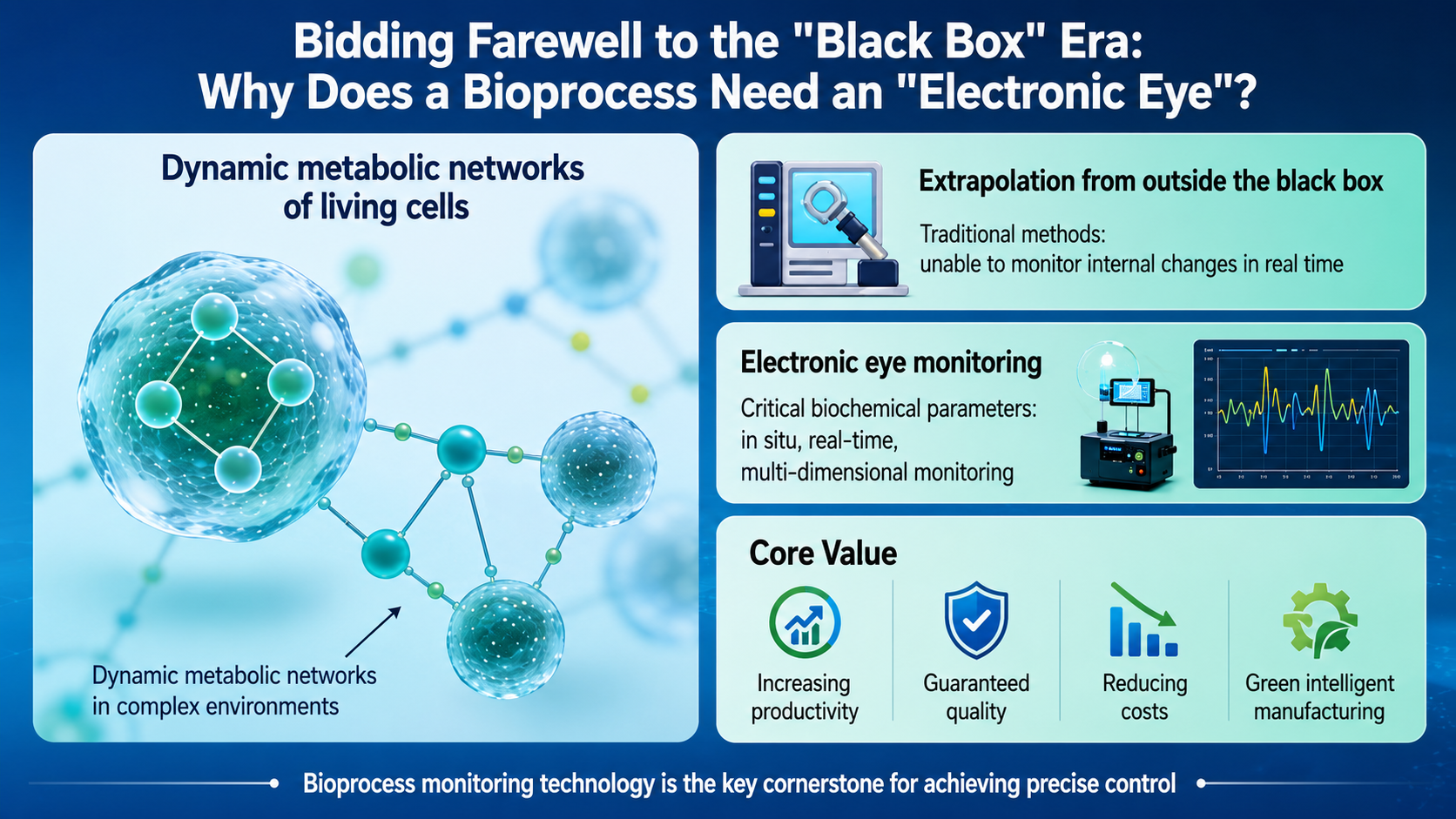

In bioprocess fermentation workshops, engineers frequently face a common dilemma: the fermenter before them resembles a vast "black box." We know what goes in and what ultimately comes out, but regarding the complex life activities occurring within the vessel—when microorganisms become starved, when metabolic shifts take place, how products accumulate—we often can only rely on limited offline sampling and post-hoc analysis to make educated guesses.
This "blind men and the elephant" approach to production gives rise to numerous pain points: feeding timing dependent on experience, contamination detected too late, batch-to-batch quality variability, and process scale-up failures... Each trial-and-error attempt comes at the cost of time, raw materials, and significant economic losses.
However, with the advancement of Process Analytical Technology (PAT) and advanced sensing technologies, equipping bioprocesses with "electronic eyes" to achieve the transformation from a "black box" to a "transparent factory" has become both feasible and imperative.

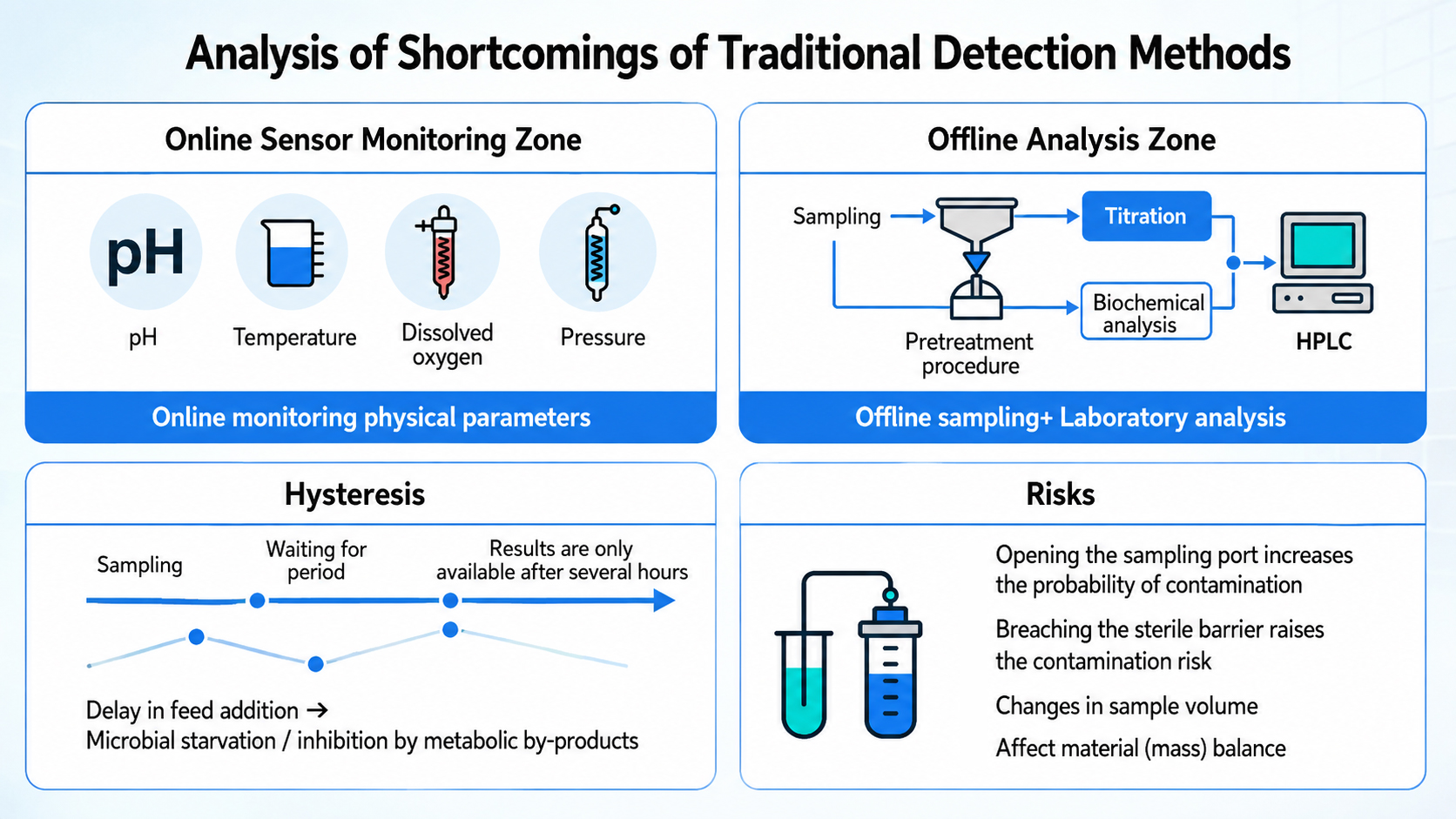

The "Time Trap" and Risks of Traditional Offline Detection
Traditional bioprocess control relies on online sensors for physical parameters such as pH, temperature, and dissolved oxygen (DO). While undoubtedly important, these are more akin to instruments monitoring "vital signs" and cannot directly inform us of the cells' "thoughts and actions".
For critical biochemical parameters that truly determine yield and quality—such as glucose, amino acids, key metabolites (e.g., lactate, acetate), product titers, and even viable cell density—the industry commonly employs an offline sampling + laboratory analysis model (e.g., HPLC, biochemical analyzers). This model suffers from two fatal shortcomings:
1. Severe time lag: From sampling and pretreatment to obtaining results, the process often takes several hours. By the time the analytical report is available, the metabolic state inside the vessel may have already changed, causing the optimal intervention window to be missed. For example, feeding delays may lead to microbial "starvation" and entry into the death phase, or metabolic overflow may produce large quantities of inhibitory byproducts.
2. Risk of contamination and perturbation: Each time a sampling valve is opened, it is a gamble that compromises the sterile barrier, increasing the probability of contamination. At the same time, sampling itself alters the vessel volume and mass balance, with particularly significant effects on small-scale fermenters or sensitive cell cultures.
How Do "Electronic Eyes" Illuminate the "Black Box" of Bioprocesses?
The so-called "electronic eyes" refer to advanced online sensing technologies capable of in-situ, real-time, and continuous monitoring of critical biochemical parameters. Like a pair of tireless eyes, they look directly into the depths of the fermentation broth, converting complex biochemical reactions into real-time data streams.

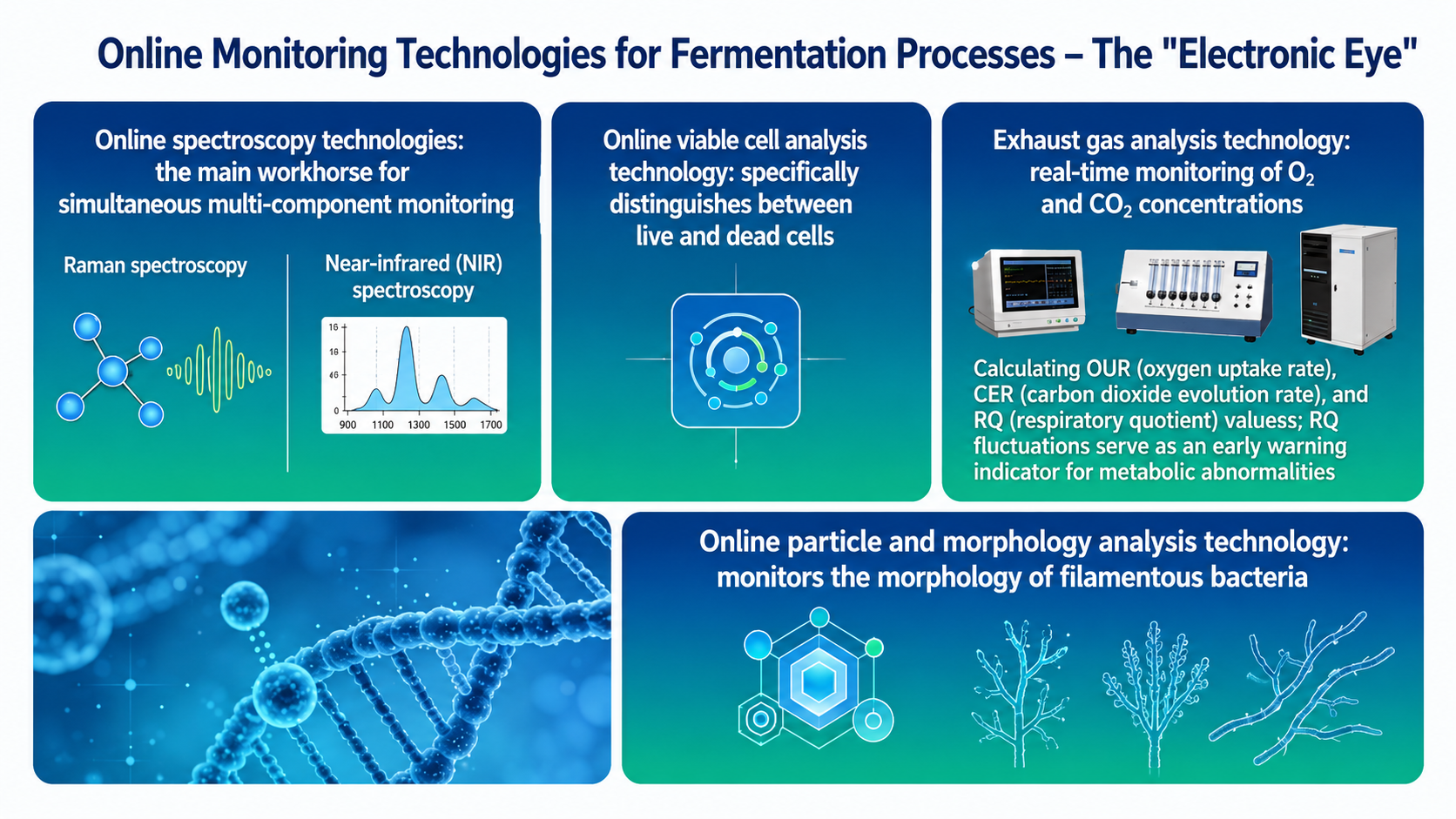

At present, several mainstream technologies are serving as the core of this "electronic eye":
Online Spectroscopy
This is the primary tool for achieving simultaneous multi-component monitoring. Among these, Raman spectroscopy is particularly well-suited for aqueous systems—it detects the unique vibrational "fingerprint" of molecules, enabling quantitative determination of glucose, lactate, products, and other indicators within minutes, with virtually no interference from water. Near-infrared (NIR) spectroscopy, on the other hand, relies on overtones and combination bands of hydrogen-containing groups (e.g., O–H, N–H, C–H), making it especially suitable for rapid screening and monitoring of solid raw materials, high-concentration slurries, and certain liquid systems. Together, these technologies have enabled a leap from "guessing concentrations" to "seeing concentrations."
Online Viable Cell Analysis
Based on principles such as capacitance, this technology can specifically distinguish and quantify viable versus dead cells, providing the most authentic biomass data. It is the gold-standard metric for calculating specific growth rates, determining fermentation phases, and optimizing feeding strategies—turning cell growth from a "vague estimate" into a "clear and countable" parameter.
Off-Gas Analysis
Through process mass spectrometry, gas Raman, or NDIR, this technology precisely and continuously monitors inlet and outlet gas concentrations of O₂ and CO₂, from which the oxygen uptake rate (OUR), carbon dioxide evolution rate (CER), and respiratory quotient (RQ) are calculated. Subtle fluctuations in the RQ value often serve as early and sensitive signals of metabolic pathway shifts or changes in cellular physiological states, providing earlier warnings of process abnormalities than conventional parameters.
Online Particle and Morphology Analysis
For fermentation processes involving filamentous organisms, cell morphology and aggregation state directly affect mass transfer and productivity. Technologies such as focused beam reflectance measurement (FBRM) enable real‑time monitoring of particle size and count changes, providing direct evidence for controlling mycelial morphology and optimizing the fermentation environment.
From "Seeing" to "Foreseeing": A Data-Driven Closed-Loop for Intelligent Control
With "electronic eyes" in place, what we gain is not merely data, but rather understanding and control over the process. This enables a leap from passive monitoring to active optimization:
Precision Feeding and Metabolic Regulation
Real-time monitoring of glucose concentration enables precise feedback-controlled feeding, avoiding substrate excess (leading to byproduct accumulation) or deficiency (leading to growth arrest). Detecting metabolic transition points (e.g., the shift from growth to product formation) allows timely strategy adjustments to maximize product synthesis
Early Anomaly Warning
Abnormal fluctuations in metabolic parameters (such as RQ) often signal contamination, phage attack, or abnormal cell states earlier than endpoint indicators (e.g., titer decline) or physical parameters (e.g., DO rise), buying valuable time to salvage batches
Process Scale-Up and Consistency Assurance
Online data provides a massive foundation for establishing reliable digital models and process fingerprints. By comparing multi-parameter trend curves across reactors of different scales, scale-up can be scientifically guided, reducing "scale-up effects" and ensuring a high degree of batch-to-batch consistency from laboratory to production scale
Moving Toward "Quality by Design" (QbD)
Real-time data makes it possible to establish dynamic correlations between Critical Process Parameters (CPPs) and Critical Quality Attributes (CQAs), thereby enabling a paradigm shift from end-point testing to whole-process controllability—this is the core of the QbD philosophy
Conclusion: Transparency Is the Essential Path for Biomanufacturing Upgrading
Bioprocesses are, in essence, dynamic metabolic networks of living cells operating within complex environments. To master them, we can no longer be content with speculating from outside the "black box".
Equipping bioprocesses with "electronic eyes" to achieve in-situ, real-time, multi-dimensional monitoring of critical biochemical parameters is no longer an optional enhancement but a critical cornerstone for improving yield, ensuring quality, reducing costs, and realizing green intelligent manufacturing. When these real-time data streams are combined with AI algorithms and intelligent control platforms, we enter a new phase of "AI-driven intelligent fermentation"—a system that can not only "see" the process but also "understand" and "predict" metabolic trends, autonomously making optimization decisions and achieving a closed loop from "sensing" to "cognition" to "regulation".
Post time: Jul-10-2026
