In our previous article, we discussed the oxygen uptake rate (OUR), carbon dioxide evolution rate (CER), and respiratory quotient (RQ) – the "metabolic stethoscopes" derived from exhaust gas analysis. These tools allow us to "hear" the cell's respiratory rhythm and metabolic shifts in real time.
But respiratory data are merely the surface. The deeper question is: Where do the carbon and nitrogen sources consumed by the cells actually go? Are they efficiently converted into our desired product, or are they wasted on excessive biomass growth or byproduct formation?
Today, we move from respiratory phenomena to the essence of metabolism, exploring the "mathematical language" of fermentation – carbon-nitrogen metabolism and material balance. This is the critical bridge that transforms online monitoring data into process optimization decisions.

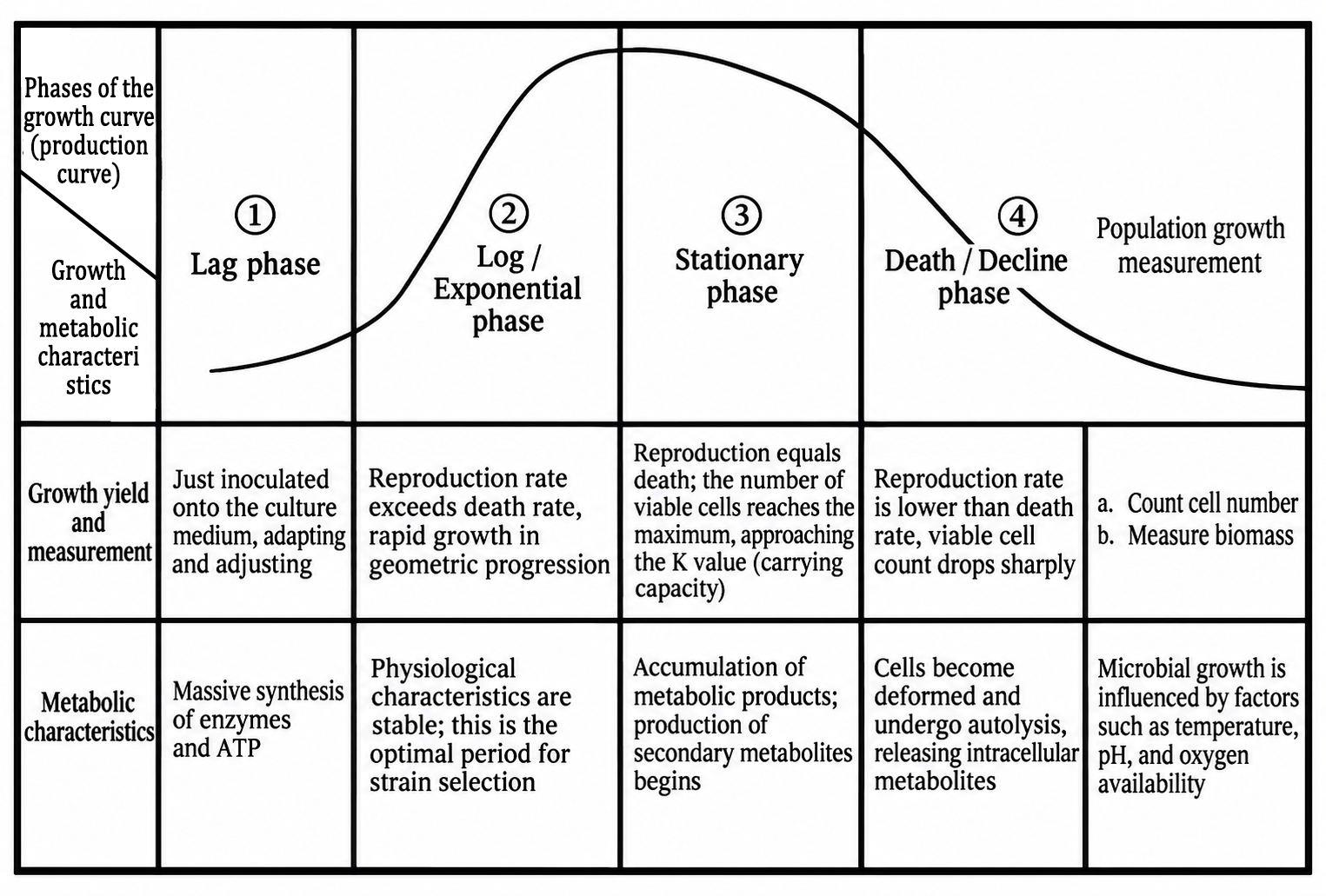

Growth Curve Review: A Navigation Map for Dynamic Processes
Before delving into carbon and nitrogen flows, we must revisit a fundamental framework: the typical microbial growth curve. In batch fermentation, cell growth typically goes through the lag phase, log phase, deceleration phase, stationary phase, and death phase. The core insight of this S-shaped curve is that fermentation is a dynamic, phased, non-steady-state process.
At each phase, the cell's physiological state, metabolic focus, and environmental requirements are distinctly different:
Log phase: Cells divide rapidly with vigorous metabolism. Carbon and nitrogen sources are primarily used for building new cells. The specific growth rate μ reaches its maximum (μ_max).
Deceleration and stationary phases: Growth slows or stops, and metabolic flow may shift toward product synthesis and accumulation (especially secondary metabolites such as antibiotics).
Therefore, any online parameter (including carbon and nitrogen consumption rates) must be interpreted in the context of its growth phase. A high glucose consumption rate observed during the log phase reflects normal growth demand, whereas the same high consumption during the stationary phase may indicate an abnormal shift in metabolic flux.

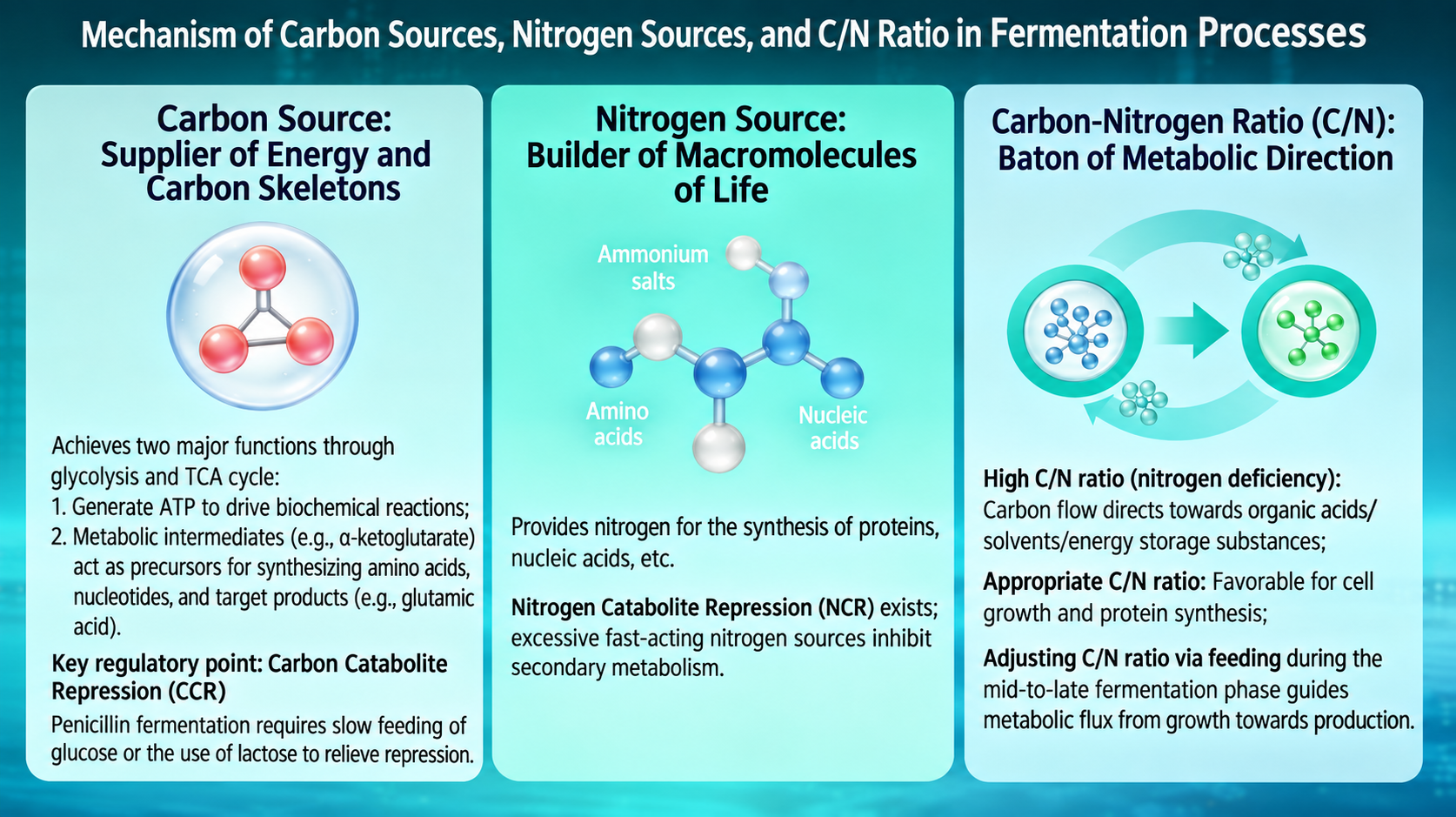

Carbon-Nitrogen Metabolism: The "Raw Material Flow" and "Baton" of the Cell Factory
Carbon Source: Supplier of Energy and Carbon Skeletons
Carbon sources (e.g., glucose) serve two major functions through glycolysis, the TCA cycle, and other pathways:
1) Energy generation (ATP) – driving all biochemical reactions;
2) Carbon skeleton provision – their metabolic intermediates (e.g., α-ketoglutarate) serve as precursors for amino acids, nucleotides, and target products (such as glutamic acid).
Key regulatory point – Carbon Catabolite Repression (CCR): When an easily utilizable carbon source (e.g., glucose) is in excess, it represses the production of secondary metabolite synthases. This is why, in penicillin fermentation, glucose must be fed slowly or lactose used instead, to relieve repression and initiate antibiotic production.
Nitrogen Source: Builder of Biological Macromolecules
Nitrogen sources (e.g., ammonium salts, amino acids) provide nitrogen for synthesizing proteins, nucleic acids, and more. Similarly, Nitrogen Catabolite Repression (NCR) exists, where excess rapidly assimilable nitrogen suppresses certain secondary metabolisms.
Carbon-to-Nitrogen Ratio (C/N): The "Baton" Directing Metabolic Direction
High C/N ratio (nitrogen relatively deficient): Carbon flow may shift more toward organic acids, solvents, or storage compounds.
Appropriate C/N ratio: Favors cell growth and protein synthesis.
Dynamic regulation: Adjusting the C/N ratio dynamically through feeding in the mid-to-late fermentation stage is a key method for steering metabolic flow from "growth" toward "production."
Connection to the respiratory quotient (RQ) from the previous issue: The RQ value indirectly reflects the metabolic pathway of the carbon source (complete oxidation RQ~1.0, ethanol fermentation RQ>1.0). When the C/N ratio or carbon source type is changed through feeding, real-time changes in RQ can provide early signals of metabolic flux switching.
Material Balance and Yield Coefficients: Quantifying Efficiency with "KPIs"
Having understood metabolic flow, we also need a precise ruler to measure conversion efficiency. This is where material balance and yield coefficients come in.
Material Balance Fundamentals
For any component in a fermenter (biomass X, substrate S, product P), the basic relationship is: Accumulation = Inflow – Outflow + Generation – Consumption. In batch fermentation, this simplifies to accumulation rate equals net generation rate.

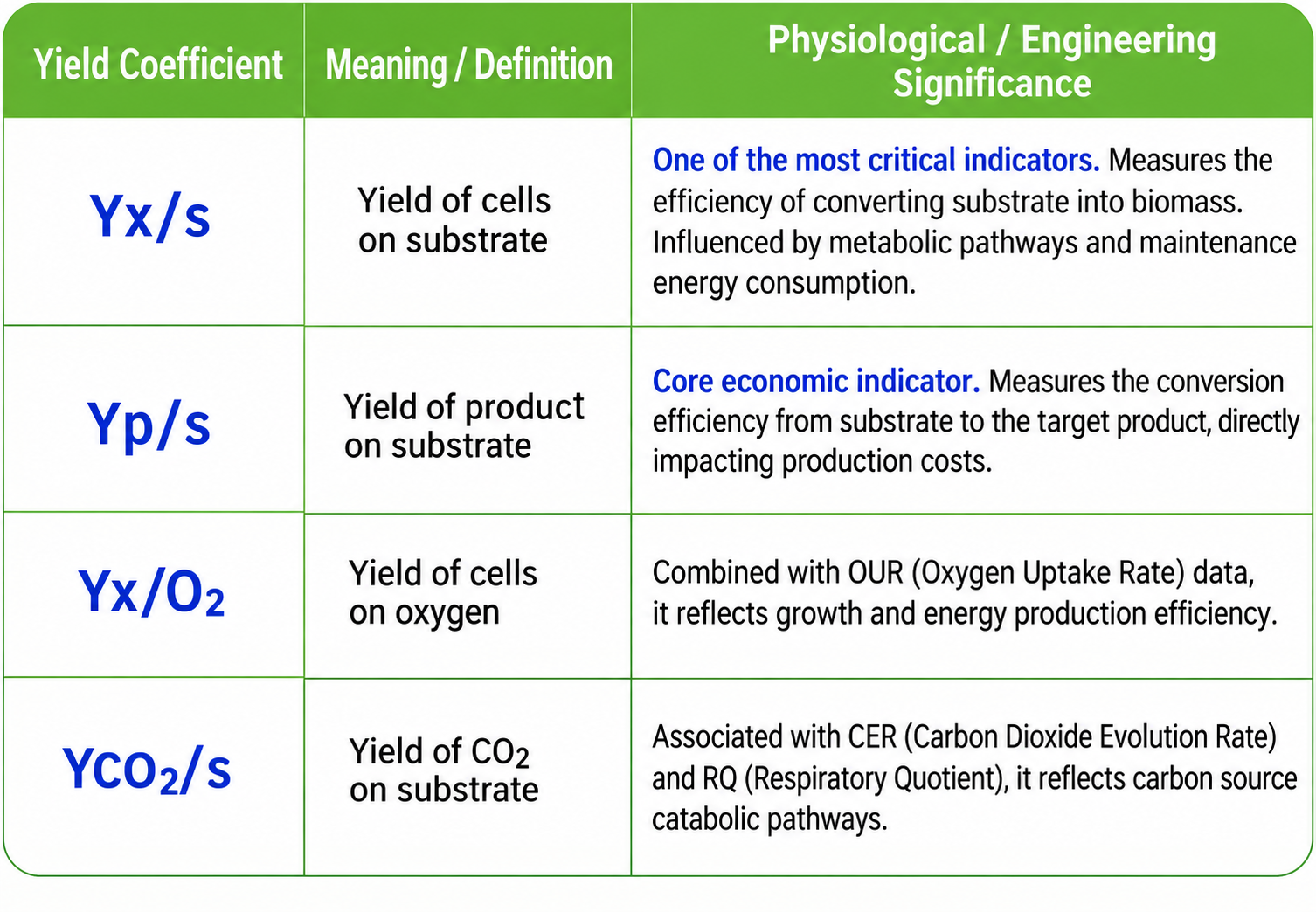

Core Yield Coefficients (Y)
The yield coefficient is the amount of biomass or product generated per unit of substrate consumed, serving as the core bridge connecting macroscopic substrate consumption to microscopic metabolic activity.
Theoretical yield vs. actual yield: Actual yield is always lower than the theoretical maximum calculated from biochemical reaction equations. The difference is primarily consumed by: 1) maintenance metabolism (maintaining basic cell viability); 2) synthesis of non-target byproducts; and 3) metabolic energy loss.
Therefore, one of the core objectives of process optimization is to narrow this gap through environmental control and strain improvement, bringing actual yield closer to the theoretical limit.
From Offline Reports to Online Navigation: Real-Time Material Balance
Traditionally, yield coefficients were a "post-mortem summary" after fermentation completion. Modern online monitoring technologies are turning them into a "real-time dashboard" for dynamic optimization.
Online substrate monitoring: Enzyme electrodes and near-infrared (NIR) spectroscopy provide real-time glucose and ammonium salt concentrations, enabling calculation of instantaneous consumption rates.
Online biomass and product monitoring: Capacitance, NIR, and Raman spectroscopy provide real-time estimates of biomass and product concentrations, yielding instantaneous generation rates.
Real-time yield monitoring: Combining the above data allows calculation of instantaneous or phase-specific yields. For example, if Yp/s is found to be continuously declining during the stationary phase, it may indicate declining cell synthesis capacity or activation of side pathways, requiring immediate strategy adjustment.
Integration with respiratory data: Online OUR and CER data enable online material balance verification. Through stoichiometric models, respiratory data can be used for "soft sensing" of growth rates and substrate consumption rates, cross-validating with direct measurements to promptly detect metabolic abnormalities or sensor malfunctions.
Conclusion: Connecting the Data, Perceiving the Essence
We have journeyed from respiratory metabolism (OUR/CER/RQ) to growth phase awareness, and then deeper into carbon-nitrogen metabolic flow and material balance. The core of this logical chain is: to interpret the various online-monitored "vital sign" data within the dynamic framework of cell physiology.
Only by doing so can we transcend isolated data points and truly perceive the "invisible" metabolic flows within the fermenter and the "intangible" conversion efficiency, enabling precise optimization decisions.
