01 Origins: The Classic Design from the University of Berlin (1930)
In 1930, Professor Marianus Czerny of the Physical Institute at the University of Berlin, together with his doctoral student Arthur Francis Turner, published a landmark paper that first proposed the Czerny-Turner (C-T) spectrometer configuration, named after the two researchers. This design was not conceived in a vacuum but was an improvement upon the Ebert design proposed by Hermann Ebert in 1889 — Ebert had attempted to replace conventional lens collimators and camera lenses with a single concave spherical mirror to eliminate chromatic aberration, yet coma was not completely eliminated because the grating tilt disrupted the symmetry of the optical path.

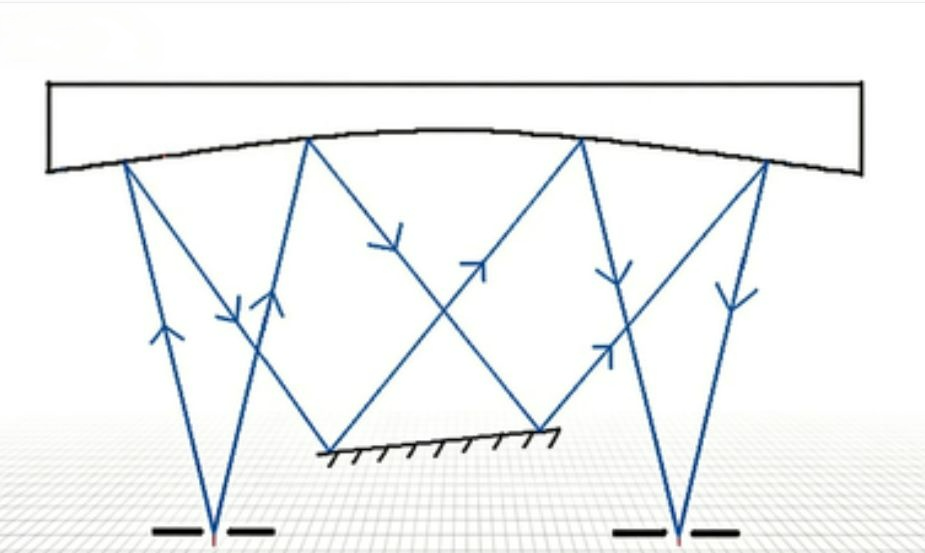

Fastie-Ebert: composed of a single large spherical mirror and a plane diffraction grating.
The key innovation by Czerny and Turner was to split Ebert's single large concave mirror into two separate spherical mirrors: one serving as the collimator and the other as the camera mirror. This separated design not only eliminated coma but also offered greater design flexibility — the two mirrors could be fabricated with different dimensions, different radii of curvature, and could even be made into toroidal mirrors to achieve astigmatism-free imaging. However, this invention remained largely forgotten for more than two decades after its publication. It was not until 1952, when William G. Fastie rediscovered the Ebert system (later termed the Ebert-Fastie system), that the academic community gradually came to recognize that the Czerny-Turner design offered greater opportunities for aberration correction than the Ebert-Fastie system. It took several more years for the advantages of the C-T system to be fully appreciated, ultimately making it the dominant configuration in modern spectrometers.
02 M-Type: The Classic Unfolded Optical Path

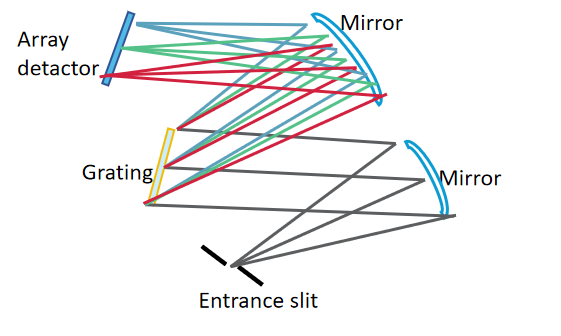

M-type C-T optical path diagram
The M-type is the most classic layout of the Czerny-Turner configuration, also known as the basic C-T optical structure, named for its optical path which, when unfolded, closely resembles the letter "M". In this configuration, the entrance slit, collimator mirror, grating, focusing mirror, and detector are arranged in a straight line, forming a clear optical path.
The core advantage of the M-type lies in its excellent resolution consistency. Theoretical calculations and experiments demonstrate that the M-type exhibits relatively small resolution variation across the full spectral range, approximating a flat distribution, far superior to the "V"-shaped variation of the crossed type. This means that over a broad spectral range, the M-type can maintain more consistent resolution performance. Additionally, the M-type has a natural advantage in astigmatism optimization, capable of correcting astigmatism to very low levels, while its stray light performance is also slightly superior to that of the crossed type.

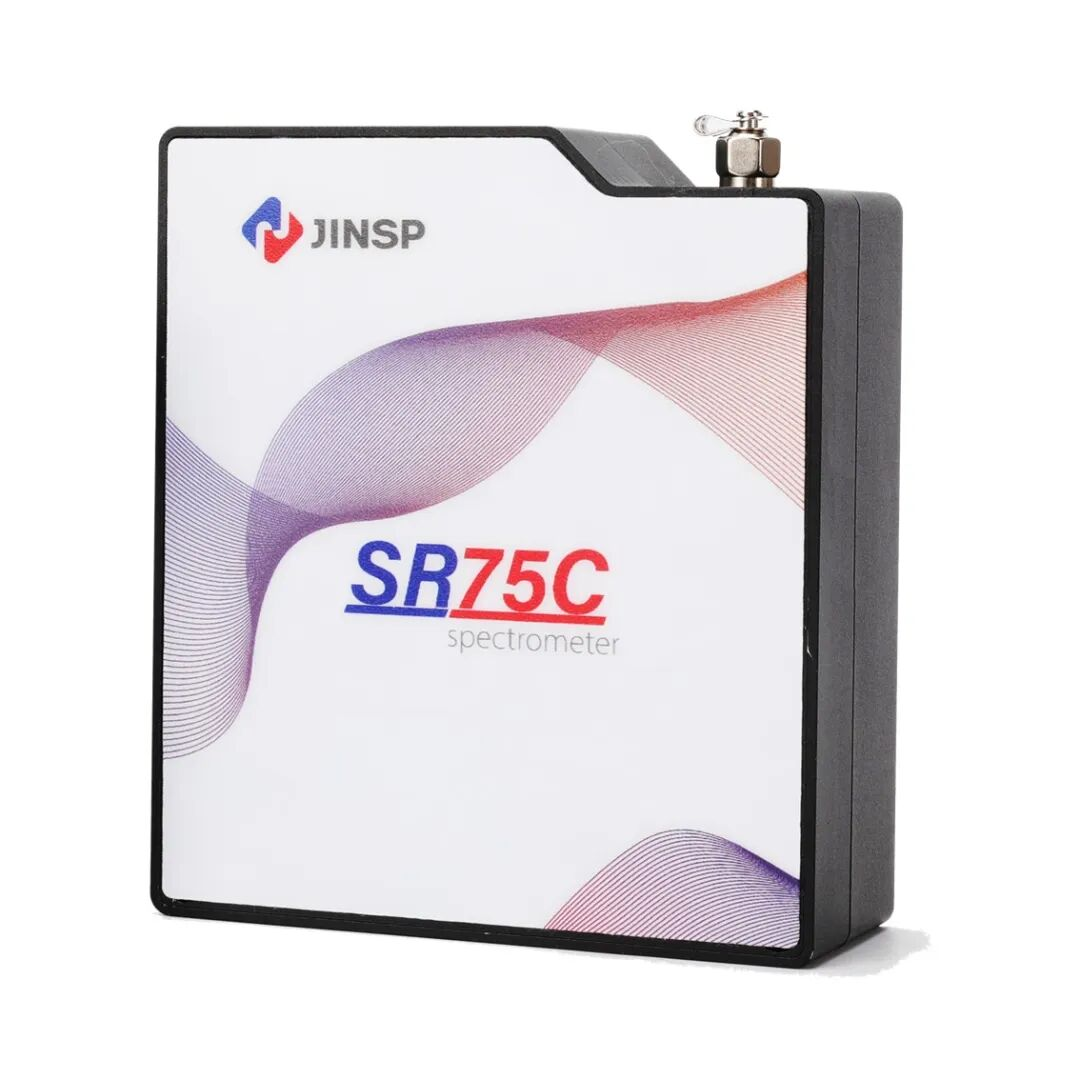

Representative Product: JINSP SR75C fiber optic spectrometer employs an M-type optical path, achieving an optical resolution of up to 0.15 nm in the visible 500–600 nm range.
03 Crossed Type: The Revolution of Folded Optical Path

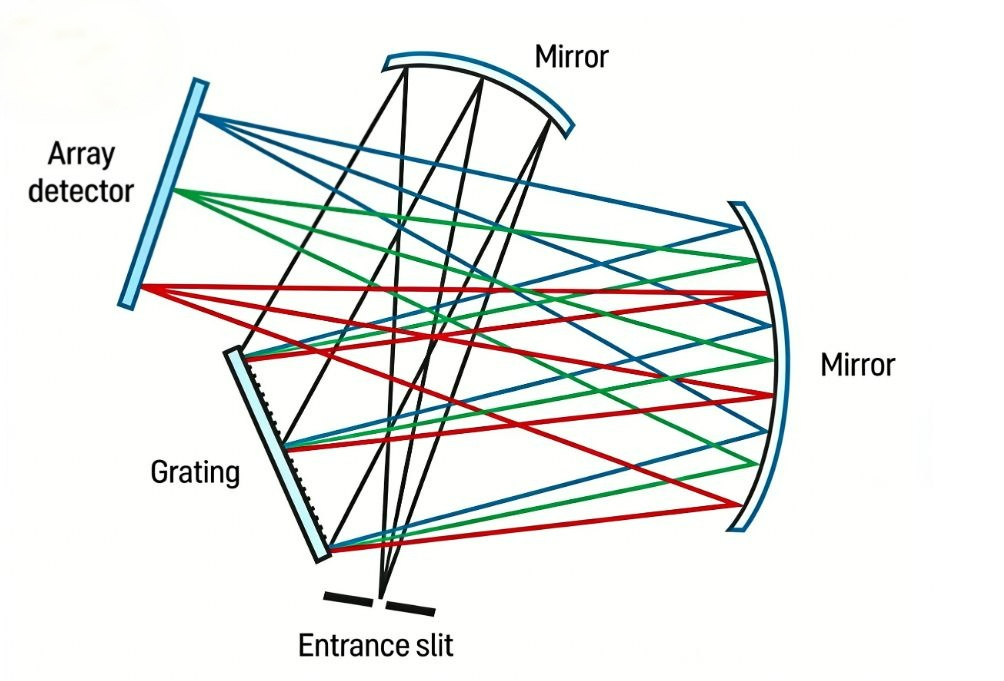

Crossed C-T optical path diagram
The crossed type (Crossed C-T) is a folded optical path design evolved from the M-type. In this configuration, the two concave mirrors are arranged symmetrically on the left and right sides relative to the plane grating, but the optical path is "folded" — the incident beam and the exit beam intersect spatially. This design greatly improves space utilization, making the instrument structure more compact.
The birth of the crossed type is closely linked to the development of fiber optic spectrometers. In the late 20th century, with the maturation of fiber optic technology, the demand for miniaturized and portable spectrometers surged dramatically. The crossed C-T configuration, owing to its compact footprint, became the ideal choice for small fiber optic spectrometers. However, the crossed type also has inherent limitations: its resolution is highest at the central wavelength and gradually decreases toward the edges, exhibiting a "V"-shaped distribution; it is also relatively weaker in astigmatism correction. Nevertheless, by inserting baffles into the optical path, the crossed type offers unique advantages in stray light suppression, which is critical for miniaturized designs.

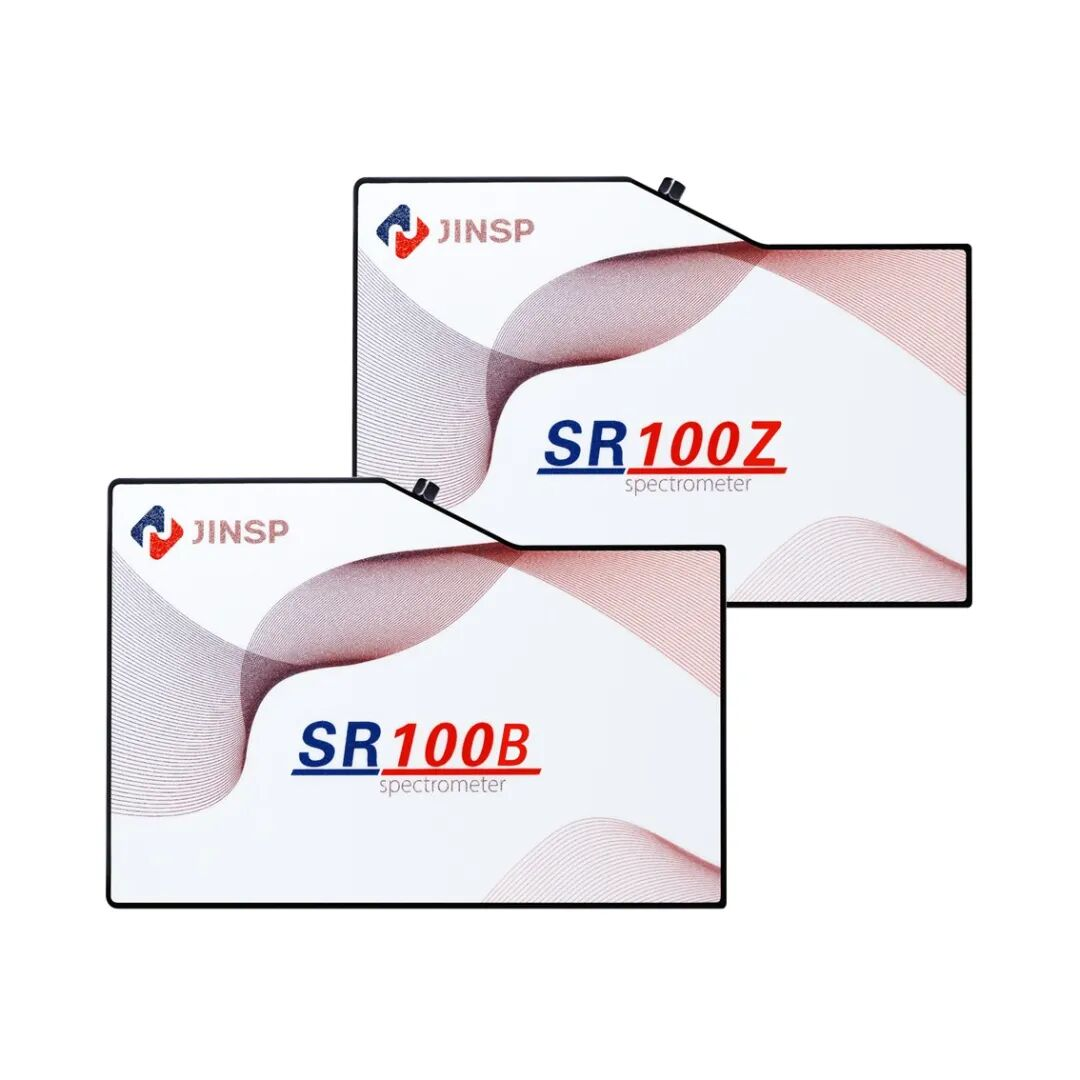

Representative Products: JINSP products including SR50C and SR100B/Z/Q all adopt crossed asymmetric C-T configurations, enabling spectrometers to transition from the laboratory to industrial field sites and portable applications.
04 Technological Evolution: From Symmetric to Asymmetric, from Spherical to Freeform
Entering the 21st century, the design theory of Czerny-Turner configurations has continued to deepen. In the 1960s, Shafer was the first to use asymmetric structures to correct coma at specific wavelengths, proposing the well-known Shafer equations. Rosendahl and Shafer further theoretically proved that compensation lenses or toroidal mirrors could be used to suppress astigmatism.
Modern C-T configuration development exhibits two major trends:
The Proliferation of Asymmetric Designs
Traditional C-T configurations mostly adopted symmetric layouts, but modern designs tend toward asymmetric structures. By adjusting the radii of curvature, off-axis angles, and relative positions of the two mirrors, balanced correction of coma and astigmatism can be achieved over a broad spectral range. Studies have shown that in crossed-type configurations, optimizing asymmetric parameters can significantly improve the "V"-shaped resolution distribution, and can even achieve a nearly flat resolution curve.
The Application of Freeform Surface Technology
To eliminate the inherent spherical aberration of spherical mirrors, researchers have begun exploring the application of parabolic mirrors or freeform surfaces. Although these technologies have not yet been widely adopted due to high fabrication costs, they represent the future direction of C-T configuration development.
05 Dual-Track Parallelism: Differentiation and Integration in Application Fields

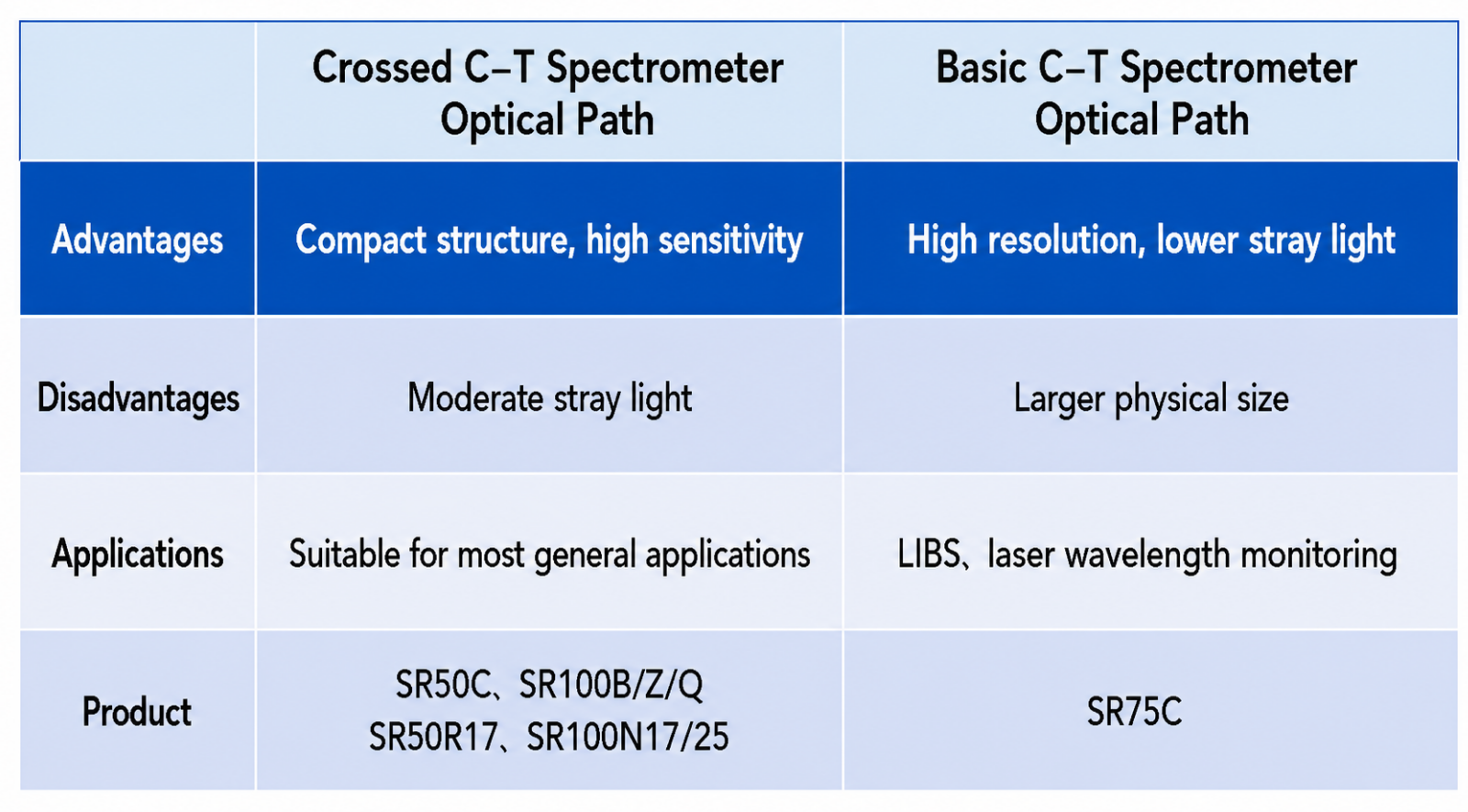

After nearly a century of development, the M-type and crossed-type C-T configurations have formed a clear division of labor at the application level:
It is worth noting that the two configurations are not completely separate. Some high-end spectrometers have begun to integrate the advantages of both — for example, adopting the high-resolution characteristics of the M-type while incorporating the folding concept of the crossed type to achieve a moderately compact design. Furthermore, whether M-type or crossed type, modern C-T spectrometers commonly employ array detectors (such as CCD and CMOS) to replace traditional scanning exit slits, enabling rapid, high-sensitivity spectral measurements.
Conclusion
From the classic 1930 paper by Czerny and Turner at the University of Berlin, to its rediscovery in the 1950s, and through to the proliferation of miniaturized fiber optic spectrometers in the 21st century, the Czerny-Turner configuration has undergone nearly a century of evolution. The M-type and crossed type, as the two primary forms of this configuration, respectively represent two distinct design philosophies: "performance first" versus "compactness first". The M-type, with its superior resolution consistency, maintains a stronghold in the high-end laboratory market, while the crossed type, leveraging its compact footprint, has开拓ed emerging application fields such as portable devices and industrial online monitoring.
As embodied by Arthur Francis Turner's receipt of the Frederic Ives Medal in 1971, this configuration is not merely an optical design but a significant milestone in the history of spectroscopic instrumentation. With the development of freeform surface fabrication technologies, novel detectors, and computational optics, the Czerny-Turner configuration — whether M-type or crossed type — will continue to play a central role in future spectroscopic technologies.
References:
[1] CZERNY M, TURNER A F. Über den Astigmatismus bei Spiegelspektrometern[J]. Zeitschrift für Physik, 1930, 61(11-12): 792-797.
[2] JAMES J F. Spectrograph design fundamentals[M]. Cambridge: Cambridge University Press, 2007.
[3] Turner A F. Biography[J]. Journal of the Optical Society of America, 1972, 62(1): 1-2.
