RS2601MG Series Metallurgical Flue-Gas Analyzer
Fast detection: 1-second response time. Solves the problem of delayed dynamic process control caused by slow response of traditional multi-sensor combined measuring systems.
Wide quantitative range: Quantitative measuring range from 0.1 % to 100 %.
Improved production safety: Accurate direct measurement of H2, eliminates failure of equipment-fault early-warning caused by inaccurate hydrogen detection in conventional technologies.
Reduced operation-and-maintenance cost: No carrier gas or calibration gas required, resulting in nearly-zero operating consumption cost.

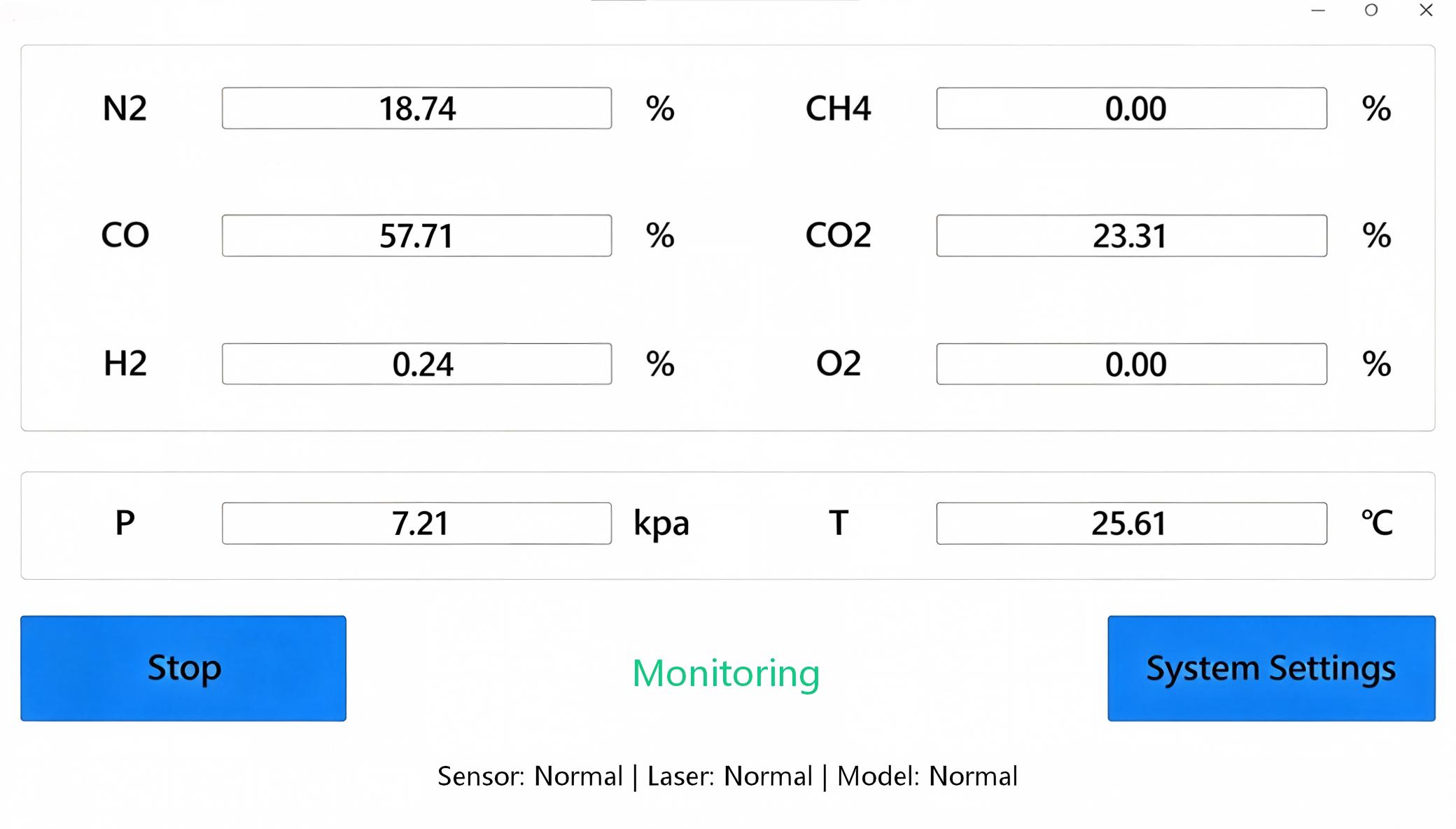

Lower deployment cost: Single instrument fulfills simultaneous detection of N2, H2, O2, CO, CO2, CH4.
|
Item |
RS2601MG |
RS2601MGPAT |
|

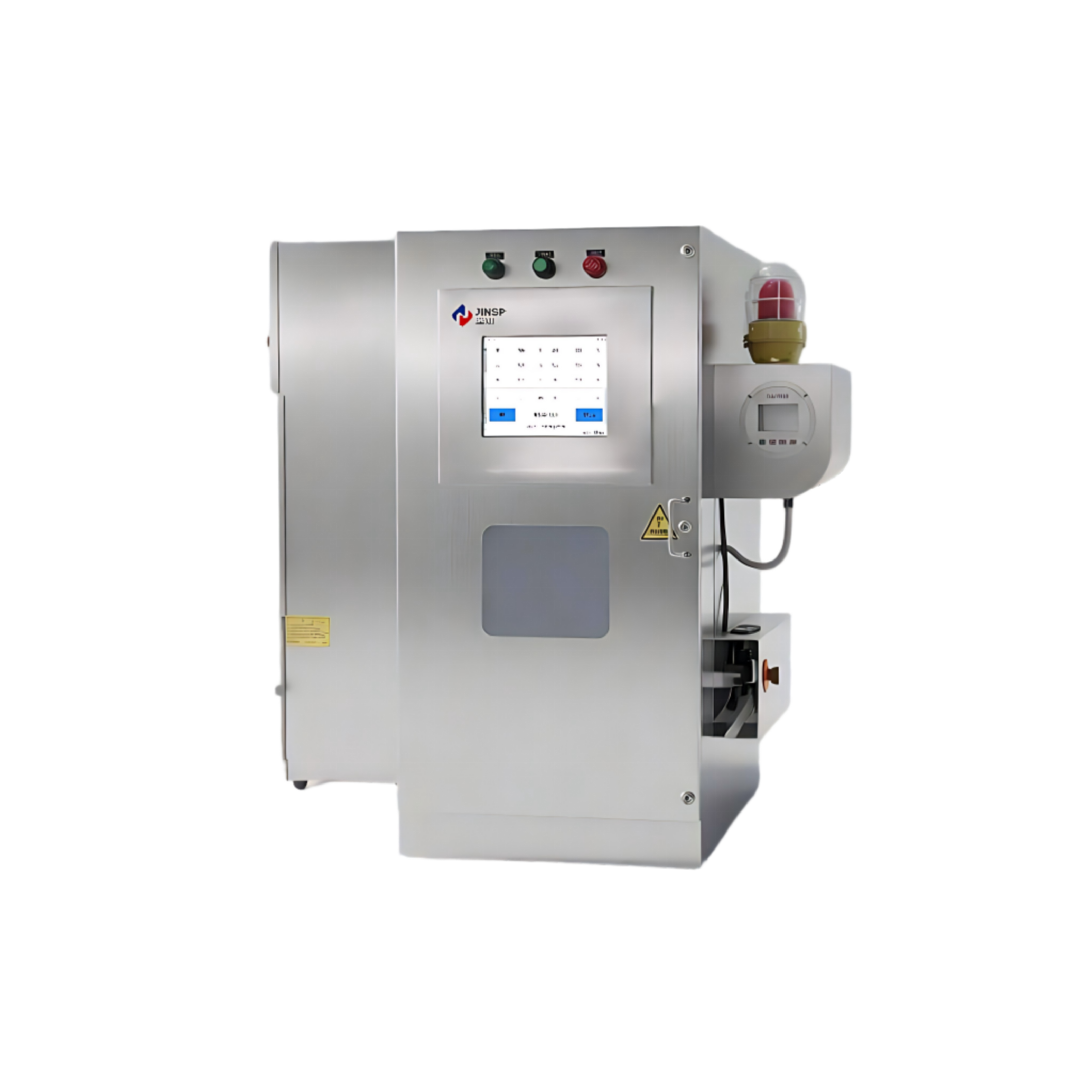

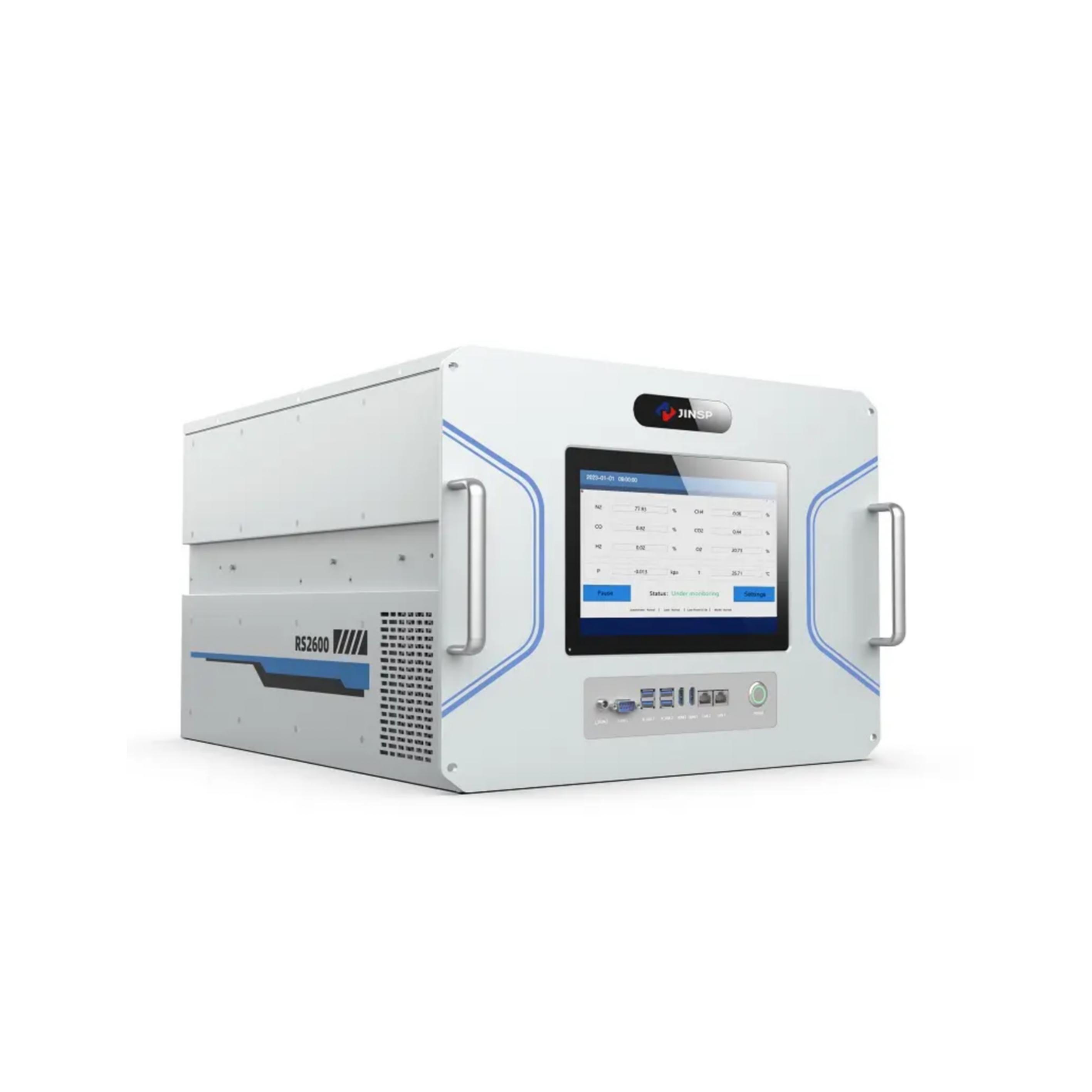

Appearance |
|
|
|
Sample-gas Pressure |
≤ 1 MPa |
≤ 1 MPa |
|
Sample-gas Temperature |
Ambient temperature |
Ambient temperature |
|
Sample-gas Flow Rate |
0.5-15 L/min |
0.5-15 L/min |
|
Gas-path Connector |
6 mm ferrule fitting |
6 mm ferrule fitting |
|
Power Supply |
100-240 VAC, 50-60 Hz |
100-240 VAC, 50-60 Hz |
|
Ambient Operating Temperature |
0 ℃ ~ 35 ℃ |
-20 ℃ ~ 50 ℃ |
|
Ambient Relative Humidity |
0-90 %RH |
0-90 %RH |
|
Overall Dimensions |
600 mm (D) × 485 mm (W) × 350 mm (H) |
800 mm (D) × 900 mm (W) × 1300 mm (H) |
|
Weight |
40 kg |
250 kg |
|
Explosion-proof Rating |
- |
Ex db eb ib mb pxb IIC T4 Gb |
|
Data Output |
RS232/RS485 DB9 |
RS232/RS485 DB9 |
