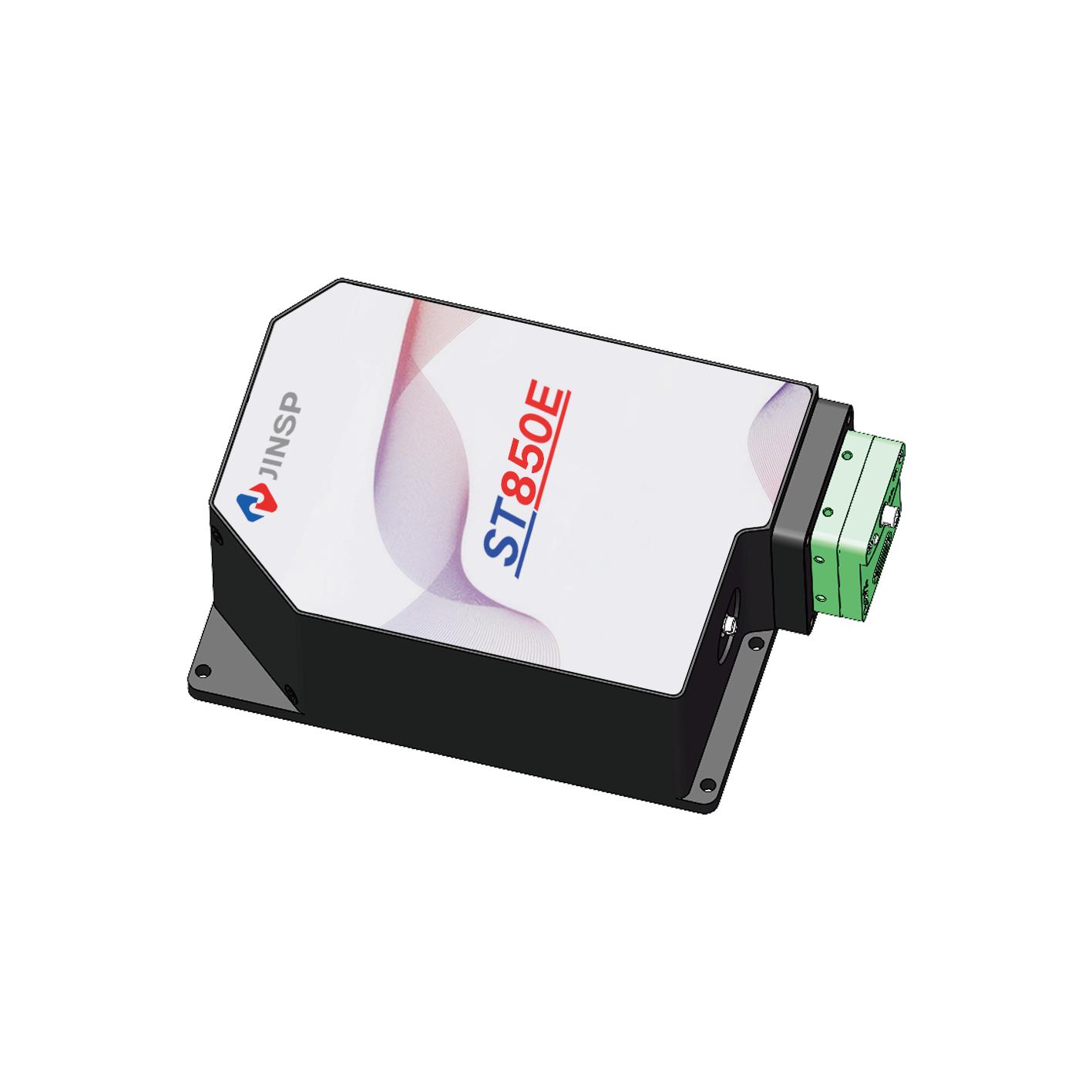

ST850E OCT Spectrometer

ST850E OCT Spectrometer Featured Image

Short Description:

The JINSP ST850E spectrometer is a high-speed, stable commercial OCT (Optical Coherence Tomography) spectrometer. It is capable of high-resolution, high signal-to-noise ratio, and large imaging depth three-dimensional tomographic imaging, making it widely used in industrial inspection applications such as laser welding.

The ST850E spectrometer features a Camera Link interface, enabling a maximum line scan rate of 250 kHz.

Send email to us

Product Detail

Product Tags

Application fields

● Metal Cutting Inspection

● Electronic Display Flatness Inspection

● Weld Pool Inspection

● Multi-layer Paint Uniformity Inspection

Technical Characteristics

● High SNR, High Resolution

Efficient VPH Grating, Optical Resolution Near the Diffraction Limit

● Rapid Processing

Camera link Interface, Capable of Achieving Maximum Line Scan Rates of 250kHz

图片(1)

● Deep Imaging

Excellent Roll-off Performance, Enabling Deeper Layer Imaging

● High Maturity

Stable and Proven Technology, No Frequent Calibration Required

图片(2)

● Customization Support

Wavelength Range and Camera Can Be Customized According to Needs
OCT System for Weld Seam Penetration and Morphology Measurement

（1） Real-time 2D Scanning for High-precision Hole Depth Measurement

图片(3)

微信图片_2025-09-29_144540_516

（2）3D Scanning, Comprehensive Monitoring of Weld Pool Morphology

图片(4)

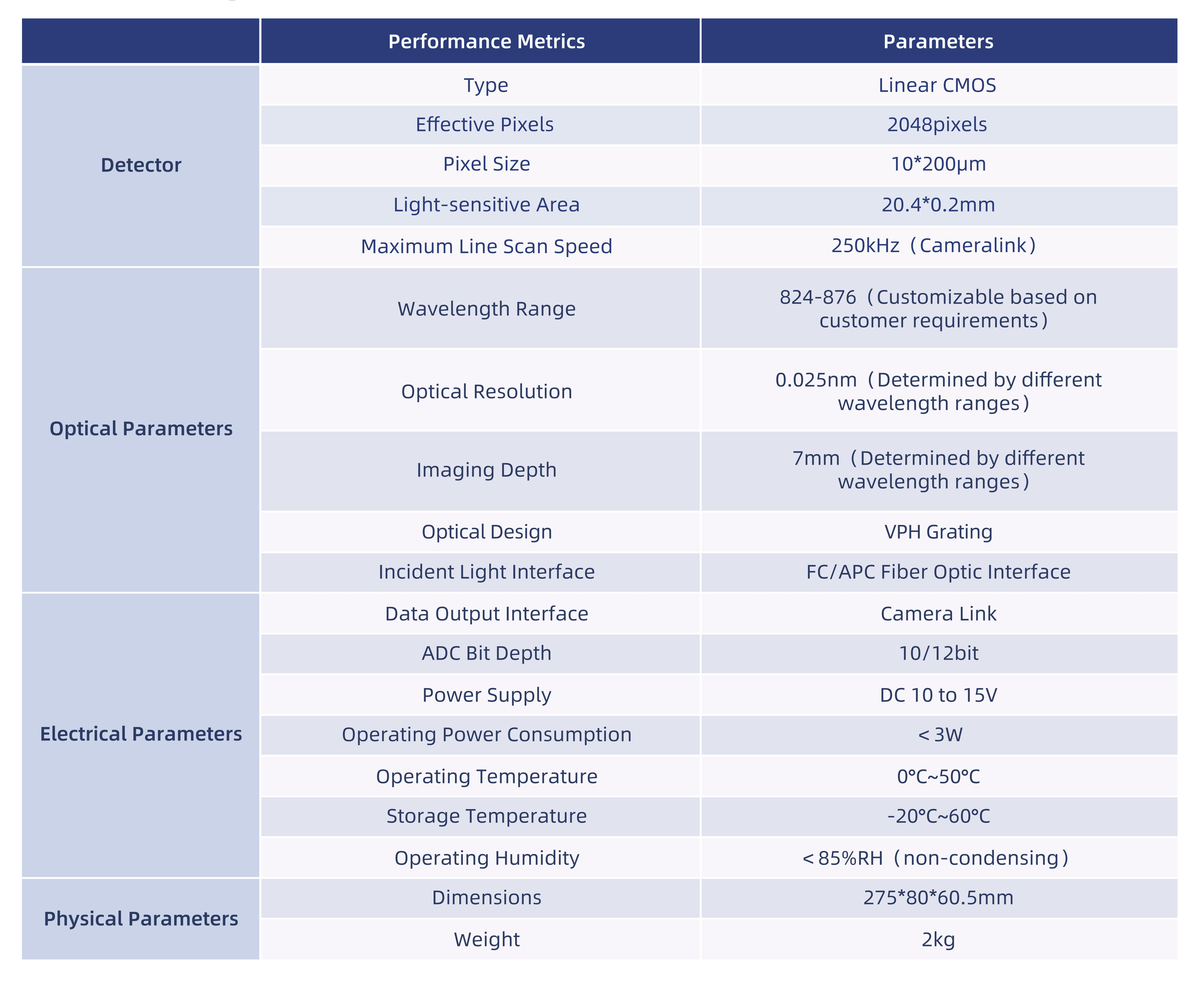

Specifications

Brochure JINSP OCT SPECTROMETER-ST850E 241224 EN_04

Product Videos
